PLAN 1060-114
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 24'
Height : 18' 6"
Width : 42'
Area
Main Floor : 1008 sq/ft
Ceiling
Main Ceiling : 10'
Roof
Primary Pitch : 8/12
Roof Framing : Stick
Exterior Wall Framing
Framing : 2 x 4
Outdoor Spaces
Covered Rear Porch
More
Economical To Build
Suited For Vacation Home
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

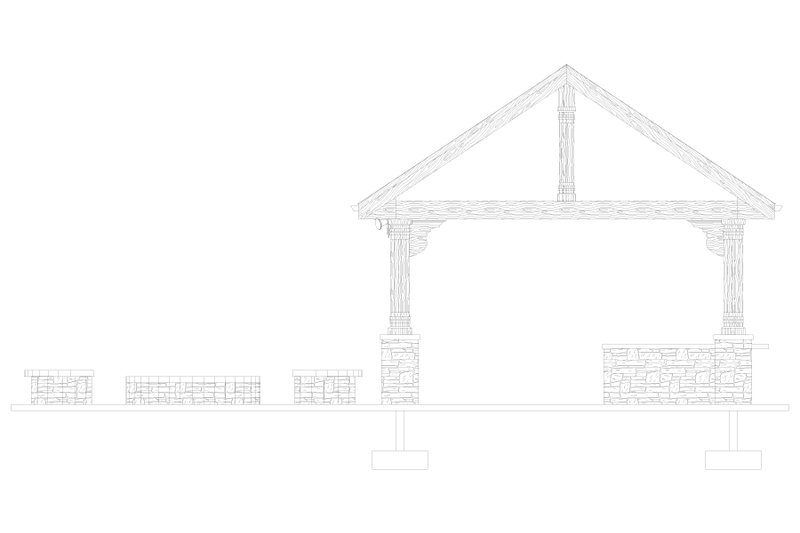

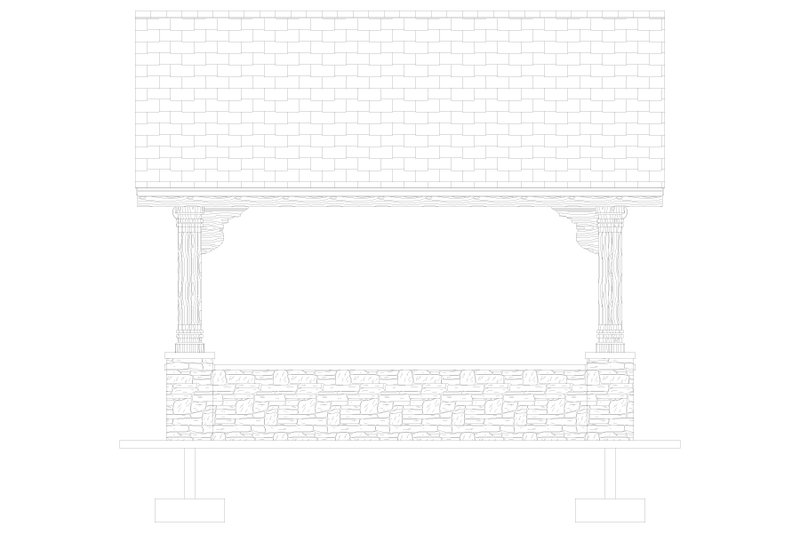

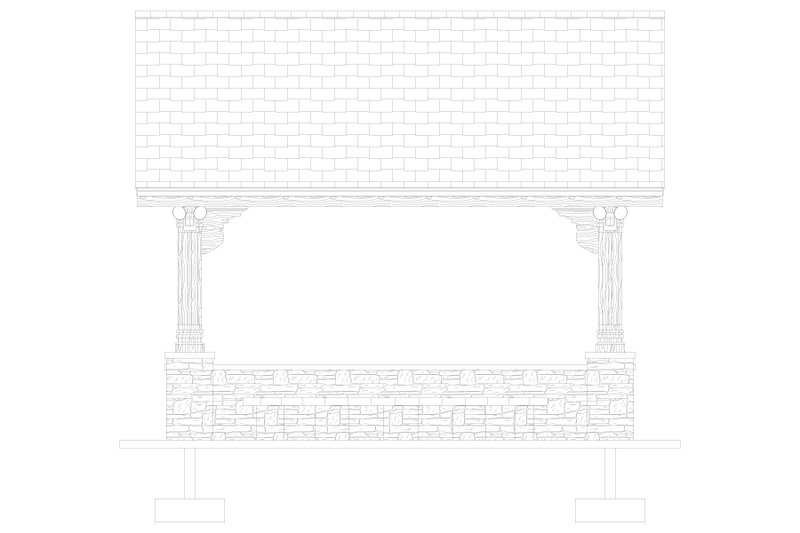

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$280.00
$340.00
$440.00
$600.00
$700.00
Foundation
$0.00
$200.00
$200.00
$200.00
Framing
$0.00
$140.00
$140.00
Additional Options
$156.00
$132.00
$236.00
$132.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
