Plan Description
This contemporary vacation/recreation design is 1024 sq ft and has a great room with kitchen and a bathroom.
Floor Plans

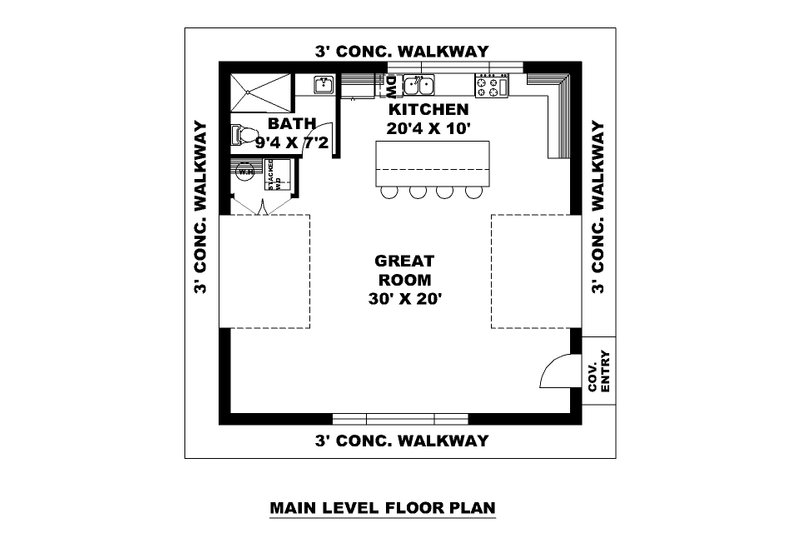

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 32'
Height : 26' 9"
Width : 32'
Area
Main Floor : 1024 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : Bathroom ceiling height is 8'
Main Ceiling : 21'
Roof
Roof Framing : Engineered roof deck trusses
Exterior Wall Framing
Framing : ICF
Kitchen Features
Eating Bar
Additional Room Features
Play Flex Room
Lot Characteristics
Suited For Corner Lot
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
