PLAN 140-198
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description
Pavilion/Restrooms. This plan features 2 half baths.
Floor Plans

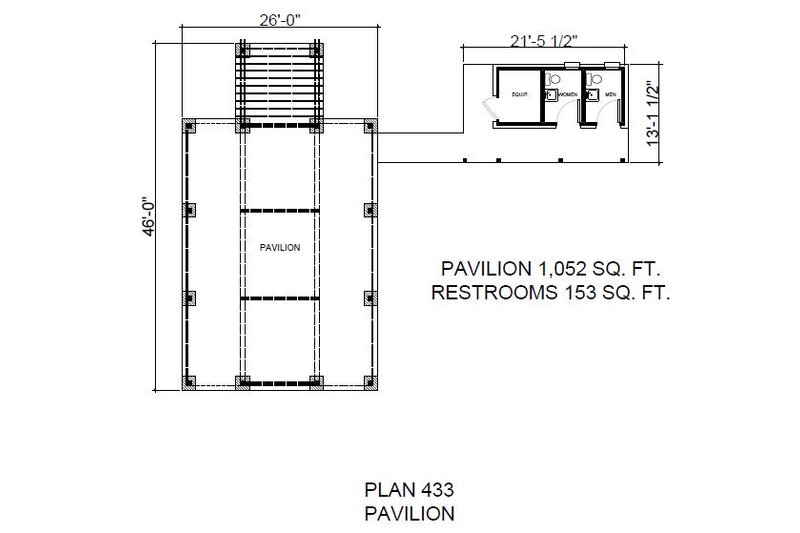

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 46'
Height : 18' 6"
Width : 26'
Area
Main Floor : 1052 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 17' 10"
Roof
Primary Pitch : 12/12
Lot Characteristics
Suited For View Lot
Outdoor Spaces
Breezeway
More
Additional Half Bath
What's Included In This Plan Set
- Cover page
- Elevations set to 1/4" scale
- Dimensioned Floor plans set to 1/4" scale
- Roof plan: Overhead plan shows peaks, valleys and roof pitch
- Building Sections Interior Elevations: Cabinet and millwork details.
- Electrical floor plan layout
- Foundation plan
- General notes and details.
