PLAN 70-109
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description
This traditional design floor plan is 1337 sq ft and has 2 bedrooms and 1 bathrooms.
Floor Plans

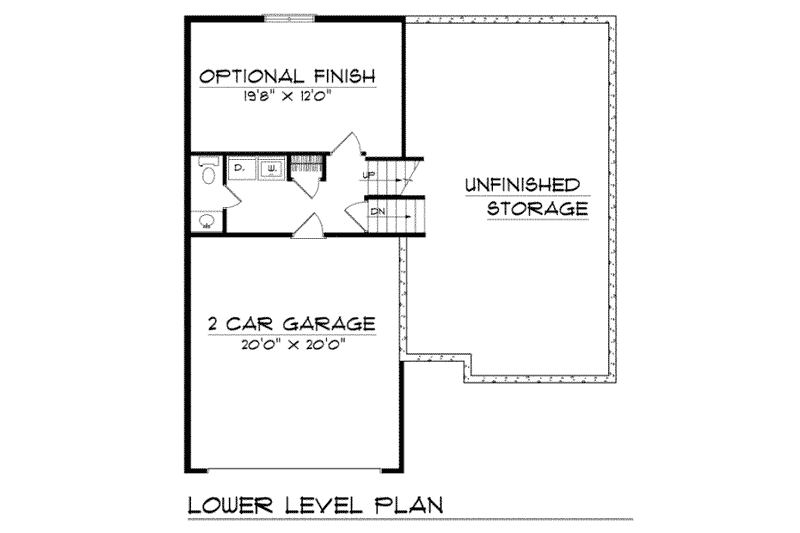

Floor Plan - Lower Floor

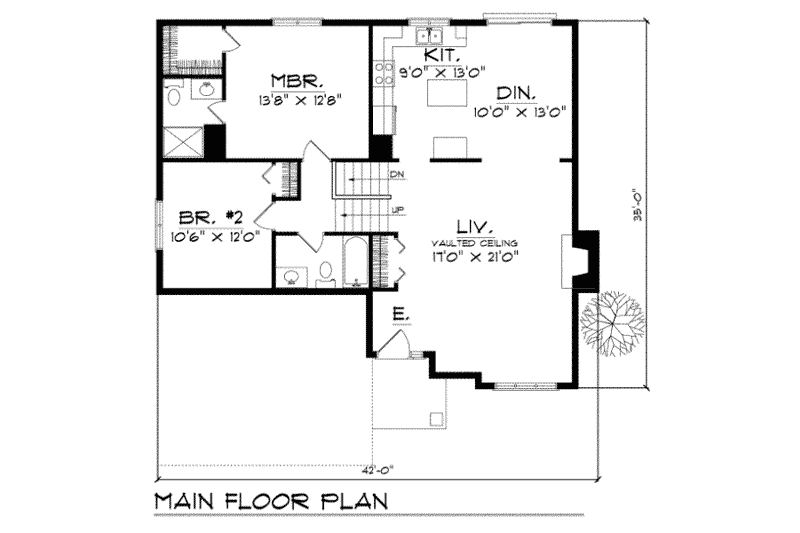

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 42' 4"
Height : 25'
Width : 42'
Area
First Floor: 684 sq/ft height 8'
Second Floor: 523 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x6
Bedroom Features
Walk In Closet
Additional Room Features
Storage Area
Unfinished Future Space
Lot Characteristics
Suited For Narrow Lot
Rooms
Bedroom 2:
132 sq/ft width 11' x depth 12'
Dining Room:
130 sq/ft width 10' x depth 13'
Kitchen:
117 sq/ft width 9' x depth 13'
Living Room:
220 sq/ft width 11' x depth 20'
Master Bedroom:
182 sq/ft width 14' x depth 13'
What's Included In This Plan Set
- Cover sheet with front rendering
- Foundation and floor plans at 1/4" = 1' scale

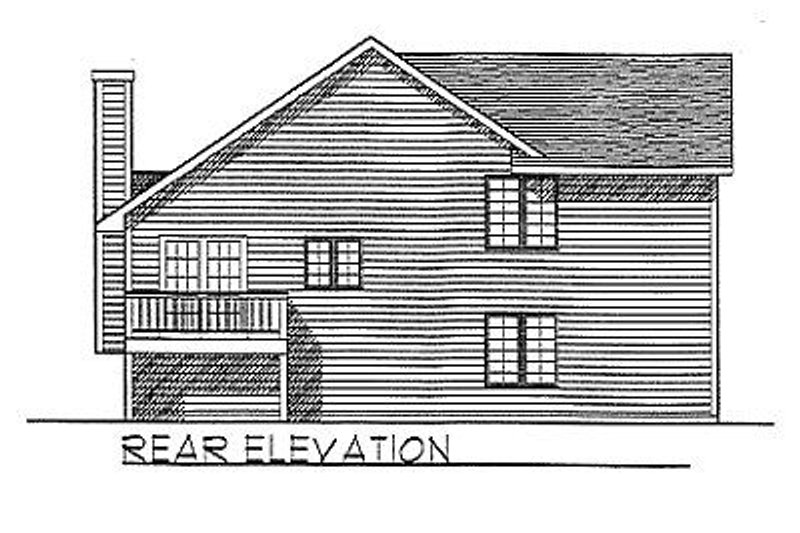

- Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
- Building sections and details as required to construct the individual design
- Interior elevation of cabinets at 1/4" = 1' scale
- Roof plans
- Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
- Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
- Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
