PLAN 20-343
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 50'
Height : 25'
Width : 62'
Area
First Floor: 1891 sq/ft
Garage: 504 sq/ft
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Asphalt
Secondary Pitch : 10:12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Bedroom Features
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Additional Room Features
Den Office Study Computer
Great Room Living Room
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch

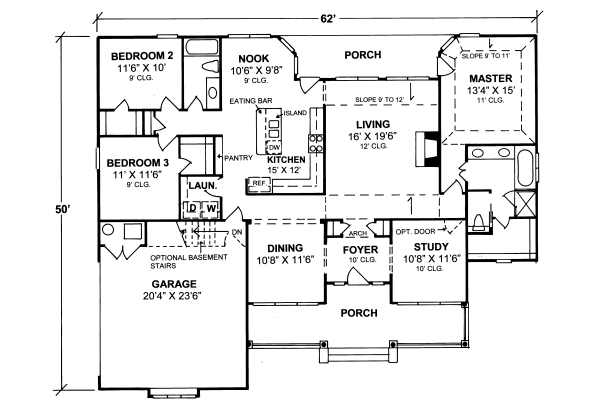

Rooms
Bathroom 2:
50 sq/ft width 5' x depth 10'
Bedroom 2:
115 sq/ft width 11' 6" x depth 10'
Bedroom 3:
126 sq/ft width 11' x depth 11' 6"
Dining Room:
122 sq/ft width 10' 8" x depth 11' 6"
Foyer:
54 sq/ft width 9' x depth 6'
Garage:
477 sq/ft width 20' 4" x depth 23' 6"
Kitchen:
180 sq/ft width 15' x depth 12'
Kitchen Island:
19 sq/ft width 3' x depth 6' 6"
Living Room:
312 sq/ft width 16' x depth 19' 6"
Master Bathroom:
96 sq/ft width 9' 8" x depth 10'
Master Bedroom:
199 sq/ft width 13' 4" x depth 15'
Master Closet:
56 sq/ft width 9' 8" x depth 5' 10"
Nook:
101 sq/ft width 10' 6" x depth 9' 8"
Pantry:
5 sq/ft width 5' x depth 1'
Study:
122 sq/ft width 10' 8" x depth 11' 6"
Utility Room:
31 sq/ft width 5' 4" x depth 6'
What's Included In This Plan Set
- Cover Page: Each home plan features the front elevation and informative reference sections including general notes and design criteria.

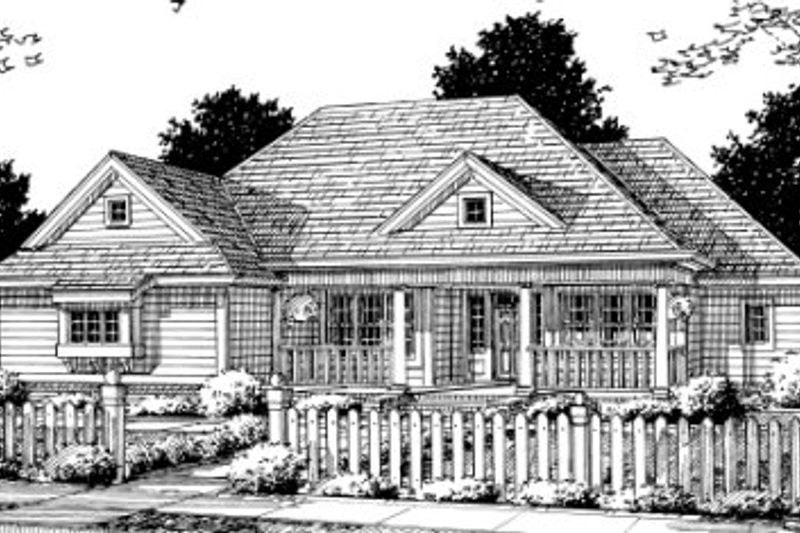

- Elevations: Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys, ridges and framing.
- Foundations: Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
- Main Level Floor Plan: Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as ceiling treatments and header locations.
- Second Level Floor Plan: Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
- Interior Elevations: Kitchen cabinet elevations are drawn.
- Electrical and Sections: The electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall, stair, brick sections are provided to further explain construction of these areas.
Plan Set
$1005.00
$1300.00
Foundation
$0.00
$195.00
$195.00
Framing
$0.00
$195.00
Additional Options
$195.00
$165.00
$295.00
$39.00
$165.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
