PLAN 513-2063
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description
Floor Plans

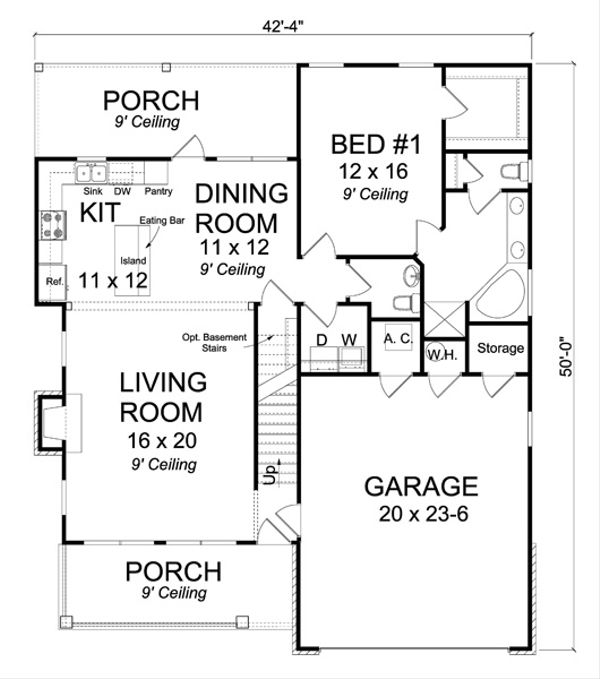

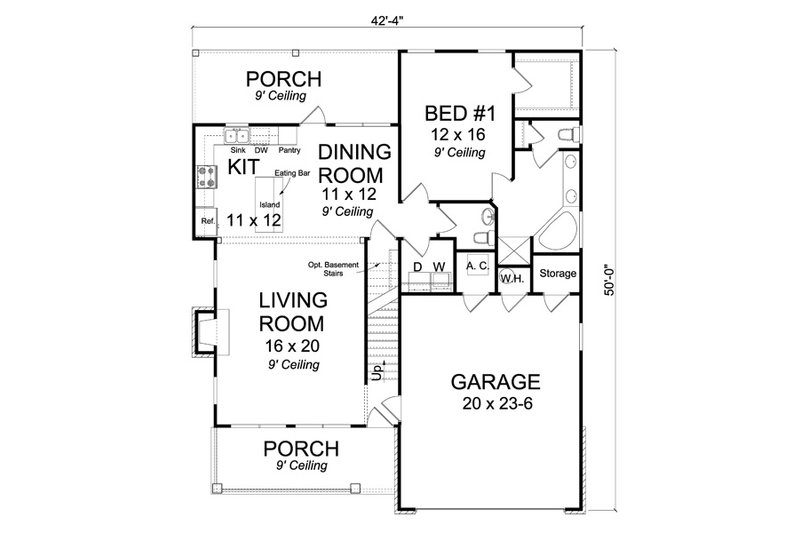

Floor Plan - Main Floor

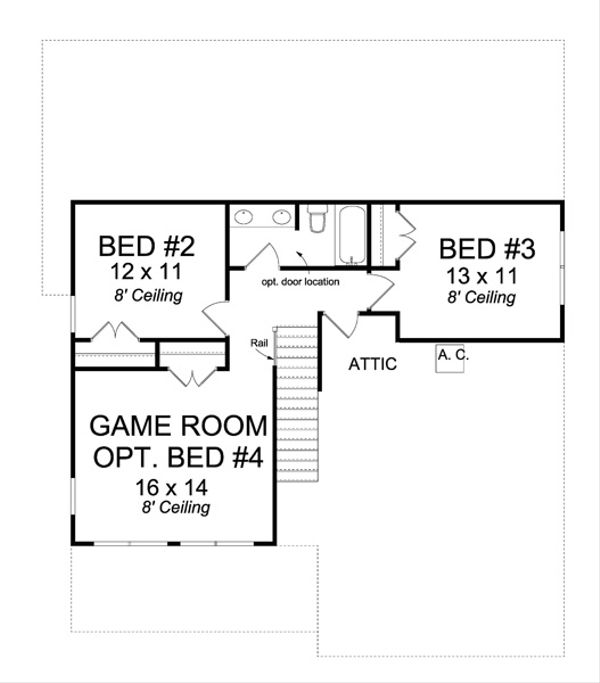

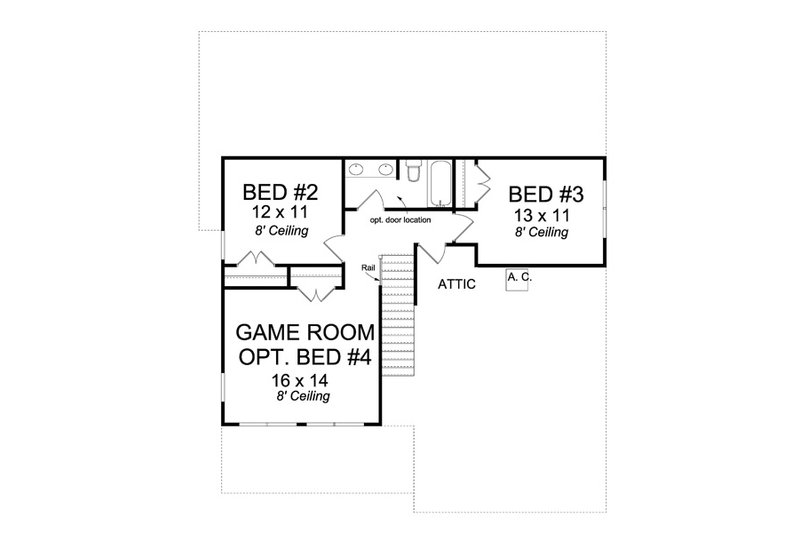

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 50'
Height : 26'
Width : 42' 4"
Area
First Floor: 1163 sq/ft height 9'
Garage: 526 sq/ft height 9'
Second Floor: 729 sq/ft height 8'
Ceiling
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 9:12
Roof Framing : stick
Roof Load : 30
Roof Type : Shake
Secondary Pitch : 8:12
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : 2x4
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Play Flex Room
Garage Features
Front Entry Garage
Lot Characteristics
Suited For Narrow Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
Bathroom 3:
width 11' 4" x depth 10'
Bedroom 2:
width 12' x depth 11'
Bedroom 3:
width 13' x depth 11'
Dining Room:
width 11' x depth 12'
Gameroom:
width 16' x depth 14'
Garage:
526 sq/ft width 20' x depth 23' 6"
Half Bath:
width 5' x depth 5'
Kitchen:
width 11' x depth 12'
Living Room:
width 16' x depth 20'
Master Bathroom:
width 9' x depth 14'
Master Bedroom:
width 12' x depth 16'
Master Closet:
width 7' x depth 7'
Porch - Front:
140 sq/ft
Porch - Rear:
179 sq/ft
What's Included In This Plan Set
- Cover Page: Each home plan features the front elevation and informative reference sections including general notes and design criteria.

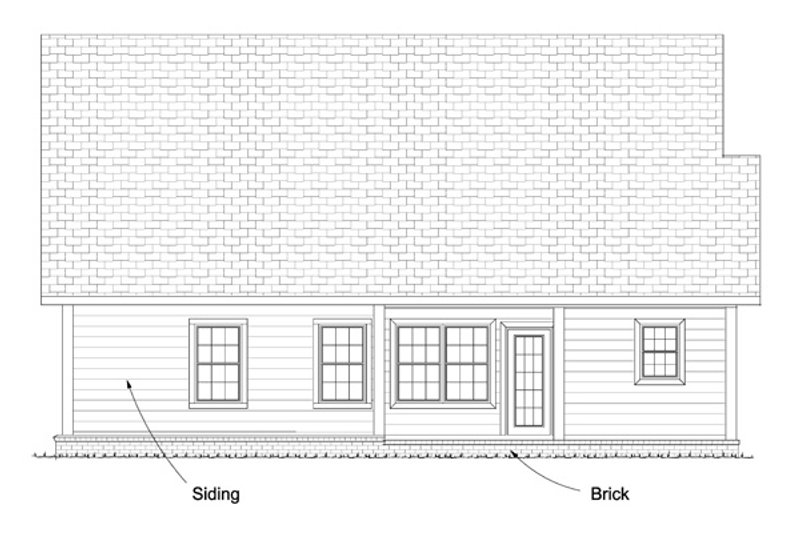

- Elevations: Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys, ridges and framing.
- Foundations: Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
- Main Level Floor Plan: Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as ceiling treatments and header locations.
- Second Level Floor Plan: Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
- Interior Elevations: Kitchen cabinet elevations are drawn.
- Electrical and Sections: The electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall, stair, brick sections are provided to further explain construction of these areas.
Plan Set
$804.00
$1040.00
Foundation
$0.00
$156.00
$156.00
Framing
$0.00
$156.00
Additional Options
$156.00
$132.00
$236.00
$31.20
$132.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
