PLAN 70-230
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 53' 4"
Height : 24'
Width : 65'
Area
First Floor: 1892 sq/ft height 8'
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Bedroom Features
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Additional Room Features
Great Room Living Room
Unfinished Future Space
Garage Features
Oversized Garage
Lot Characteristics
Suited For View Lot
Rooms

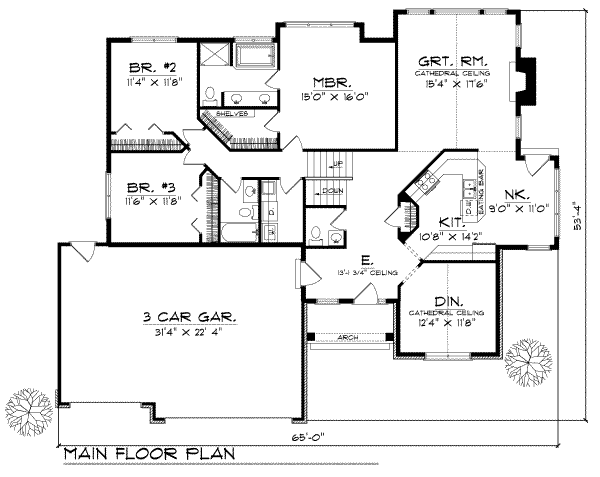

Bedroom 2:
132 sq/ft width 11' 4" x depth 11' 8"
Bedroom 3:
134 sq/ft width 11' 6" x depth 11' 8"
Breakfast Nook:
99 sq/ft width 9' x depth 11'
Dining Room:
143 sq/ft width 12' 4" x depth 11' 8"
Garage:
699 sq/ft width 31' 4" x depth 22' 4"
Great Room:
268 sq/ft width 15' 4" x depth 17' 6"
Kitchen:
151 sq/ft width 10' 8" x depth 14' 2"
Master Bedroom:
240 sq/ft width 15' x depth 16'
What's Included In This Plan Set
- Cover sheet with front rendering
- Foundation and floor plans at 1/4" = 1' scale
- Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
- Building sections and details as required to construct the individual design
- Interior elevation of cabinets at 1/4" = 1' scale
- Roof plans
- Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
- Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
- Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
Plan Set
$1006.00
$1060.00
$1257.00
$1257.00
$1999.00
Foundation
$0.00
$395.00
$395.00
Additional Options
$395.00
$80.00
$100.00
$295.00
$39.00
$75.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
