Key Specs
1897
sq ft
3
Beds
2.5
Baths
2
Floors
2
Garages
Phone: 1-866-445-9085
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 513-2127
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 49'
Height : 27'
Width : 67'
Area
Bonus: 212 sq/ft
First Floor: 1482 sq/ft
Garage: 584 sq/ft
Second Floor: 415 sq/ft
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Bedroom Features
Formal Dining Room
Formal Living Room / Parlor
Main Floor Master Bedroom
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Additional Room Features
Den Office Study Computer
Storage Area
Sunroom
Unfinished Future Space
Outdoor Spaces
Covered Front Porch
Screened Porch
Rooms
Bathroom 2:
41 sq/ft width 8' 4" x depth 5'
Bedroom 2:
132 sq/ft width 12' x depth 11'
Bedroom 3:
132 sq/ft width 12' x depth 11'
Bonus Room - Unfinished:
212 sq/ft width 16' 4" x depth 13'
Dining Room:
135 sq/ft width 12' 4" x depth 11'
Foyer:
44 sq/ft width 4' x depth 11'
Garage:
483 sq/ft width 23' x depth 21'
Half Bathroom:
21 sq/ft width 3' x depth 7'
Kitchen:
126 sq/ft width 11' x depth 11' 6"
Kitchen Island:
18 sq/ft width 3' x depth 6'
Living Room:
288 sq/ft width 16' x depth 18'
Master Bathroom:
123 sq/ft width 12' x depth 10' 4"
Master Bedroom:
235 sq/ft width 15' 8" x depth 15'
Master Closet:
68 sq/ft width 12' x depth 5' 8"
Nook:
121 sq/ft width 11' x depth 11'
Porch - Screened:
176 sq/ft width 16' x depth 11'
Shop:
79 sq/ft width 13' 4" x depth 6'
Study:
144 sq/ft width 12' x depth 12'
Utility Room:
33 sq/ft width 6' x depth 5' 6"
What's Included In This Plan Set
- Cover Page: Each home plan features the front elevation and informative reference sections including general notes and design criteria.
- Elevations: Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys, ridges and framing.
- Foundations: Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.

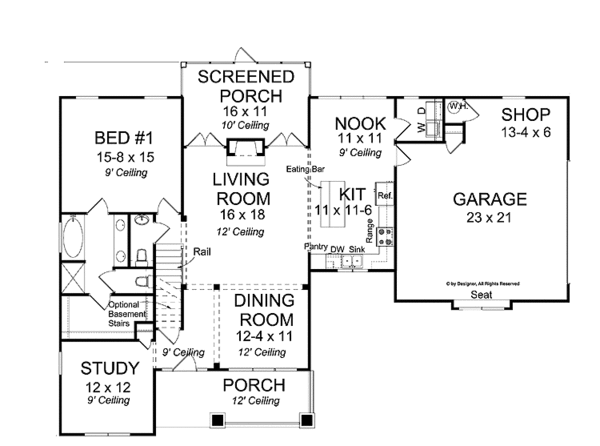

- Main Level Floor Plan: Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as ceiling treatments and header locations.

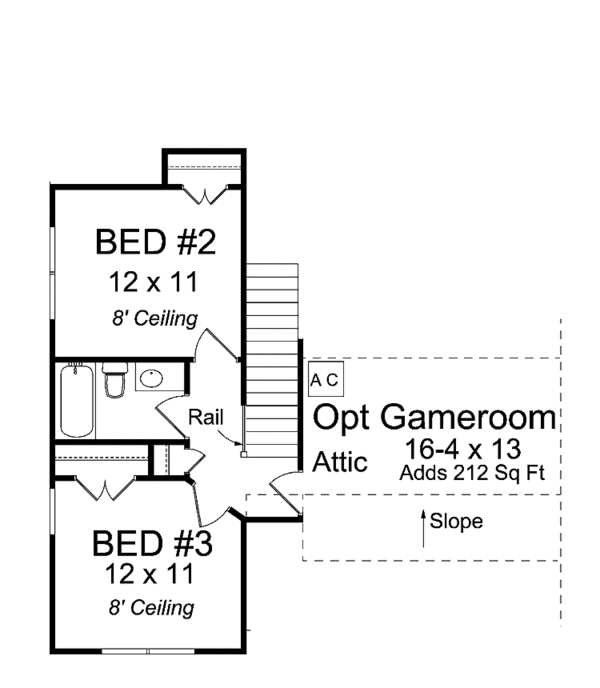

- Second Level Floor Plan: Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
- Interior Elevations: Kitchen cabinet elevations are drawn.
- Electrical and Sections: The electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall, stair, brick sections are provided to further explain construction of these areas.
Plan Set
$1005.00
$1300.00
Foundation
$0.00
$195.00
$195.00
Framing
$0.00
$195.00
Additional Options
$195.00
$165.00
$295.00
$39.00
$165.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
