PLAN 70-652
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description

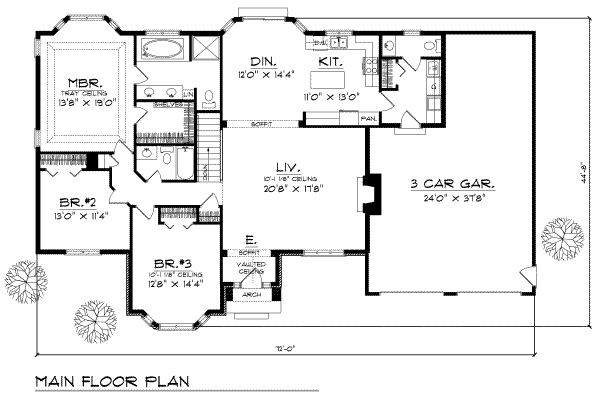

Floor Plans
Full Specs & Features
Dimension
Depth : 44' 8"
Height : 25'
Width : 72'
Area
First Floor: 1898 sq/ft
Ceiling
Main Ceiling : 8'
Roof
Primary Pitch : 10:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : 2"x6"
Bedroom Features
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Additional Room Features
Master Sitting Area
Garage Features
Oversized Garage
Tandem Garage
Lot Characteristics
Suited For View Lot
Rooms
3rd BR Closet:
10 sq/ft width 5' 2" x depth 2'
Basement Foundation:
3096 sq/ft width 72' x depth 43'
Bedroom 2:
147 sq/ft width 13' x depth 11' 4"
Bedroom 2 Closet:
13 sq/ft width 6' 8" x depth 2'
Bedroom 3:
181 sq/ft width 12' 8" x depth 14' 4"
Bedroom 3 Closet:
13 sq/ft width 6' 8" x depth 2'
Dining Room:
167 sq/ft width 11' 8" x depth 14' 4"
Foyer:
26 sq/ft width 7' 8" x depth 3' 6"
Garage:
878 sq/ft width 23' 4" x depth 37' 8"
Hall:
43 sq/ft width 13' 2" x depth 3' 4"
Hall Bathroom:
41 sq/ft width 8' 4" x depth 5'
Hall Closet:
6 sq/ft width 3' x depth 2'
Kitchen:
138 sq/ft width 10' 8" x depth 13'
Laundry Room:
83 sq/ft width 8' 8" x depth 9' 8"
Living Room:
365 sq/ft width 20' 8" x depth 17' 8"
Master Bathroom:
113 sq/ft width 12' 2" x depth 9' 4"
Master Bedroom:
227 sq/ft width 13' 6" x depth 16' 10"
Master Closet:
49 sq/ft width 8' 4" x depth 6'
Powder Room:
26 sq/ft width 8' 8" x depth 3'
Slab Foundation:
924 sq/ft width 24' 4" x depth 38'
What's Included In This Plan Set
- Cover sheet with front rendering
- Foundation and floor plans at 1/4" = 1' scale
- Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
- Building sections and details as required to construct the individual design
- Interior elevation of cabinets at 1/4" = 1' scale
- Roof plans
- Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
- Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
- Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
Plan Set
$1006.00
$1060.00
$1257.00
$1257.00
$1999.00
Foundation
$0.00
$395.00
$395.00
Additional Options
$395.00
$80.00
$100.00
$295.00
$39.00
$75.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
