PLAN 60-503
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description

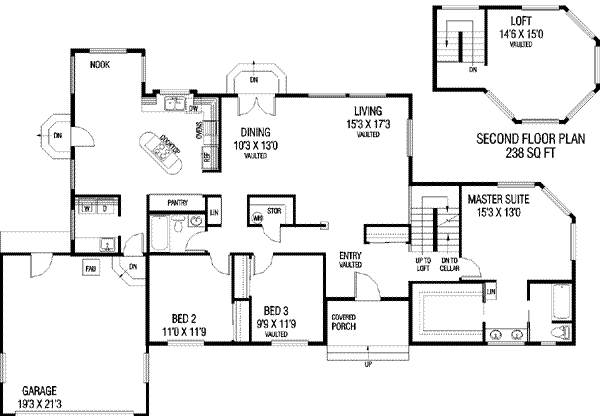

Floor Plans
Full Specs & Features
Dimension
Depth : 49'
Height : 29'
Width : 78'
Area
Bonus: 238 sq/ft
First Floor: 1903 sq/ft
Roof
Primary Pitch : 6:12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2"x6"
Bedroom Features
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Additional Room Features
Loft
Unfinished Future Space
Outdoor Spaces
Balcony
Covered Front Porch
Rooms
Bedroom 2:
140 sq/ft width 12' 3" x depth 11' 6"
Bedroom 3:
132 sq/ft width 11' 6" x depth 11' 6"
Dining Room:
183 sq/ft width 12' 3" x depth 15'
Garage:
616 sq/ft width 23' 3" x depth 26' 6"
Living Room:
270 sq/ft width 15' x depth 18'
Master Suite:
294 sq/ft width 19' x depth 15' 6"
What's Included In This Plan Set
- Exterior Elevations are scaled (1/4" and 1/8" = 1'-0") drawings of the front, rear, left, and right sides of the home.
- Detailed Floor plans of the home accurately dimensioning the positioning of the walls, doors, windows, stairs, and permanent fixtures.
- Foundation plan details the foot print of the home. Location and size of load points, stem walls, footings, pony walls, and floor joist.
- Roof plans are typically truss planing, truss manufacturer will provide detail diagrams of truss's. In some cases the roof plans may be drawn as stick framed or have stick framing which will call out lumber sizes and spacing.
- Cross Sections offer a cut away through the home showing your builder the correlation of building components.
- Details indicate minimum CABO/IRC standards for construction of the home.
- Electrical plan shows the schematic of the electrical layout. Most electricians want to discuss the options the home owner desires prior to bidding.
- Mechanical and Detailed Plumbing plans are not included. These are site specific and are accomplished by those professionals.
- All plans are prepared in compliance with the Uniform Building Code (ICBO) or the International Residential Code, a National Standard for residential construction at the time of completion.
Plan Set
$900.00
$950.00
$1700.00
Foundation
$0.00
Additional Options
$50.00
$100.00
$39.00
$100.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
