Key Specs
1953
sq ft
4
Beds
2
Baths
1
Floors
2
Garages
Phone: 1-866-445-9085
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 42-553
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description

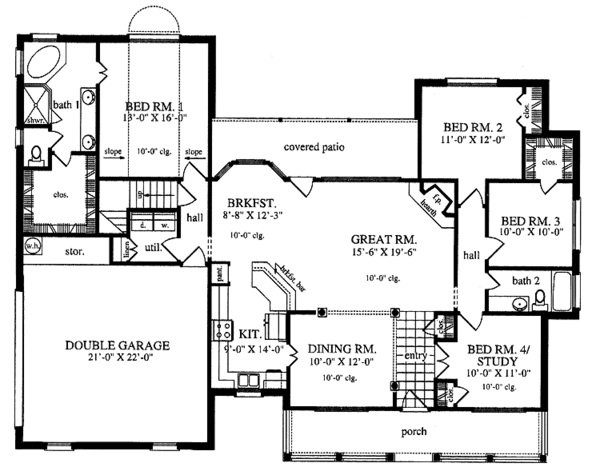

Floor Plans
Full Specs & Features
Dimension
Depth : 50' 2"
Height : 24'
Width : 66' 8"
Area
Bonus: 308 sq/ft
First Floor: 1953 sq/ft
Roof
Primary Pitch : 8:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Main Floor Master Bedroom
Split Bedrooms
Kitchen Features
Breakfast Nook
Kitchenette Wet Bar
Additional Room Features
Great Room Living Room
Main Floor Laundry
Open Floor Plan
Unfinished Future Space
Garage Features
Side Entry Garage
Outdoor Spaces
Courtyard
Covered Front Porch
Covered Rear Porch
Rooms
3rd BR Closet:
28 sq/ft width 5' 8" x depth 5'
Bathroom 2:
50 sq/ft width 5' x depth 10'
Bedroom 2:
132 sq/ft width 11' x depth 12'
Bedroom 2 Closet:
11 sq/ft width 5' 8" x depth 2'
Bedroom 3:
100 sq/ft width 10' x depth 10'
Bedroom 3 Closet:
11 sq/ft width 5' 8" x depth 2'
Bedroom 4:
110 sq/ft width 10' x depth 11'
Bedroom 4 Closet:
6 sq/ft width 3' x depth 2'

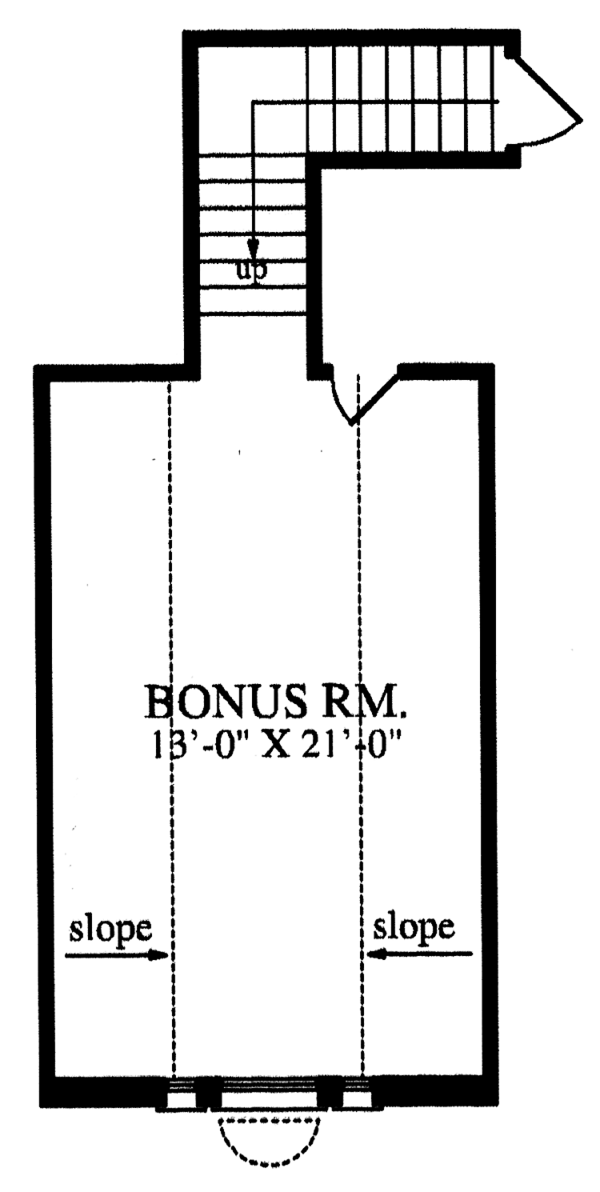

Bonus Room - Finished:
273 sq/ft width 13' x depth 21'
Breakfast Room:
106 sq/ft width 8' 8" x depth 12' 3"
Coat Closet:
6 sq/ft width 3' x depth 2'
Covered Porch:
190 sq/ft width 31' 4" x depth 6' 1"
Dining Room:
135 sq/ft width 12' 4" x depth 11'
Front Entry:
49 sq/ft width 4' 6" x depth 11'
Garage:
462 sq/ft width 21' x depth 22'
Garage Storage:
33 sq/ft width 10' x depth 3' 4"
Gathering Room:
298 sq/ft width 19' 6" x depth 15' 4"
Hall:
73 sq/ft width 22' x depth 3' 4"
Hall Bathroom:
50 sq/ft width 5' x depth 10'
Hall Closet:
6 sq/ft width 3' x depth 2'
Kitchen:
126 sq/ft width 9' x depth 14'
Laundry Room:
34 sq/ft width 5' 8" x depth 6'
Linen Closet:
6 sq/ft width 3' x depth 2'
Master Bathroom:
130 sq/ft width 8' 8" x depth 15'
Master Bedroom:
208 sq/ft width 13' x depth 16'
Master Closet:
80 sq/ft width 8' 8" x depth 9' 4"
Pantry:
6 sq/ft width 3' x depth 2'
Patio:
173 sq/ft width 24' 6" x depth 7' 1"
Porch - Rear:
173 sq/ft width 24' 6" x depth 7' 1"
Study:
110 sq/ft width 10' x depth 11'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$722.50
$765.00
$765.00
$680.00
Foundation
$0.00
$0.00
Framing
$0.00
Additional Options
$148.75
$51.00
$85.00
$33.15
$85.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
