PLAN 70-280
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description

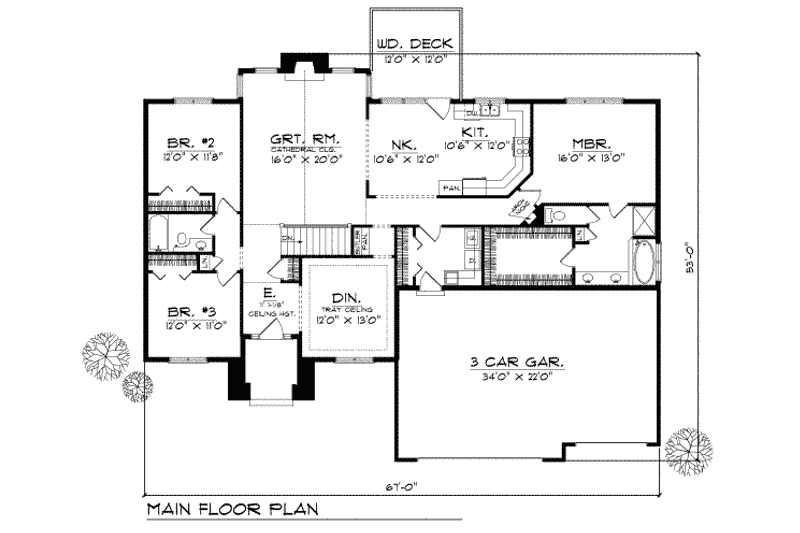

Floor Plans
Full Specs & Features
Dimension
Depth : 53'
Height : 24'
Width : 67'
Area
First Floor: 2007 sq/ft height 9'
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x6
Bedroom Features
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Additional Room Features
Great Room Living Room
Garage Features
Oversized Garage
Lot Characteristics
Suited For View Lot
Rooms
Bedroom 2:
140 sq/ft width 12' x depth 11' 8"
Bedroom 3:
132 sq/ft width 12' x depth 11'
Breakfast Nook:
126 sq/ft width 10' 6" x depth 12'
Dining Room:
156 sq/ft width 12' x depth 13'
Garage:
748 sq/ft width 34' x depth 22'
Great Room:
320 sq/ft width 16' x depth 20'
Kitchen:
126 sq/ft width 10' 6" x depth 12'
Master Bedroom:
208 sq/ft width 16' x depth 13'
Wood Deck:
144 sq/ft width 12' x depth 12'
What's Included In This Plan Set
- Cover sheet with front rendering
- Foundation and floor plans at 1/4" = 1' scale

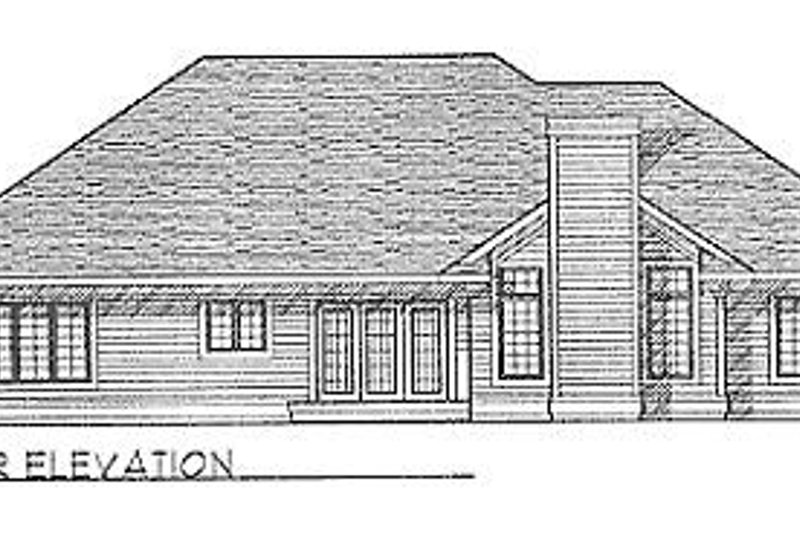

- Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
