PLAN 901-163
Photographs may show modified designs.
- Jump to:
- All (7)
- Floor plans (2)
Get Personalized Help
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-866-445-9085
Phone: 1-866-445-9085
Hours:
Ready for Your Call 7 Days a Week
Every Day 7 am - 8:30 pm Eastern
See our Terms & Conditions and Privacy Policy.
Wow!
Cost to Build Reports
are Only $4.99
with Code CTB2025 (limit 1)
with Code CTB2025 (limit 1)
This report will provide you cost estimates based on location and building materials.
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 901-163
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description
This coastal home boasts a piling foundation and courtyard-style porch, equipped with a swimming pool, dining, and outdoor living space. The central kitchen offers a large center island and direct outside access, while the primary suite provides a dual basin vanity and walk-in closet. Three additional bedrooms feature one self-contained guest suite and two with a dual bathroom. A staircase leads to the backyard, where a 2.5-car deep garage provides ample storage room.
Floor Plans

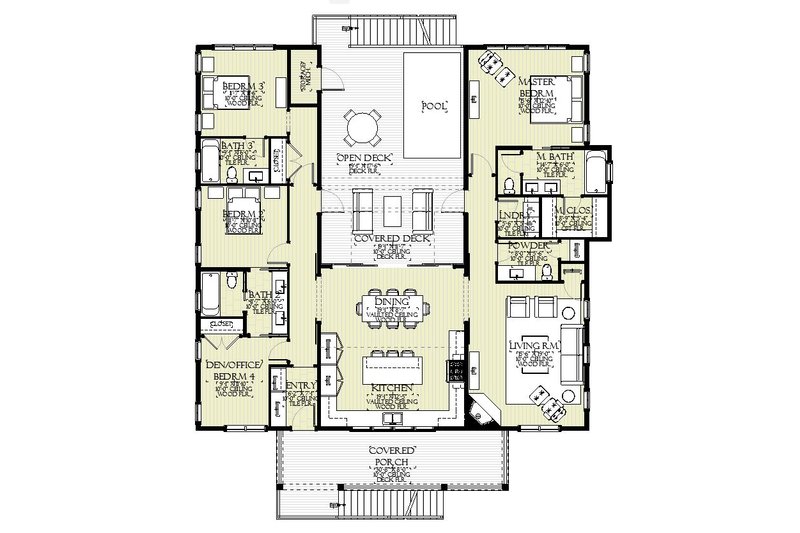

Floor Plan - Main Floor

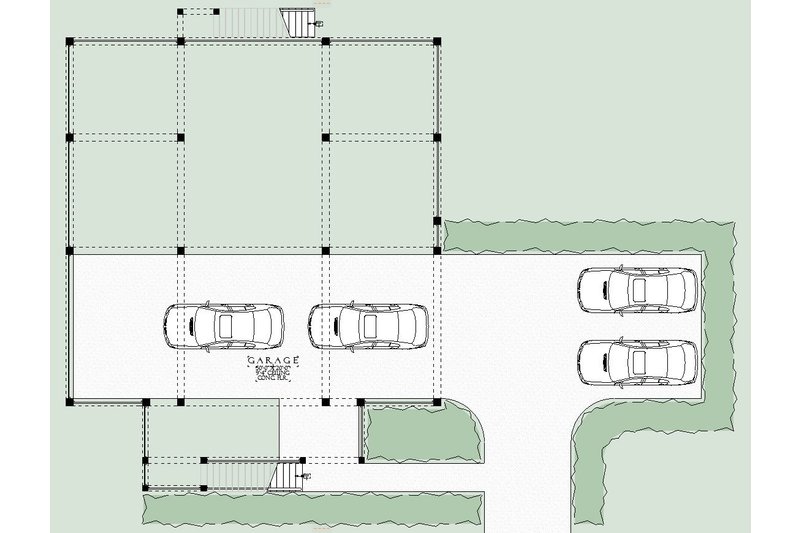

Floor Plan - Lower Floor
Full Specs & Features
Dimension
Depth : 60'
Height : 27'
Width : 52'
Area
Main Floor : 2108 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Garage Ceiling : 9' 4"
Main Ceiling : 10'
Roof
Primary Pitch : 8/12
Roof Type : Truss and Stick
Exterior Wall Framing
Framing : 2x6
What's Included In This Plan Set
- Title Sheet. This page includes a color rendering of your home and an overview of the floor plan.
- Floor Plans, Roof Plans and Foundation Plans. These plans detail the location, dimension and structural requirements of your home. Roof plans also illustrate pitch, composition and overhang sizes. Framers use this information for project estimates and to plan work on-site.

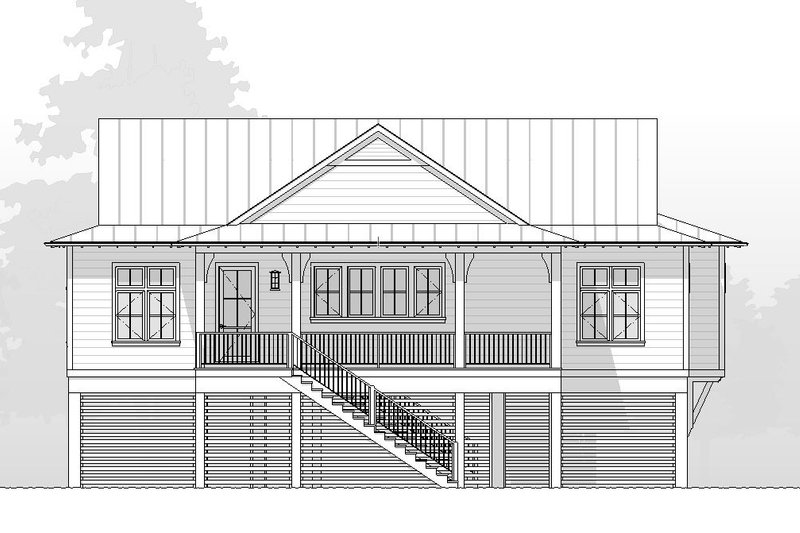

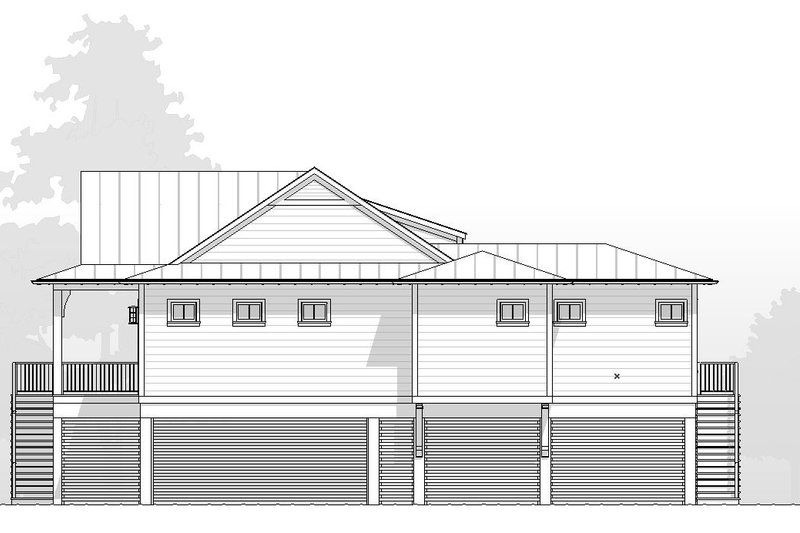

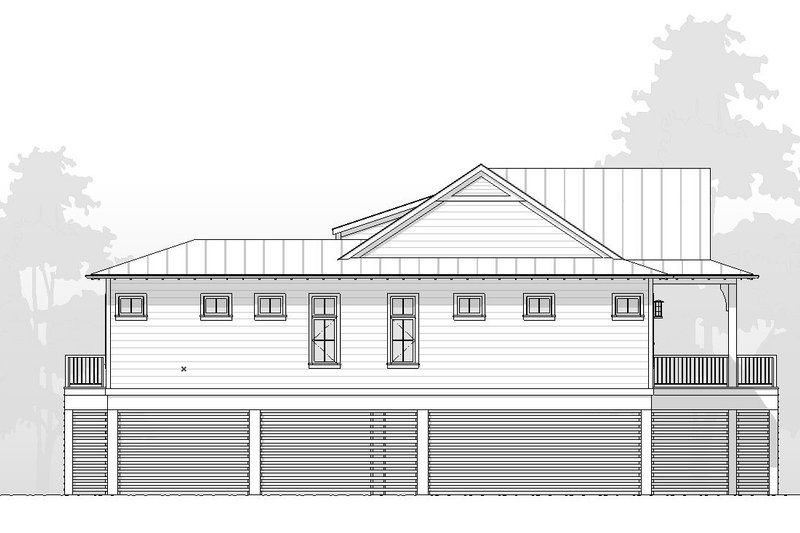

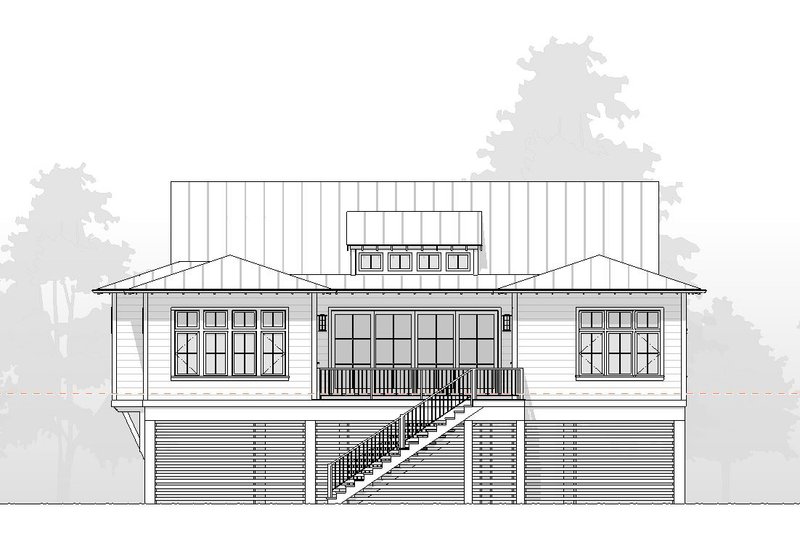

- Exterior Elevations. Front, rear and side elevation views, illustrating exterior materials, details, wall heights, roof pitches, window location and sizes.
- Building Construction Details. This section gives your builder ceiling heights, a sense of overall home construction and wall sections, including material callouts, eave detail, roof pitch and foundation construction.
- Recommended Interior & Exterior Trim and Detailing. Every home was specifically designed to achieve a highly livable and comfortably beautiful, proportioned space. For that reason, each blueprint comes with recommended styles for your interior and exterior doors, window trim, baseboards, garage doors and, if applicable to your house style, columns and brackets.
Questions? Call 1-866-445-9085
Plan Set
PDF Set:
$2600.03
$2600.03
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set:
$2640.00
$2640.00
5 printed plan sets mailed to you.
CAD Set:
$3510.00
$3510.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Screw Pile:
$0.03
$0.03
Uses a steel screw-in piling and ground anchoring system. Typical when soil conditions may prevent standard foundation solutions.
Framing
Wood 2x6:
$0.00
$0.00
Wood 2x6 Exterior Walls
Additional Options
Audio Video Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$39.00
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of lighting fixtures.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
