Plan Description
Masonry arches beneath a contrasting metal roof make the courtyard this home’s focal point. Inside, the front bedroom has spectacular windows, double doors access the flex room which could be a third bedroom, and the owner’s suite provides privacy for the bedroom, a spa-inspired bathroom and generous walk-in closet. Distinctive ceiling treatments unify the entertaining areas of this home, extending even to the rear covered patio.
Floor Plans

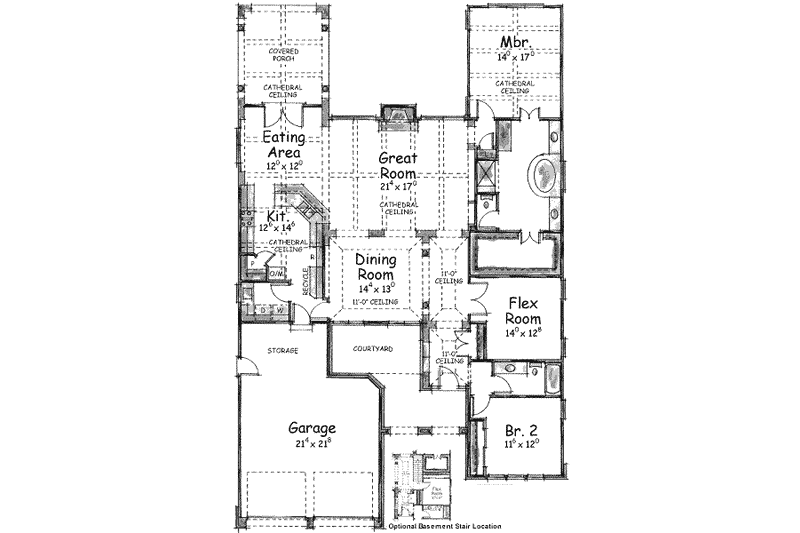

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 81'
Height : 23' 8"
Width : 50'
Area
Main Floor : 2283 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Bedroom Features
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Storage Area
Lot Characteristics
Suited For Narrow Lot
Suited For View Lot
Outdoor Spaces
Courtyard
Covered Rear Porch
More
Empty Nester
What's Included In This Plan Set
- Cover Page: Front elevation and informative reference sections including: general notes and design criteria
- Elevations: Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are noted and an aerial view of the roof is provided, showing all hips, valleys and ridges.
- Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. Shows the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above. Alternate foundations are available for a fee.
- Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.
- Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.
- Elevations: Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations. Not included with all plans, please call for details.
- Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall and stair sections are provided to further explain construction of these areas.
