PLAN 42-500
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description

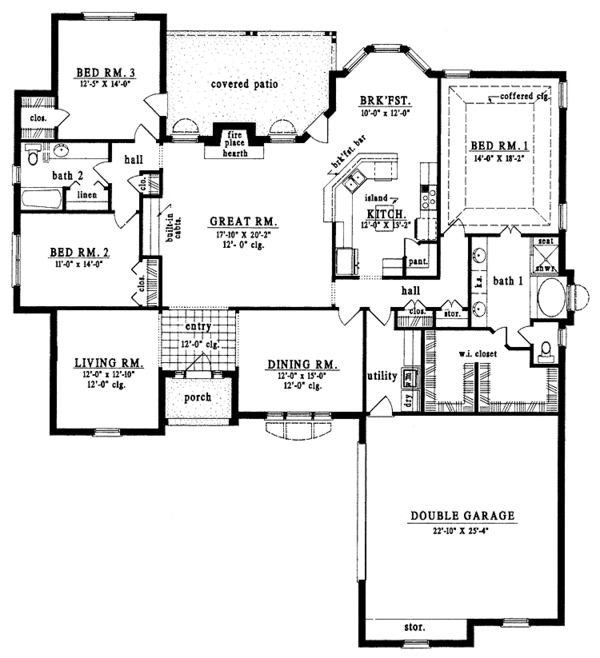

Floor Plans
Full Specs & Features
Dimension
Depth : 74' 4"
Height : 29'
Width : 60' 6"
Area
First Floor: 2544 sq/ft
Roof
Primary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Stone
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Main Floor Master Bedroom
Split Bedrooms
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Additional Room Features
Great Room Living Room
Main Floor Laundry
Open Floor Plan
Outdoor Spaces
Courtyard
Covered Front Porch
Covered Rear Porch
Rooms
3rd BR Closet:
20 sq/ft width 4' x depth 5'
Bedroom 2:
154 sq/ft width 11' x depth 14'
Bedroom 2 Closet:
10 sq/ft width 2' x depth 5'
Bedroom 3:
173 sq/ft width 12' 5" x depth 14'
Bedroom 3 Closet:
10 sq/ft width 2' x depth 5'
Breakfast Room:
120 sq/ft width 10' x depth 12'
Dining Room:
180 sq/ft width 12' x depth 15'
Foyer:
72 sq/ft width 8' x depth 9'
Garage:
578 sq/ft width 22' 10" x depth 25' 4"
Garage Storage:
30 sq/ft width 3' x depth 10'
Gathering Room:
width 17' 10" x depth 0"
Hall Bathroom:
88 sq/ft width 8' x depth 11'
Hall Closet:
5 sq/ft width 2' x depth 2' 6"
Kitchen:
158 sq/ft width 12' x depth 13' 2"
Living Room:
153 sq/ft width 12' x depth 12' 10"
Master Bathroom:
150 sq/ft width 10' x depth 15'
Master Bedroom:
254 sq/ft width 14' x depth 18' 2"
Master Closet:
160 sq/ft width 10' x depth 16'
Porch - Front:
56 sq/ft width 7' x depth 8'
Porch - Rear:
240 sq/ft width 12' x depth 20'
Utility Room:
66 sq/ft width 6' x depth 11'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$900.00
$950.00
$950.00
$850.00
Foundation
$0.00
$0.00
Framing
$0.00
Additional Options
$175.00
$60.00
$100.00
$39.00
$100.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
