Key Specs
2550
sq ft
4
Beds
3.5
Baths
1
Floors
3
Garages
Phone: 1-866-445-9085
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 513-2045
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description

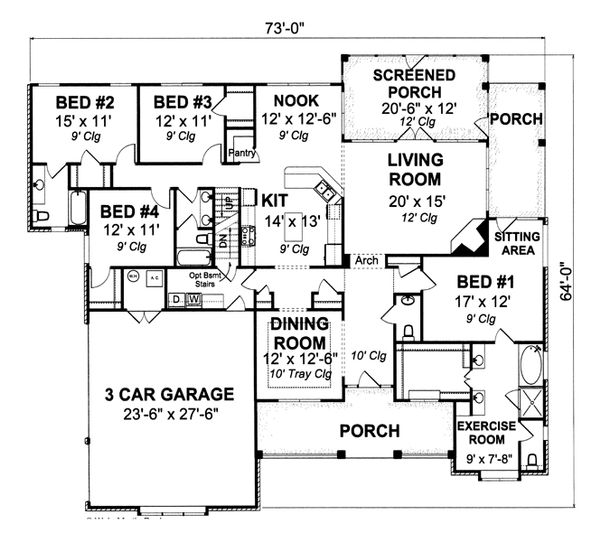

Floor Plans
Full Specs & Features
Dimension
Depth : 64'
Height : 29'
Width : 73'
Area

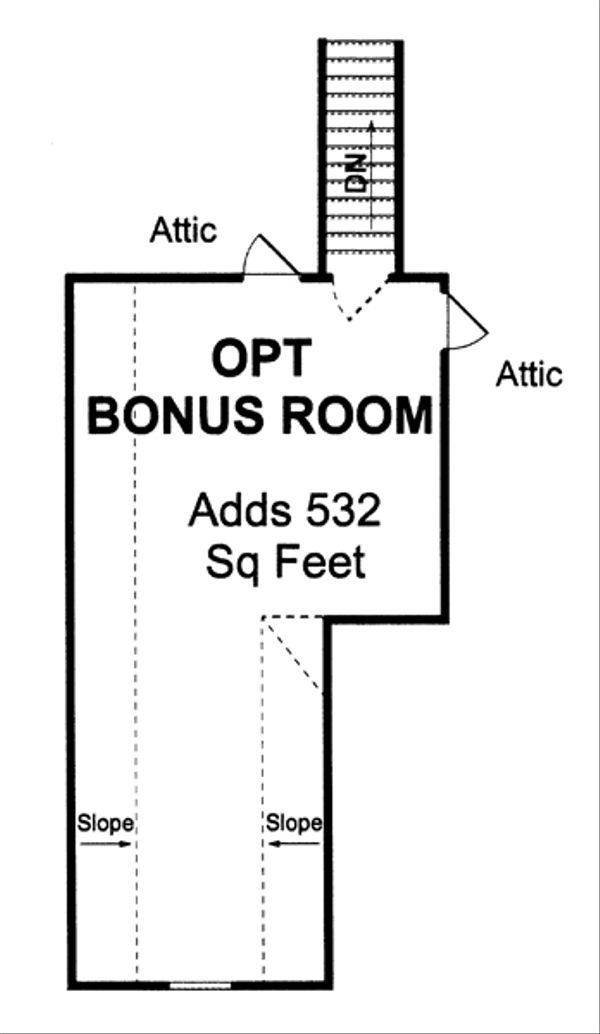

Bonus: 532 sq/ft
First Floor: 2550 sq/ft
Garage: 708 sq/ft
Roof
Primary Pitch : 10:12
Roof Framing : Roof Trusses
Roof Load : 30/20
Roof Type : Roof Trusses
Secondary Pitch : 8:12
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : 2"x4"
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Main Floor Laundry
Mud Room
Play Flex Room
Sunroom
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Screened Porch
Rooms
Bathroom 2:
56 sq/ft width 5' 2" x depth 11'
Bedroom 1:
204 sq/ft width 17' x depth 12'
Bedroom 2:
165 sq/ft width 15' x depth 11'
Bedroom 3:
132 sq/ft width 12' x depth 11'
Bedroom 4:
132 sq/ft width 12' x depth 11'
Dining Room:
150 sq/ft width 12' x depth 12' 6"
Exercise Room:
69 sq/ft width 9' x depth 7' 8"
Garage:
646 sq/ft width 23' 6" x depth 27' 6"
Hall Bathroom:
22 sq/ft width 3' 6" x depth 6' 6"
Kitchen:
182 sq/ft width 14' x depth 13'
Nook:
150 sq/ft width 12' x depth 12' 6"
Porch - Screened:
246 sq/ft width 20' 6" x depth 12'
What's Included In This Plan Set
- Cover Page: Each home plan features the front elevation and informative reference sections including general notes and design criteria.
- Elevations: Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys, ridges and framing.
- Foundations: Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
- Main Level Floor Plan: Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as ceiling treatments and header locations.
- Second Level Floor Plan: Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
- Interior Elevations: Kitchen cabinet elevations are drawn.
- Electrical and Sections: The electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall, stair, brick sections are provided to further explain construction of these areas.
Plan Set
$1055.00
$1350.00
Foundation
$0.00
$195.00
$195.00
Framing
$0.00
$195.00
Additional Options
$195.00
$165.00
$295.00
$39.00
$165.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
