Key Specs
2557
sq ft
4
Beds
2.5
Baths
2
Floors
2
Garages
Phone: 1-866-445-9085
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 124-181
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 62'
Height : 24' 6"
Width : 67'
Area

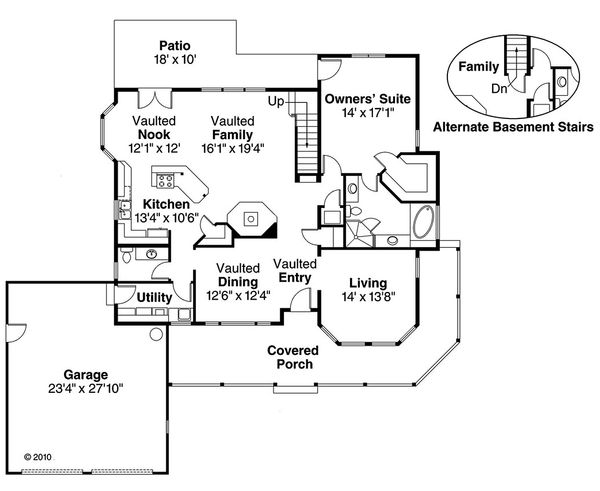

First Floor: 1734 sq/ft height 9'
Garage: 632 sq/ft height 9'

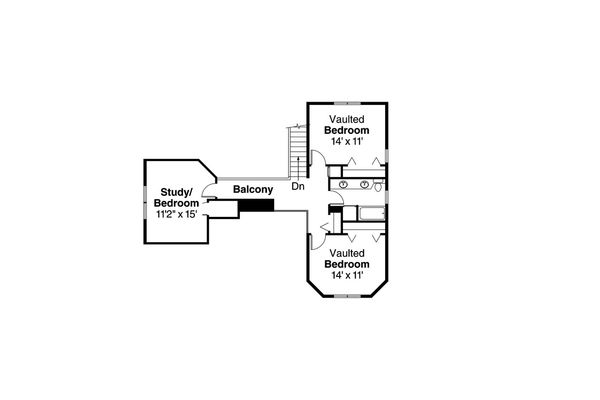

Second Floor: 823 sq/ft height 9'
Ceiling
Main Ceiling : 9'
Roof
Primary Pitch : 10:12
Roof Framing : 2x6
Roof Load : 30
Roof Type : Truss
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2"x6"
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Mud Room
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch
Outdoor Kitchen Grill
Wrap Around Porch
Code Compliance
Irc 2006
Structural Information Provided
Foundation Drawing
Structural 1st Floor Framing
Structural 2nd Floor Framing
Rooms
Bedroom 2:
154 sq/ft width 14' x depth 11'
Bedroom 3:
154 sq/ft width 14' x depth 11'
Bedroom 4:
167 sq/ft width 15' x depth 11' 2"
Dining Room:
137 sq/ft width 12' 6" x depth 11'
Family Room:
289 sq/ft width 19' 4" x depth 15'
Garage:
645 sq/ft width 23' 4" x depth 27' 8"
Living Room:
191 sq/ft width 14' x depth 13' 8"
Master Suite:
225 sq/ft width 16' 1" x depth 14'
Nook:
122 sq/ft width 11' 2" x depth 11'
What's Included In This Plan Set
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
- Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
- Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
- Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
- Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
- Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
- Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
- Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
- Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
- Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
Plan Set
$1425.00
$1750.00
$3000.00
$3225.00
$3550.00
$1050.00
Foundation
$0.00
$475.00
$600.00
Framing
$0.00
$475.00
Additional Options
$410.00
$65.00
$955.00
$165.00
$39.00
$165.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
