PLAN 946-11

Photographs may show modified designs.

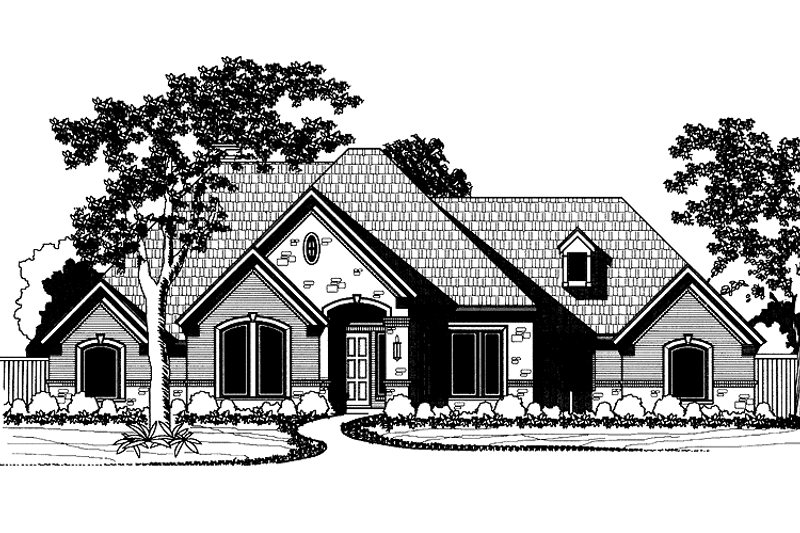

House Blueprint - Ranch Exterior - Front Elevation Plan #946-11

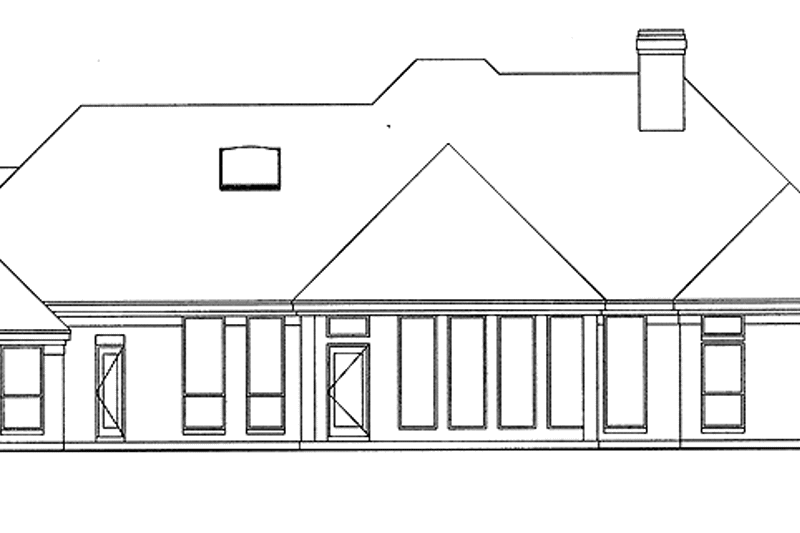

House Blueprint - Ranch Exterior - Rear Elevation Plan #946-11

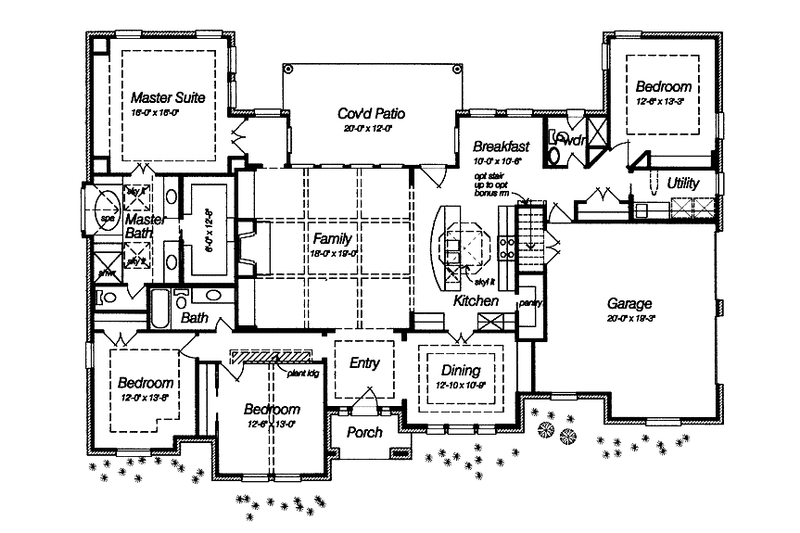

House Blueprint - Ranch Floor Plan - Main Floor Plan #946-11

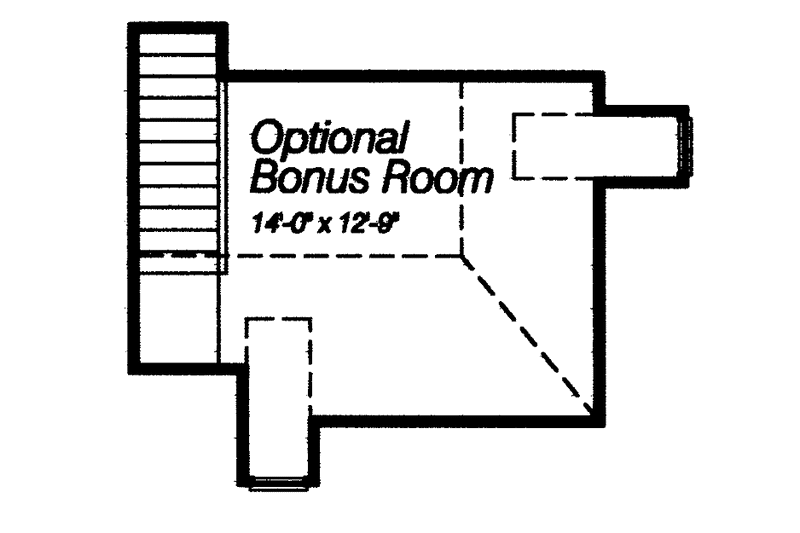

House Blueprint - Ranch Floor Plan - Other Floor Plan #946-11

Jump to:
All (5)
Exterior (3)
Floor plans (2)

Get Personalized Help

Home > Style > Ranch House Plans

Key Specs

2560
sq ft

4
Beds

3
Baths

1
Floors

2
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$175.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$60.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$100.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$75.00

Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

$896.00

Also order by phone: 1-866-445-9085

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-866-445-9085

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

are Only $4.99
with Code CTB2025 (limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost To Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 946-11

Home > Style > Ranch House Plans

Key Specs

2560
sq ft

4
Beds

3
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.

Modify This Plan

Plan Description

This ranch design floor plan is 2560 sq ft and has 4 bedrooms and 3 bathrooms.

Floor Plans

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Floor Plan - Other Floor

Reverse

Full Specs & Features

Dimension

Depth : 53'

Height : 27' 6"

Width : 75'

Area

First Floor: 2560 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 12:12

Roof Framing : Conventional

Roof Type : Asphalt

Exterior Wall Framing

Exterior Wall Finish : Brick

Framing : Wood - 2x4

Bedroom Features

Fireplace

Walk In Closet

Kitchen Features

Kitchen Island

Kitchenette Wet Bar

Additional Room Features

Open Floor Plan

Vaulted / Cathedral Ceilings

Workshop

Rooms

Bathroom 2:

57 sq/ft width 10' x depth 5' 9"

Bedroom 2:

164 sq/ft width 12' x depth 13' 8"

Bedroom 3:

162 sq/ft width 12' 6" x depth 13'

Bedroom 4:

165 sq/ft width 12' 6" x depth 13' 3"

Breakfast Nook:

105 sq/ft width 10' x depth 10' 6"

Covered Porch:

240 sq/ft width 20' x depth 12'

Dining Room:

137 sq/ft width 12' 10" x depth 10' 9"

Family Room:

342 sq/ft width 18' x depth 19'

Front Entry:

78 sq/ft width 9' x depth 8' 9"

Garage:

400 sq/ft width 20' x depth 20'

Kitchen:

228 sq/ft width 12' x depth 19'

Master Bathroom:

126 sq/ft width 10' x depth 12' 8"

Master Bedroom:

256 sq/ft width 16' x depth 16'

Powder Room:

40 sq/ft width 7' x depth 5' 9"

Utility Room:

57 sq/ft width 9' 10" x depth 5' 10"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Questions? Call 1-866-445-9085

Plan Set

5 Copy Set:
$896.00

5 printed plan sets mailed to you.

8 Copy Set:
$998.00

8 printed plan sets mailed to you.

PDF Set:
$1000.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set:
$1408.00

For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

Single Set:
$768.00

One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x4:
$0.00

Wood 2x4 Exterior Walls

Additional Options

Right-Reading Reverse:
$175.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets:
$60.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$100.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets:
$75.00

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
