Key Specs
2570
sq ft
5
Beds
3
Baths
2
Floors
2
Garages
Phone: 1-866-445-9085
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 132-258
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description

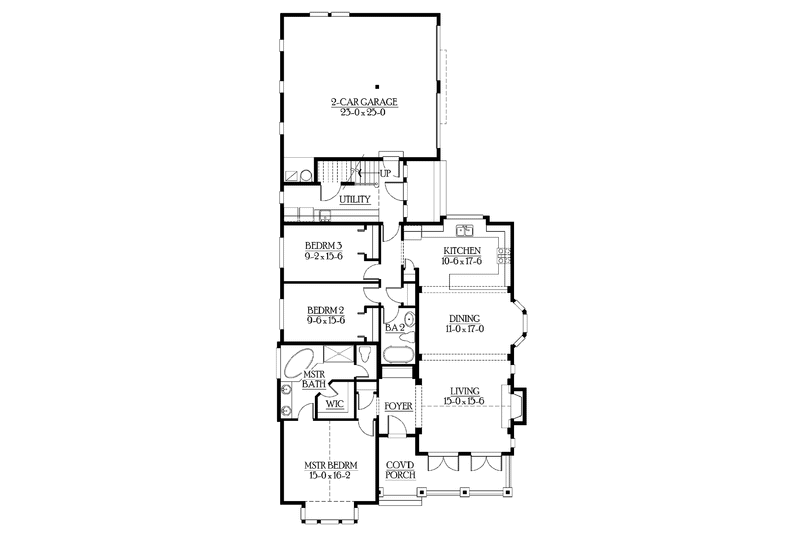

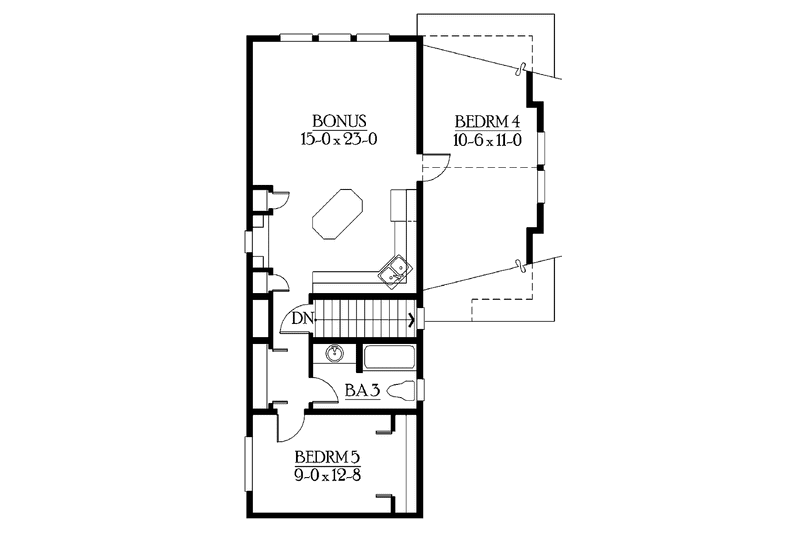

Floor Plans
Full Specs & Features
Dimension
Depth : 83'
Height : 21' 7"
Width : 40'
Area
First Floor: 1780 sq/ft
Garage: 650 sq/ft
Second Floor: 790 sq/ft
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Shingle/Siding
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Guest Suite
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Main Floor Laundry
Storage Area
Unfinished Future Space
Garage Features
Rear Entry Garage
Outdoor Spaces
Courtyard
Covered Front Porch
Outdoor Kitchen Grill
Rooms
Bedroom 2:
147 sq/ft width 9' 6" x depth 15' 6"
Bedroom 3:
142 sq/ft width 9' 2" x depth 15' 6"
Bedroom 4:
115 sq/ft width 10' 6" x depth 11'
Bedroom 5:
114 sq/ft width 9' x depth 12' 8"
Bonus Room - Finished:
345 sq/ft width 15' x depth 23'
Dining Room:
187 sq/ft width 11' x depth 17'
Garage:
575 sq/ft width 23' x depth 25'
Kitchen:
183 sq/ft width 10' 6" x depth 17' 6"
Living Room:
232 sq/ft width 15' x depth 15' 6"
Master Bedroom:
242 sq/ft width 15' x depth 16' 2"
What's Included In This Plan Set
If you are building this plan in the state of Washington, please call us before placing your order.
-
This designer includes the bonus square feet in the total heated living square feet.
- Cover Sheet: The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
- Schedule Sheet: The schedule sheet includes the window, roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
- Detail Sheet: The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
- Foundation Plan Sheet: The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
- Floor Plan Sheet: Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
- Roof Framing Plan Sheet: The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
- Elevation Sheet: Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
- Building Section Sheet: Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
Plan Set
$1800.00
$3250.00
Foundation
$0.00
Framing
$0.00
Additional Options
$300.00
$50.00
$165.00
$295.00
$39.00
$165.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
