Key Specs
2591
sq ft
3
Beds
3.5
Baths
1
Floors
3
Garages
Phone: 1-866-445-9085
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 52-285
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 48' 8"
Height : 27' 6"
Width : 96'
Area
First Floor: 2591 sq/ft height 9'
Garage: 768 sq/ft
Roof
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Open Floor Plan
Vaulted / Cathedral Ceilings
Outdoor Spaces
Courtyard
Rooms
Bedroom 2:
164 sq/ft width 12' x depth 13' 8"
Bedroom 3:
152 sq/ft width 12' x depth 12' 8"
Breakfast Area:
132 sq/ft width 11' x depth 12'
Dining Room:
144 sq/ft width 12' x depth 12'
Family Room:
203 sq/ft width 14' x depth 14' 6"
Garage:
738 sq/ft width 31' 8" x depth 23' 4"
Kitchen:
174 sq/ft width 13' 8" x depth 12' 9"
Living Room:
382 sq/ft width 17' 8" x depth 21' 8"
Master Bedroom:
210 sq/ft width 14' x depth 15'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :

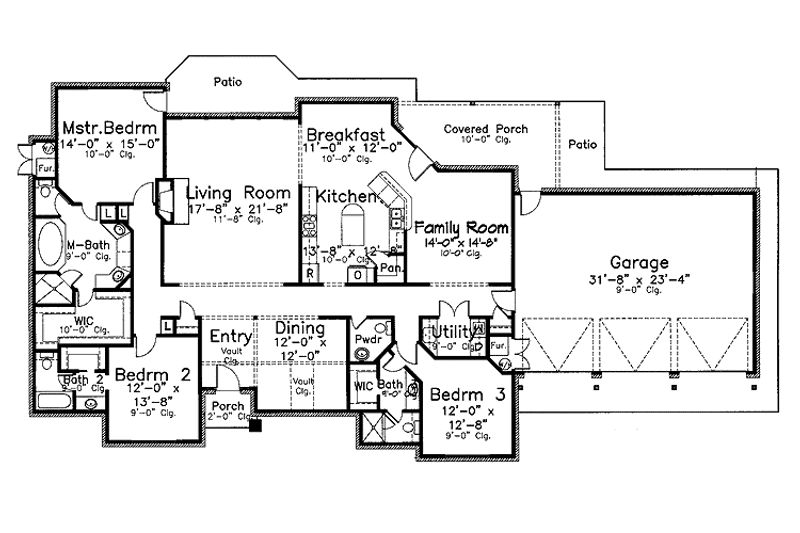

- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

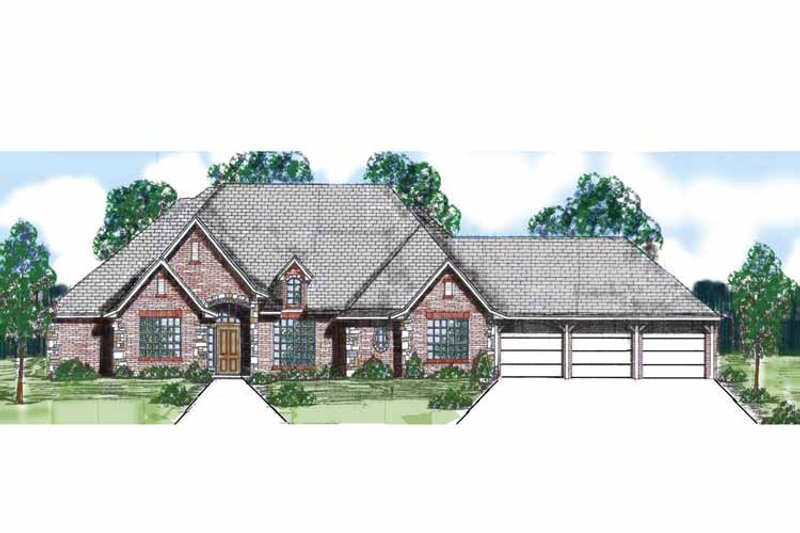

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$855.00
$1000.00
$1000.00
$699.00
Foundation
$0.00
Framing
$0.00
Additional Options
$60.00
$100.00
$39.00
$100.00
$55.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
