PLAN 98-212
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 54'
Height : 25'
Width : 63' 8"
Area
Bonus: 401 sq/ft
First Floor: 1576 sq/ft height 9'
Second Floor: 1076 sq/ft
Ceiling
Ceiling Details : Great Room: vaults to 22'0"Foyer: vaults to 22'0"
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 10:12
Roof Framing : Combination Truss/Conventional
Roof Type : Shingle
Secondary Pitch : 6:12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2"x6"
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Additional Room Features
Den Office Study Computer
Great Room Living Room
Play Flex Room
Lot Characteristics
Suited For View Lot
Outdoor Spaces
Covered Front Porch
What's Included In This Plan Set
-

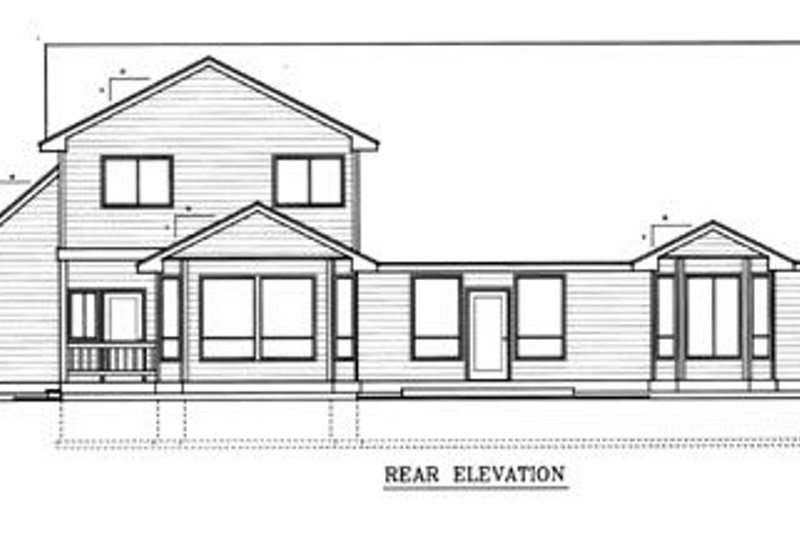

Elevations drawn at 1/4" = 1'-0" scale, and includes:
- Material labels
- Floor-to-floor heights
- Roof slope indicators
- Attic ventilation notes
- Material labels
-

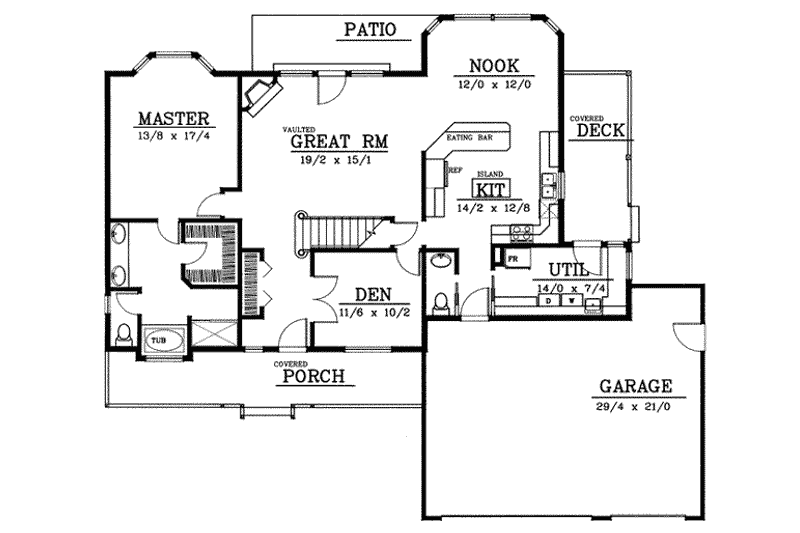

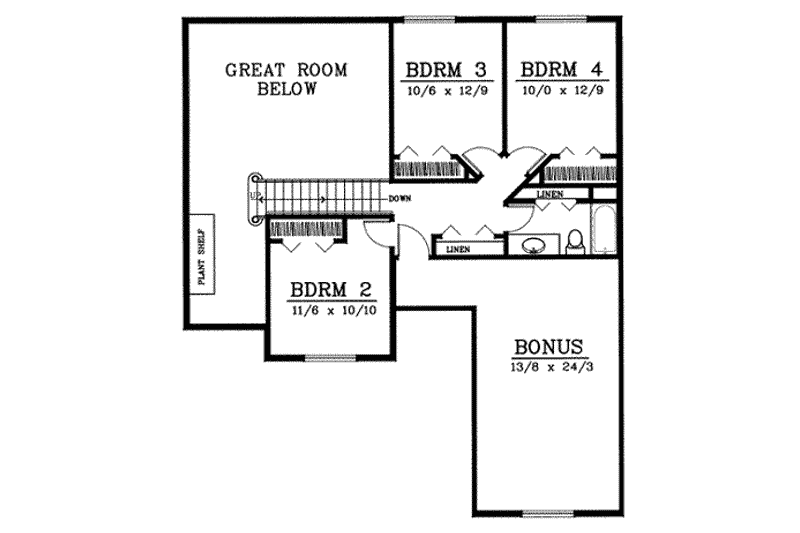

Floor Plans drawn at 1/4" = 1'-0" scale, and includes:
- All post and beam locations
- Door and window sizes
- Complete and accurate dimensions
- Room labels and interior room sizes
- Electrical layouts
- Code-related notes
- Building section markers
- Floor joist type, spacing and direction
- All post and beam locations
-
Foundation or Basement Plan drawn at 1/4" = 1'-0" scale, and includes:
- All post and beam locations
- Door and window sizes
- Complete and accurate dimensions
- All foundation wall and footing sizes
- Code-related notes
- Building section markers
- Floor and deck joist type, spacing and direction
- Mechanical equipment location
- Electrical layouts
- All post and beam locations
-
Roof Plan drawn at 1/4" = 1'-0", and includes:
- All beam and header locations
- Building section markers
- Code-related notes
- All necessary notes pertaining to the structural system
- All beam and header locations
-
Building Sections drawn at 1/4" = 1'-0" scale, and includes:
- Beam connections and locations
- Floor joist type and spacing
- Floor-to-floor heights
- Non-typical plate heights indicated
- Beam connections and locations
-
Typical wall sections drawn at 1/2" = 1'-0" scale, and includes:
- All labels indicating wall construction
- Foundation wall thickness and minimum reinforcing
- Insulation type and rating
- All labels indicating wall construction
- Miscellaneous Notes and Details: Including miscellaneous framing details, stairway details and general notes covering code requirements for residential construction
Plan Set
$850.00
$900.00
$950.00
$1600.00
Foundation
$0.00
$150.00
$250.00
$350.00
Additional Options
$150.00
$50.00
$100.00
$39.00
$100.00
