PLAN 117-838
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 65' 4"
Height : 19' 11"
Width : 65'
Area

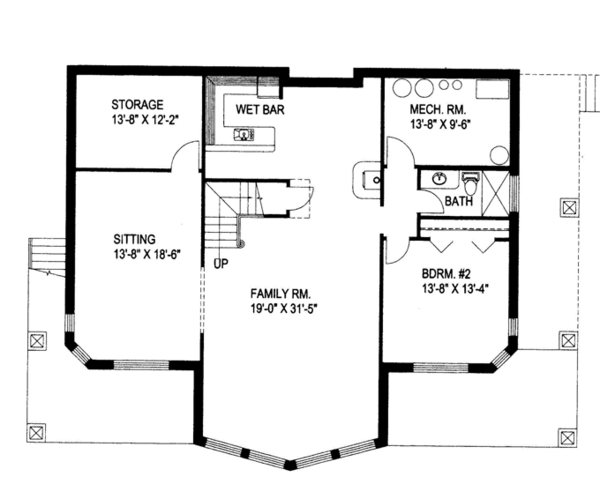

Basement Living: 1652 sq/ft height 9'

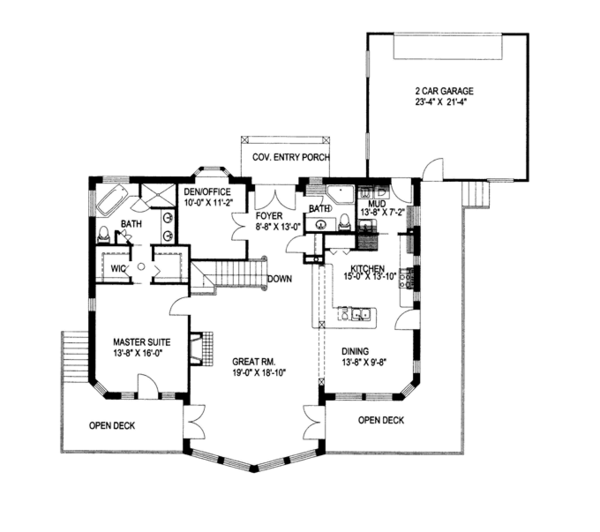

First Floor: 1652 sq/ft
Garage: 524 sq/ft
Roof
Primary Pitch : 7:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Shingle/Siding
Framing : ICF (Insulated Concrete Forms)
Bedroom Features
Fireplace
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Kitchenette Wet Bar
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Mud Room
Open Floor Plan
Storage Area
Vaulted / Cathedral Ceilings
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch
Deck
Wrap Around Porch
Rooms
Bedroom 2:
width 13' 8" x depth 13' 4"
Den/Office:
width 10' x depth 11' 2"
Family Room:
width 19' x depth 31' 5"
Foyer:
width 8' 8" x depth 13'
Garage:
524 sq/ft width 23' 4" x depth 21' 4"
Great Room:
width 19' x depth 18' 10"
Kitchen:
width 15' x depth 13' 10"
Kitchen:
width 15' x depth 13' 10"
Master Suite:
width 13' 8" x depth 16'
Mechanical Room:
width 13' 8" x depth 9' 6"
Sitting Area:
width 13' 8" x depth 18' 6"
Storage:
width 13' 8" x depth 12' 2"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

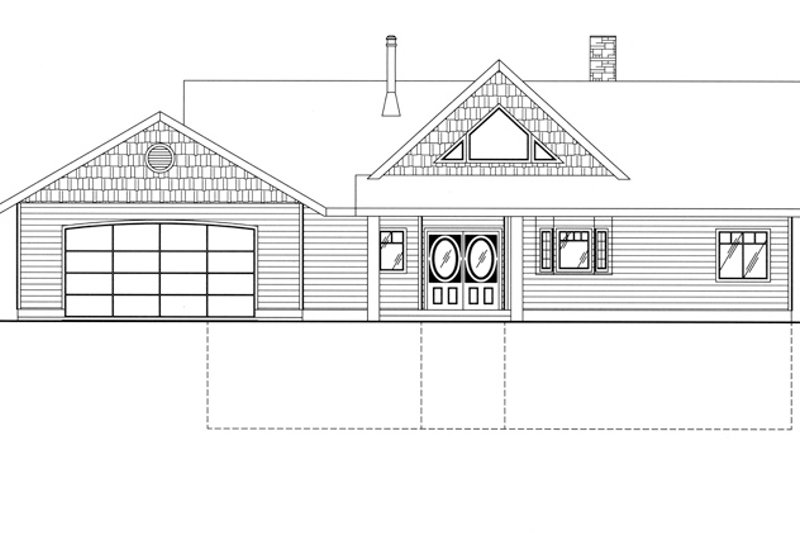

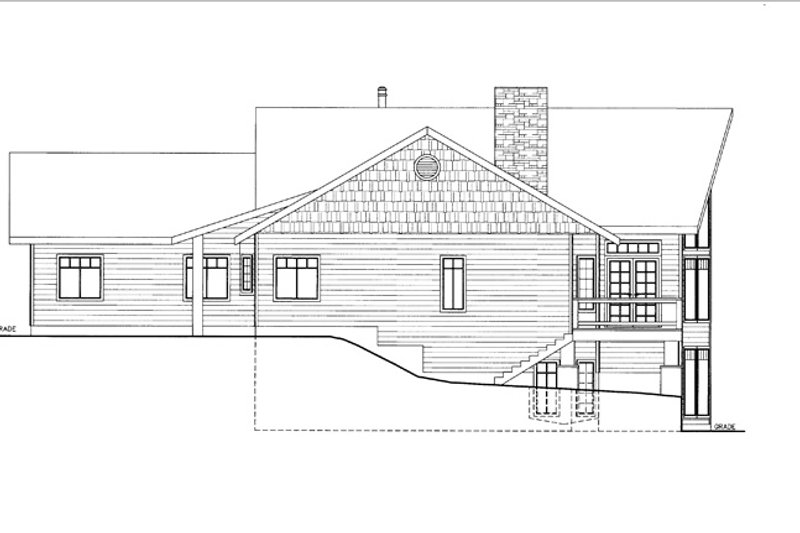

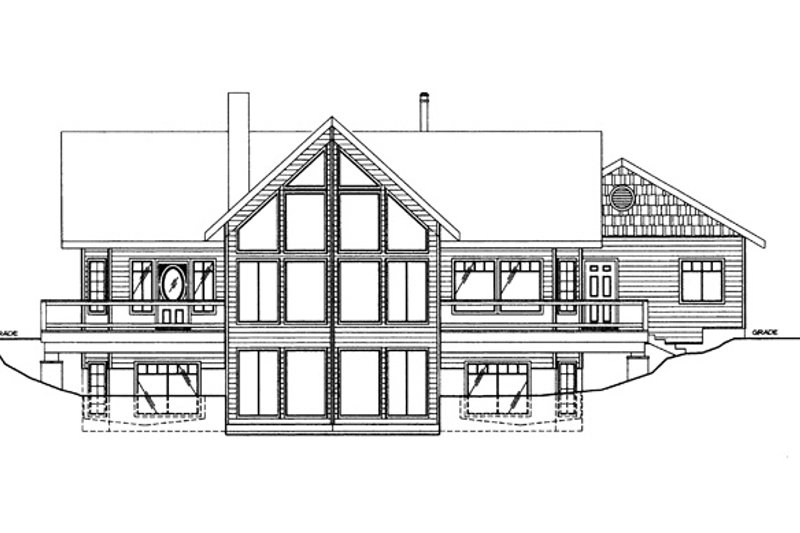

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

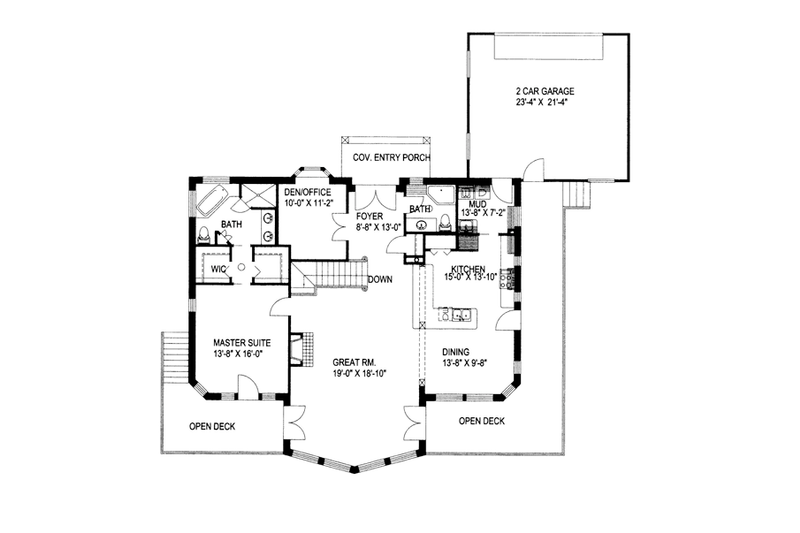

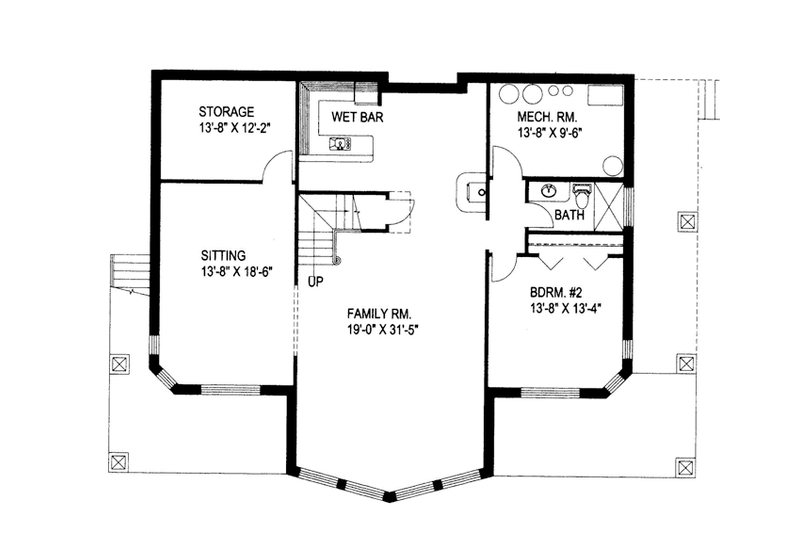

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
