PLAN 84-618
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 53'
Height : 29' 3"
Width : 90'
Area
Deck: 219 sq/ft
First Floor: 3030 sq/ft
Garage: 796 sq/ft height 9'
Porch: 260 sq/ft
Second Floor: 334 sq/ft height 9'
Ceiling
Ceiling Details : 10' tier vault in master 9' tier in media
Main Ceiling : 10'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : Gables
Secondary Pitch : 14:12
Exterior Wall Framing
Exterior Wall Finish : Brick, stone
Framing : 2x4
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Main Floor Laundry
Mud Room
Garage Features
Side Entry Garage
Entryway
Friend S Entry
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
More
Jack & Jill Bath
Rooms
Bedroom 2:
width 11' 10" x depth 12' 8"
Bedroom 3:
width 11' 10" x depth 12'
Deck:
219 sq/ft width 23' x depth 10' 4"
Dinette:
width 12' 6" x depth 12'
Dining Room:
width 13' 6" x depth 12'
Family:
width 21' 8" x depth 20'
Front Porch:
96 sq/ft
Garage:
796 sq/ft width 21' x depth 32' 2"
Kitchen:
width 12' 4" x depth 15'
Library:
width 12' 4" x depth 16' 8"
Master Suite:
width 16' x depth 18' 4"
Media Room:
width 14' 4" x depth 20'
Rear Porch:
260 sq/ft width 32' 2" x depth 10' 4"
What's Included In This Plan Set
- FOUNDATION LAYOUT PLAN: 1/4" Scale - Dimensioned but not engineered. Structural design of foundation needs to be provided by a local structural engineer.
- FRONT RENDERING: 1/4" Scale

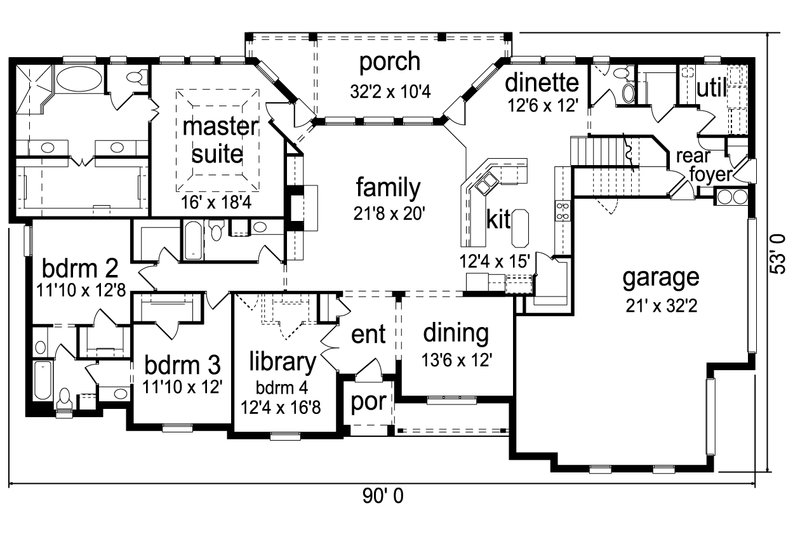

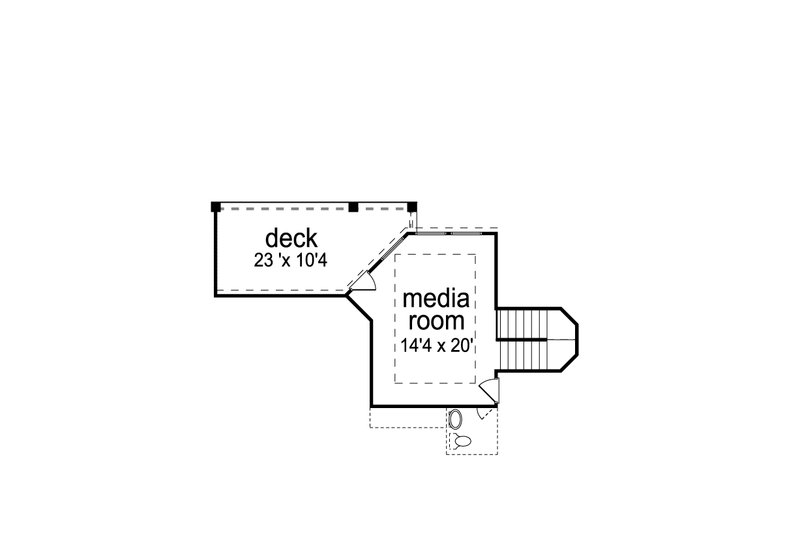

- FLOOR PLAN(S): 1/4" Scale - Electrical and plumbing noted directly on plan(s). Mechanical layouts not included.

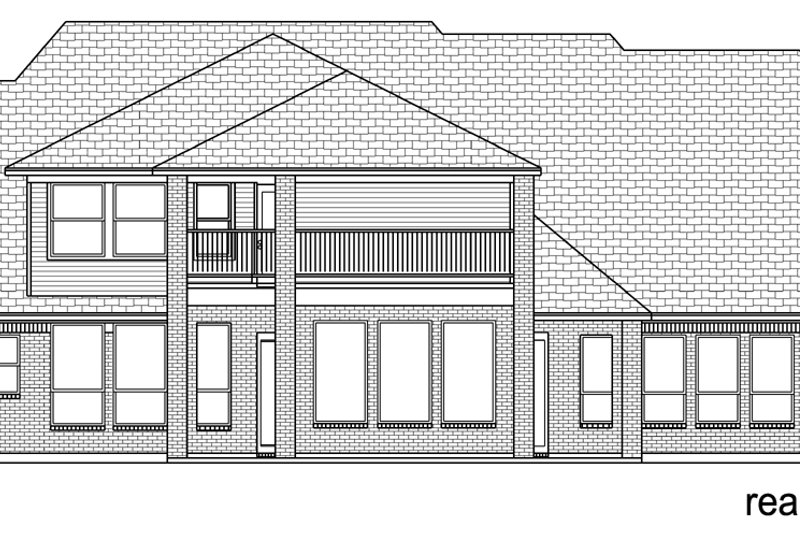

- ELEVATIONS: 1/4" scale rear elevation and 1/8" scale side elevations
- ROOF PLAN: 1/8" scale showing hips, peaks and valleys of roof. Information noted on Elevations page.
- STANDARD DETAIL PAGE: Shows typical building section (not necessarily specific to this plan), and building code notes.
Plan Set
$1025.00
$1150.00
$1250.00
$1250.00
$2050.00
$900.00
Foundation
$0.00
$0.00
Additional Options
$200.00
$50.00
$100.00
$39.00
$200.00
$75.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
