PLAN 417-558
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 113' 6"
Height : 30' 2"
Width : 94'
Area
Deck: 286 sq/ft
First Floor: 3146 sq/ft height 10'
Garage: 847 sq/ft
Patio: 716 sq/ft
Porch: 400 sq/ft
Second Floor: 290 sq/ft
Roof
Primary Pitch : 10:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Block
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Butler's Pantry
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Loft
Main Floor Laundry
Master Sitting Area
Unfinished Future Space
Outdoor Spaces
Balcony
Courtyard
Outdoor Kitchen Grill
Rooms
3rd BR Closet:
35 sq/ft width 5' 11" x depth 6'
Bathroom 2:
259 sq/ft width 18' 1" x depth 14' 4"
Bathroom 3:
140 sq/ft width 11' 8" x depth 12'
Bathroom 4:
40 sq/ft width 5' 4" x depth 7' 8"
Bedroom 2:
281 sq/ft width 19' 2" x depth 14' 8"
Bedroom 2 Closet:
36 sq/ft width 6' 4" x depth 5' 10"
Bedroom 3:
345 sq/ft width 23' x depth 15'
Bedroom 3 Closet:
36 sq/ft width 6' x depth 6'
Bedroom 4 Closet:
37 sq/ft width 4' 10" x depth 7' 8"
Bonus Room - Finished:
195 sq/ft width 12' x depth 16' 4"
Deck:
241 sq/ft width 11' 8" x depth 20' 8"
Dining Room:
177 sq/ft width 12' 8" x depth 14'
Foyer:
82 sq/ft width 7' 9" x depth 10' 8"
Garage:
498 sq/ft width 23' x depth 21' 8"
Garage Two:
326 sq/ft width 14' x depth 23' 4"
Gathering Room:
340 sq/ft width 17' x depth 20'
Guest Bathroom:
40 sq/ft width 5' 4" x depth 7' 8"
Guest Suite:
144 sq/ft width 14' x depth 10' 4"
Kitchen:
227 sq/ft width 21' x depth 10' 10"
Laundry Room:
52 sq/ft width 6' 10" x depth 7' 8"
Master Bathroom:
185 sq/ft width 11' 4" x depth 16' 4"
Master Bedroom:
310 sq/ft width 14' 8" x depth 21' 2"
Master Closet:
93 sq/ft width 10' x depth 9' 4"
Master Closet Two:
77 sq/ft width 9' x depth 8' 7"
Nook:
161 sq/ft width 15' 8" x depth 10' 4"
Pantry:
43 sq/ft width 5' x depth 8' 9"
Parlor:
153 sq/ft width 12' x depth 12' 10"
Patio:
623 sq/ft width 68' x depth 9' 2"
Pool Bath:
31 sq/ft width 6' x depth 5' 4"
Porch - Front:
660 sq/ft width 30' x depth 22'
Powder Room:
28 sq/ft width 5' 4" x depth 5' 4"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

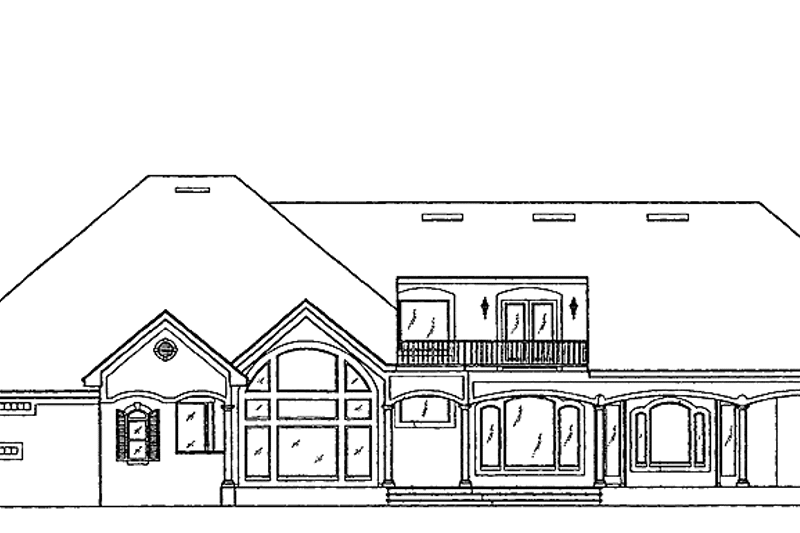

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

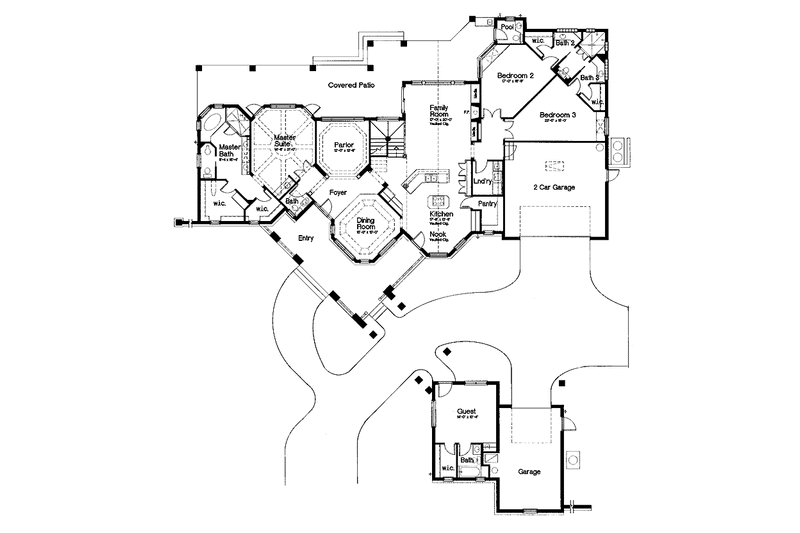

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$1450.00
$1650.00
$1800.00
$2900.00
$800.00
Foundation
$0.00
Framing
$0.00
Additional Options
$50.00
$100.00
$39.00
$200.00
$85.00
$30.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
