PLAN 70-1144
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 88' 9"
Height : 34' 5"
Width : 77' 8"
Area
First Floor: 2319 sq/ft height 10' 1"
Garage: 860 sq/ft
Second Floor: 1303 sq/ft height 9' 1"
Ceiling
Ceiling Details : 10'. Entry/Grt Rm 2-Story, Master Bdrm 10' Step
Lower Ceiling : 10'
Upper Ceiling Ft : 9'
Roof
Primary Pitch : 10:12
Roof Framing : Truss
Roof Load : 47 psf
Roof Type : Asphalt
Secondary Pitch : 8:12
Exterior Wall Framing
Exterior Wall Finish : Stone, Siding
Framing : 2x6
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Loft
Sunroom
Unfinished Future Space
Upstairs Laundry
Garage Features
Rear Entry Garage
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Balcony
Covered Front Porch
Covered Rear Porch
Screened Porch
More
Jack & Jill Bath
Rooms

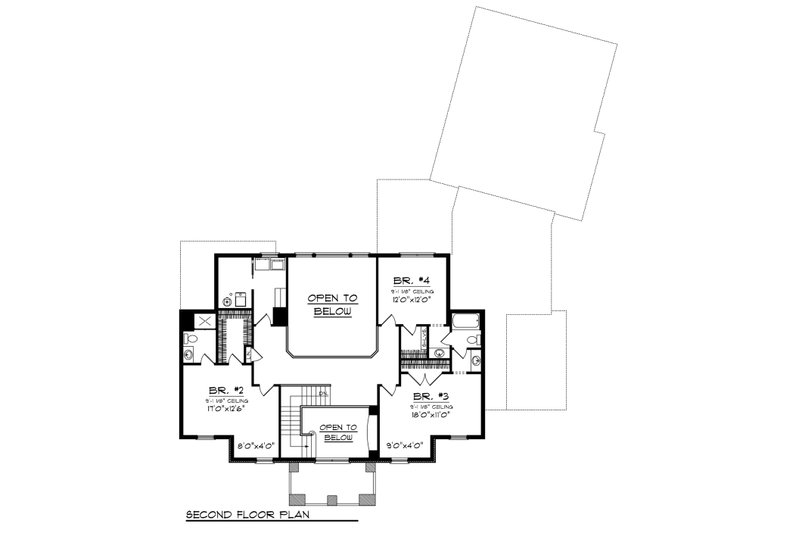

Bedroom 2:
width 17' x depth 12' 6"
Bedroom 2 Sitting Area:
width 8' x depth 4'
Bedroom 3:
width 18' x depth 11'
Bedroom 3 Sitting Area:
width 9' x depth 4'
Bedroom 4:
width 12' x depth 12'
Computer Nook:
width 9' x depth 11'
Dining Area:
width 12' 6" x depth 15'

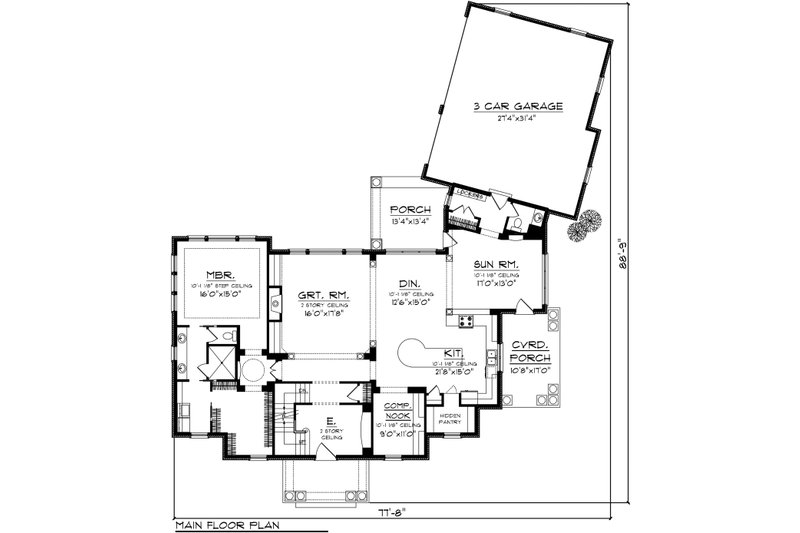

Garage:
860 sq/ft width 27' 4" x depth 31' 4"
Great Room:
width 16' x depth 17' 8"
Kitchen:
width 21' 8" x depth 15'
Master Bedroom:
width 16' x depth 15'
Rear Porch:
width 13' 4" x depth 13' 4"
Side Porch:
width 10' 8" x depth 17'
Sunroom:
width 17' x depth 13'
What's Included In This Plan Set
- Cover sheet with front rendering
- Foundation and floor plans at 1/4" = 1' scale
- Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
- Building sections and details as required to construct the individual design
- Interior elevation of cabinets at 1/4" = 1' scale
- Roof plans
- Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
- Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
- Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
Plan Set
$1630.00
$1703.00
$2101.00
$2101.00
$3369.00
Foundation
$0.00
$395.00
$395.00
Additional Options
$395.00
$80.00
$100.00
$395.00
$39.00
$75.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
