Key Specs
3655
sq ft
5
Beds
3.5
Baths
2
Floors
2
Garages
Phone: 1-866-445-9085
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 417-765
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description

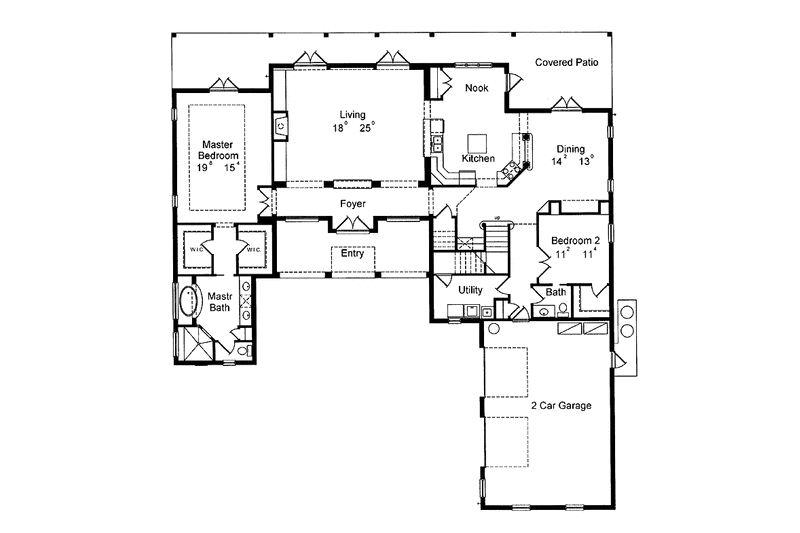

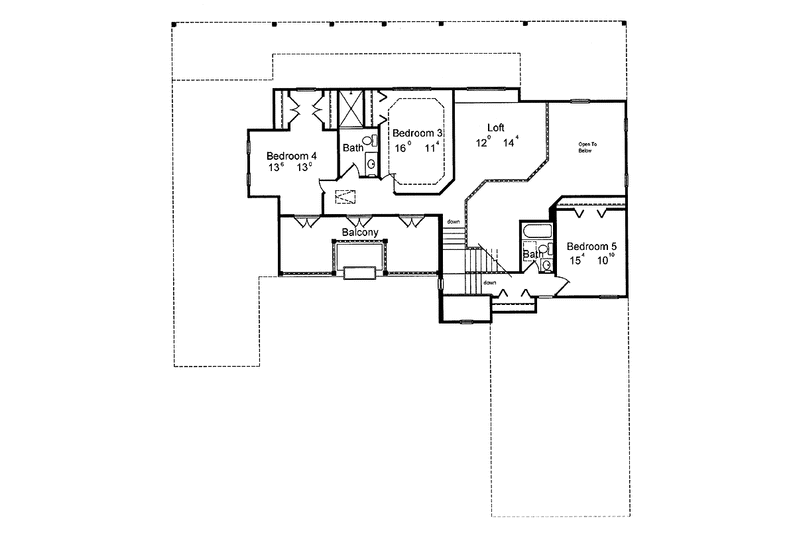

Floor Plans
Full Specs & Features
Dimension
Depth : 77' 4"
Height : 29'
Width : 71'
Area
First Floor: 2443 sq/ft
Second Floor: 1212 sq/ft
Roof
Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : Tile
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Block
Bedroom Features
Fireplace
Formal Dining Room
Main Floor Master Bedroom
Split Bedrooms
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Additional Room Features
Loft
Main Floor Laundry
Outdoor Spaces
Balcony
Courtyard
Rooms
3rd BR Closet:
11 sq/ft width 2' x depth 5' 8"
Bathroom 3:
79 sq/ft width 6' x depth 13' 4"
Bedroom 2:
127 sq/ft width 11' 4" x depth 11' 3"
Bedroom 2 Closet:
30 sq/ft width 5' 10" x depth 5' 2"
Bedroom 3:
181 sq/ft width 11' 4" x depth 16'
Bedroom 3 Closet:
30 sq/ft width 5' 10" x depth 5' 2"
Bedroom 4:
177 sq/ft width 13' 8" x depth 13'
Bedroom 4 Closet:
12 sq/ft width 2' x depth 6'
Breakfast Room:
83 sq/ft width 10' x depth 8' 4"
Dining Room:
218 sq/ft width 13' 6" x depth 16' 2"
Foyer:
115 sq/ft width 24' 8" x depth 4' 8"
Garage:
609 sq/ft width 20' 4" x depth 30'
Kitchen:
161 sq/ft width 15' 2" x depth 10' 8"
Laundry Room:
84 sq/ft width 12' x depth 7'
Living Room:
437 sq/ft width 24' 4" x depth 18'
Master Bathroom:
164 sq/ft width 12' x depth 13' 8"
Master Bedroom:
321 sq/ft width 15' 4" x depth 21'
Master Closet:
44 sq/ft width 5' 6" x depth 8'
Porch - Front:
205 sq/ft width 24' 8" x depth 8' 4"
Porch - Rear:
173 sq/ft width 16' 8" x depth 10' 5"
Powder Room:
31 sq/ft width 6' 2" x depth 5' 2"
Study:
243 sq/ft width 14' 4" x depth 17'
Walk-In Closet:
44 sq/ft width 5' 6" x depth 8'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

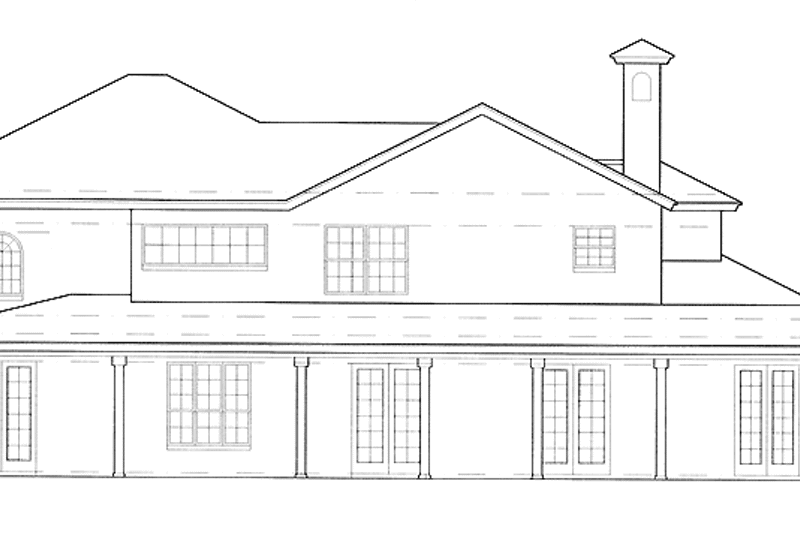

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$1450.00
$1650.00
$1800.00
$2900.00
$800.00
Foundation
$0.00
Framing
$0.00
Additional Options
$50.00
$100.00
$39.00
$200.00
$30.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
