Key Specs
3657
sq ft
4
Beds
3
Baths
2
Floors
2
Garages
Phone: 1-866-445-9085
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 15-389
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description

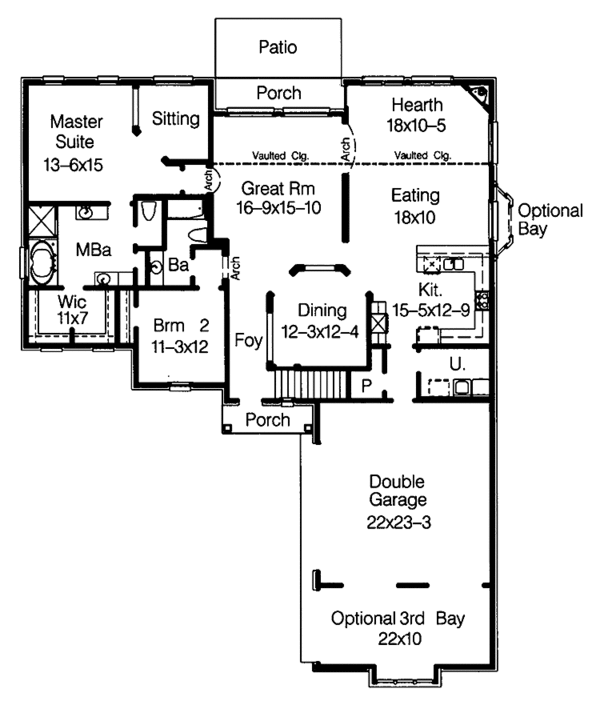

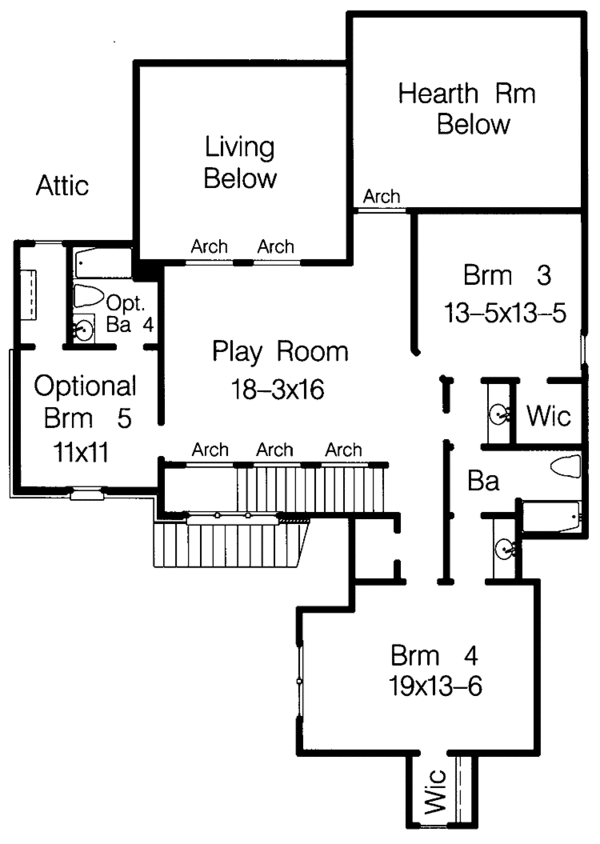

Floor Plans
Full Specs & Features
Dimension
Depth : 78'
Height : 34'
Width : 61'
Area
Bonus: 53 sq/ft
First Floor: 2349 sq/ft height 9'
Garage: 585 sq/ft height 9'
Porch: 107 sq/ft
Second Floor: 1308 sq/ft height 9'
Roof
Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Formal Dining Room
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Additional Room Features
Family Room Keeping Room
Great Room Living Room
Outdoor Spaces
Courtyard
Covered Front Porch
Rooms
Bedroom 2:
135 sq/ft width 11' 3" x depth 12'
Bedroom 3:
180 sq/ft width 13' 5" x depth 13' 5"
Bedroom 4:
256 sq/ft width 19' x depth 13' 6"
Bedroom 5:
121 sq/ft width 11' x depth 11'
Dining Room:
151 sq/ft width 12' 3" x depth 12' 4"
Eating:
180 sq/ft width 18' x depth 10'
Garage:
511 sq/ft width 22' x depth 23' 3"
Garage Two:
220 sq/ft width 22' x depth 10'
Great Room:
265 sq/ft width 16' 9" x depth 15' 10"
Hearth Room:
187 sq/ft width 18' x depth 10' 5"
Kitchen:
196 sq/ft width 15' 5" x depth 12' 9"
Master Suite:
202 sq/ft width 13' 6" x depth 15'
Play Room:
292 sq/ft width 18' 3" x depth 16'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$916.00
$996.00
$1145.00
$1145.00
$1915.00
$866.00
Foundation
$0.00
$0.00
Framing
$0.00
Additional Options
$60.00
$100.00
$39.00
$200.00
$55.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
