Key Specs
3660
sq ft
5
Beds
3.5
Baths
2
Floors
3
Garages
Phone: 1-866-445-9085
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 70-1185
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description

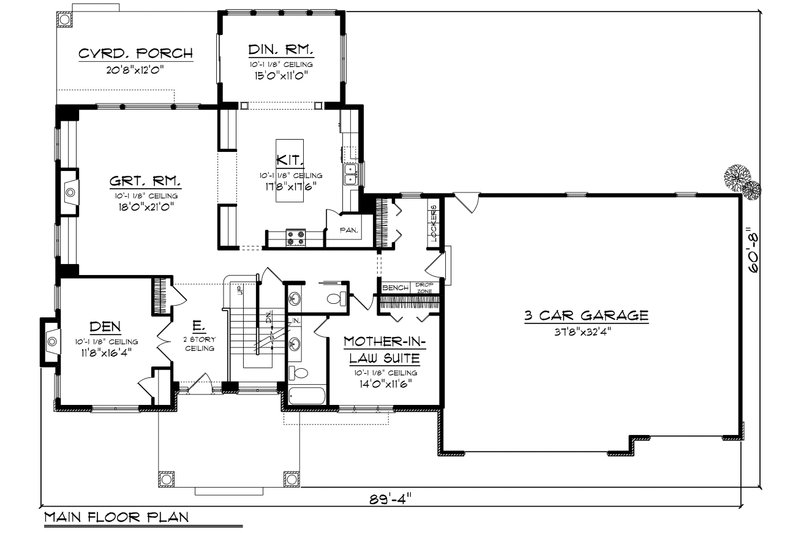

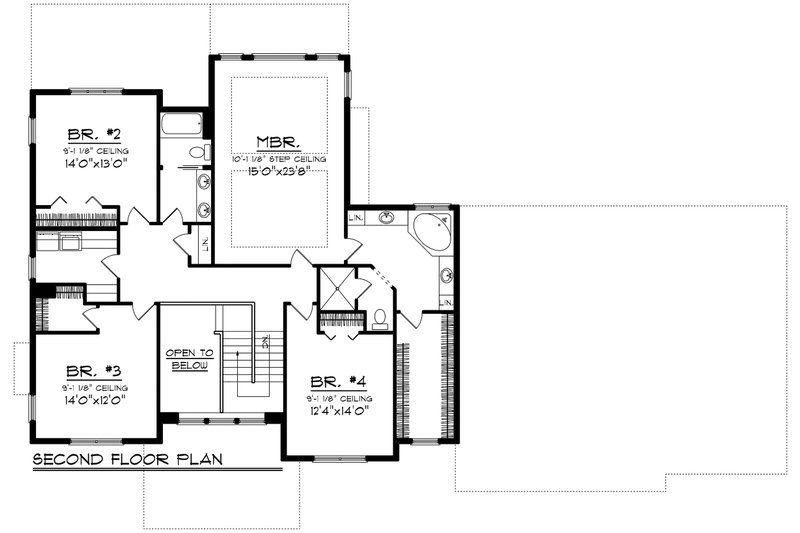

Floor Plans
Full Specs & Features
Dimension
Depth : 60' 8"
Height : 33' 3"
Width : 89' 4"
Area
First Floor: 1961 sq/ft height 10' 1"
Garage: 1227 sq/ft
Second Floor: 1699 sq/ft height 9' 1"
Ceiling
Ceiling Details : Entry 2-Story,Master Bdrm 10' Step
Lower Ceiling : 9'
Main Ceiling : 10'
Upper Ceiling Ft : 9'
Roof
Primary Pitch : 12:12
Roof Framing : Truss
Roof Load : 47 psf
Roof Type : Asphalt
Secondary Pitch : 8:12
Exterior Wall Framing
Exterior Wall Finish : Siding, Shake, Stone
Framing : 2x6
Bedroom Features
Guest Suite
Main Floor Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Mud Room
Unfinished Future Space
Upstairs Laundry
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
Bath 2:
width 5' x depth 11' 6"
Bedroom 2:
width 14' x depth 13'
Bedroom 2 Closet:
width 9' 5" x depth 2' 1"
Bedroom 3:
width 14' x depth 12'
Bedroom 3 Closet:
width 5' 7" x depth 5' 3"
Bedroom 4:
width 12' 4" x depth 14'
Bedroom 4 Closet:
width 5' 1" x depth 2' 1"
Covered Front Porch:
width 18' x depth 12' 4"
Covered Rear Porch:
width 20' 8" x depth 12'
Den:
width 11' 8" x depth 16' 4"
Dining Room:
width 15' x depth 11'
Foyer:
width 7' x depth 9' 9"
Garage:
1227 sq/ft width 37' 8" x depth 32' 4"
Great Room:
width 18' x depth 21'
Hall:
width 22' 10" x depth 4' 1"
Hall Bath:
width 6' x depth 12' 9"
Hall Closet 1:
width 2' 1" x depth 4' 7"
Hall Closet 2:
width 2' 1" x depth 6' 3"
In-Law Suite:
width 14' x depth 11' 6"
In-Law Suite Closet:
width 7' 8" x depth 2' 1"
Kitchen:
width 17' 8" x depth 17' 6"
Laundry Room:
width 9' 5" x depth 6' 1"
Master Closet:
width 6' 8" x depth 14' 6"
Master Bath:
width 12' 4" x depth 11' 7"
Master Bedroom:
width 15' x depth 23' 8"
Mud Room:
width 5' 9" x depth 6' 7"
Mud Room Entry:
width 7' 6" x depth 5' 7"
Pantry:
width 6' 1" x depth 4' 3"
Powder Room:
width 7' 7" x depth 3' 6"
What's Included In This Plan Set
- Cover sheet with front rendering
- Foundation and floor plans at 1/4" = 1' scale
- Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
- Building sections and details as required to construct the individual design
- Interior elevation of cabinets at 1/4" = 1' scale
- Roof plans
- Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
- Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
- Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
Plan Set
$1647.00
$1721.00
$2123.00
$2123.00
$3404.00
Foundation
$0.00
$395.00
$395.00
Additional Options
$395.00
$80.00
$100.00
$395.00
$39.00
$75.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
