Key Specs
3774
sq ft
6
Beds
3.5
Baths
2
Floors
2
Garages
Phone: 1-866-445-9085
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 928-25
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 62'
Height : 40'
Width : 78'
Area

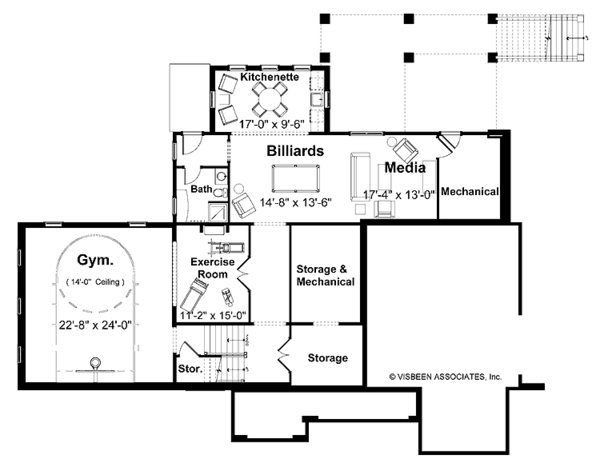

Basement Unfinished: 1119 sq/ft

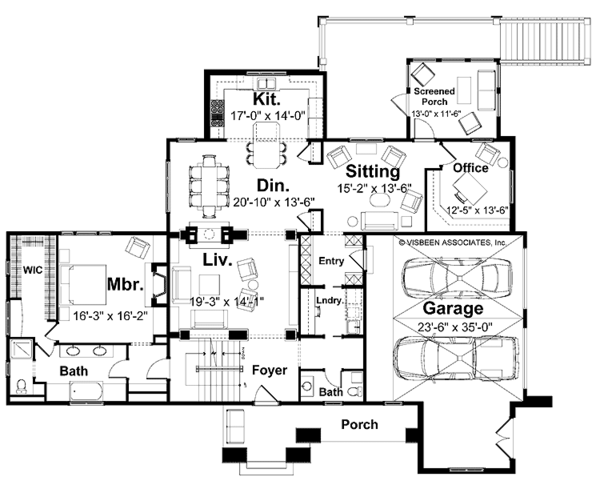

First Floor: 2306 sq/ft

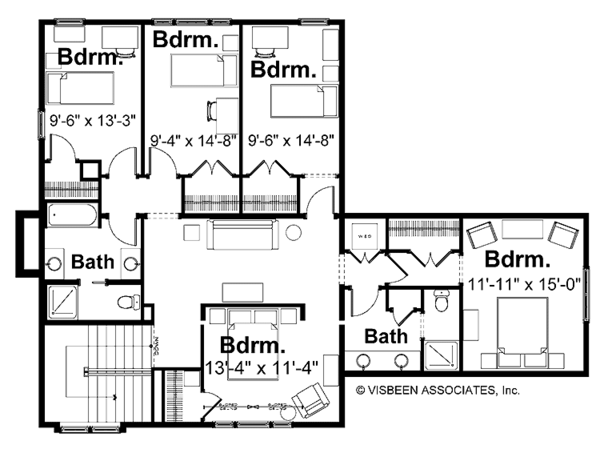

Second Floor: 1468 sq/ft
Roof
Primary Pitch : 16:12
Roof Framing : Truss
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Stone/Stucco
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Additional Room Features
Den Office Study Computer
Exercise Room
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Loft
Main Floor Laundry
Media Room
Mud Room
Open Floor Plan
Sunroom
Unfinished Future Space
Upstairs Laundry
Vaulted / Cathedral Ceilings
Garage Features
Side Entry Garage
Outdoor Spaces
Balcony
Courtyard
Covered Front Porch
Covered Rear Porch
Deck
Grill Deck Sundeck
Screened Porch
Rooms
Bedroom 2:
178 sq/ft width 11' 11" x depth 15'
Bedroom 3:
151 sq/ft width 13' 4" x depth 11' 4"
Bedroom 4:
125 sq/ft width 9' 6" x depth 13' 3"
Bedroom 5:
136 sq/ft width 9' 4" x depth 14' 8"
Bedroom 6:
139 sq/ft width 9' 6" x depth 14' 8"
Billiards Room:
198 sq/ft width 14' 8" x depth 13' 6"
Dining Room:
281 sq/ft width 20' 10" x depth 13' 6"
Exercise Room:
167 sq/ft width 11' 2" x depth 15'
Garage:
822 sq/ft width 23' 6" x depth 35'
Gym:
625 sq/ft width 22' 8" x depth 24'
Kitchen:
238 sq/ft width 17' x depth 14'
Living Room:
271 sq/ft width 19' 3" x depth 14' 1"
Master Bedroom:
262 sq/ft width 16' 3" x depth 16' 2"
Media Room:
225 sq/ft width 17' 4" x depth 13'
Office:
167 sq/ft width 12' 5" x depth 13' 6"
Porch - Screened:
149 sq/ft width 13' x depth 11' 6"
Sitting Area:
204 sq/ft width 15' 2" x depth 13' 6"
What's Included In This Plan Set
Please note: If you are building this plan in the state of Michigan, please give us a call to confirm availability. The designer has some geographic restrictions in Michigan.
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
-
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Important: If you are ordering a CAD set, or Right-Reading Reverse on this plan, please allow two weeks for delivery based on the current design schedule.
Plan Set
$1495.00
$3495.00
Foundation
$0.00
Framing
$0.00
Additional Options
$195.00
$165.00
$395.00
$39.00
$165.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
