Key Specs
4372
sq ft
3
Beds
3
Baths
2
Floors
3
Garages
Phone: 1-866-445-9085
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 1016-17
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 60'
Height : 36'
Width : 104'
Area

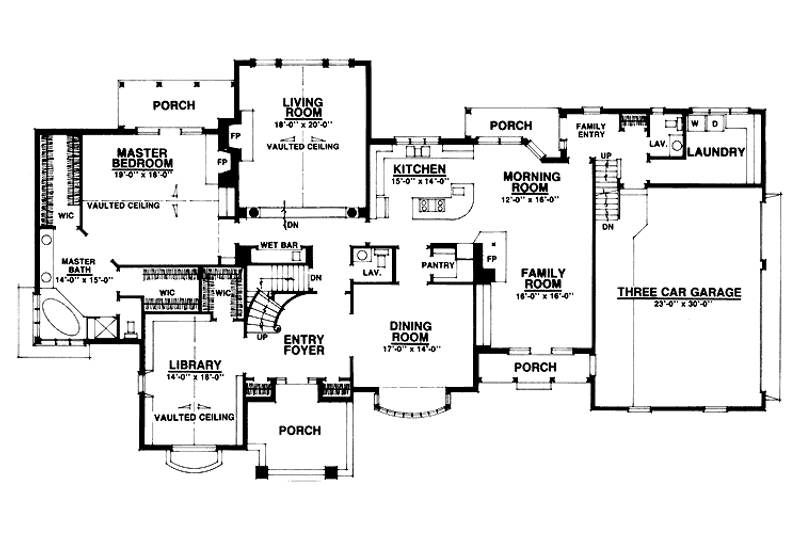

First Floor: 3182 sq/ft height 8'

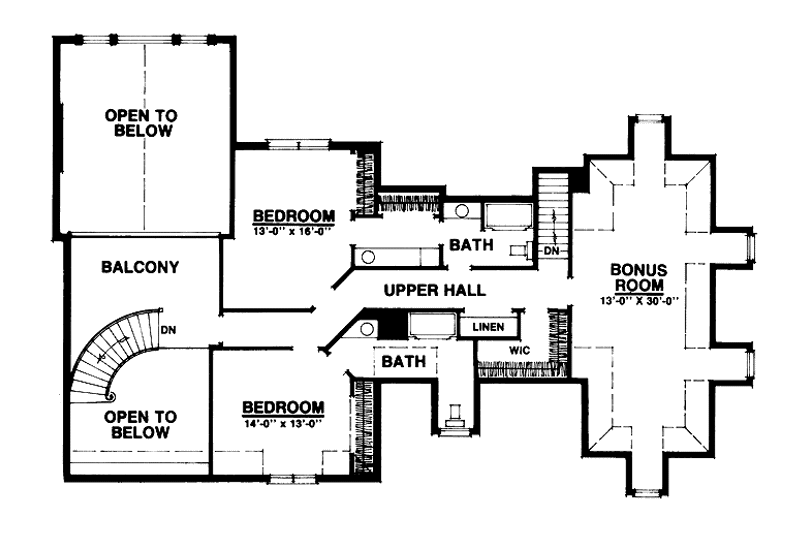

Second Floor: 1190 sq/ft
Roof
Primary Pitch : 12:12
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Outdoor Spaces
Covered Rear Porch
Rooms
3rd BR Closet:
14 sq/ft width 7' 2" x depth 2'
Basement Foundation:
2508 sq/ft width 33' x depth 76'
Bathroom 2:
84 sq/ft width 6' 6" x depth 13'
Bedroom 2 Closet:
60 sq/ft width 6' x depth 10'
Bedroom 3:
202 sq/ft width 16' 2" x depth 12' 6"
Bedroom 3 Closet:
60 sq/ft width 6' x depth 10'
Bedroom 4:
189 sq/ft width 13' 3" x depth 14' 4"
Bedroom 4 Closet:
27 sq/ft width 2' 10" x depth 9' 9"
Bonus Room - Finished:
437 sq/ft width 30' 6" x depth 14' 4"
Dining Room:
238 sq/ft width 14' 2" x depth 16' 10"
Foyer:
171 sq/ft width 12' x depth 14' 4"
Game Room:
237 sq/ft width 17' 2" x depth 13' 10"
Garage:
697 sq/ft width 30' 4" x depth 23'
Gathering Room:
432 sq/ft width 27' x depth 16'
Hall:
width 5' x depth 0"
Hall Bathroom:
55 sq/ft width 6' 6" x depth 8' 6"
Hall Closet:
7 sq/ft width 2' 4" x depth 3' 4"
Kitchen:
210 sq/ft width 14' x depth 15'
Laundry Room:
96 sq/ft width 9' 8" x depth 10'
Master Bathroom:
164 sq/ft width 15' 2" x depth 10' 10"
Master Closet:
74 sq/ft width 5' 10" x depth 12' 10"
Porch - Front:
97 sq/ft width 6' 6" x depth 15'
Porch - Rear:
52 sq/ft width 4' x depth 13' 2"
Powder Room:
26 sq/ft width 4' 8" x depth 5' 7"
Walk-In Closet:
46 sq/ft width 6' x depth 7' 8"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

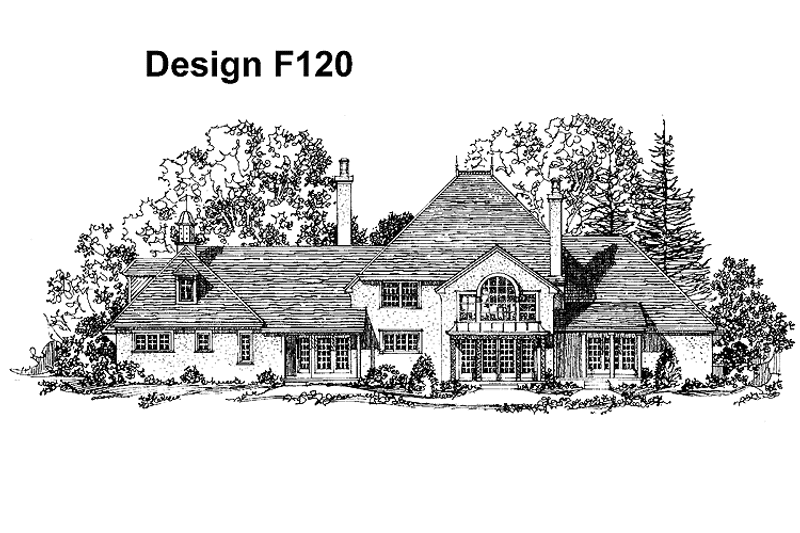

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$1320.00
Foundation
$0.00
Framing
$0.00
Additional Options
$100.00
$39.00
$200.00
$60.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
