PLAN 1037-17

Home > Style > Traditional House Plans

Key Specs

4533
sq ft

5
Beds

4.5
Baths

2
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.

Modify This Plan

Plan Description

This traditional design floor plan is 4533 sq ft and has 5 bedrooms and 4.5 bathrooms.

Floor Plans

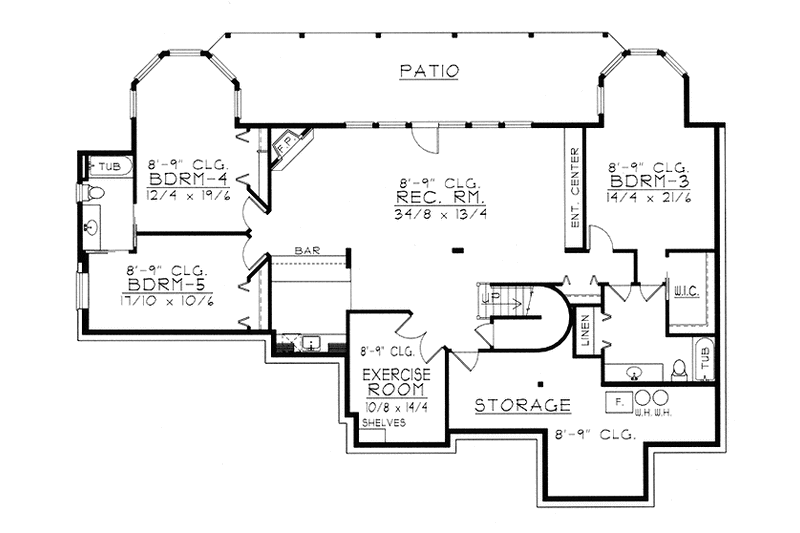

Floor Plan - Lower Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

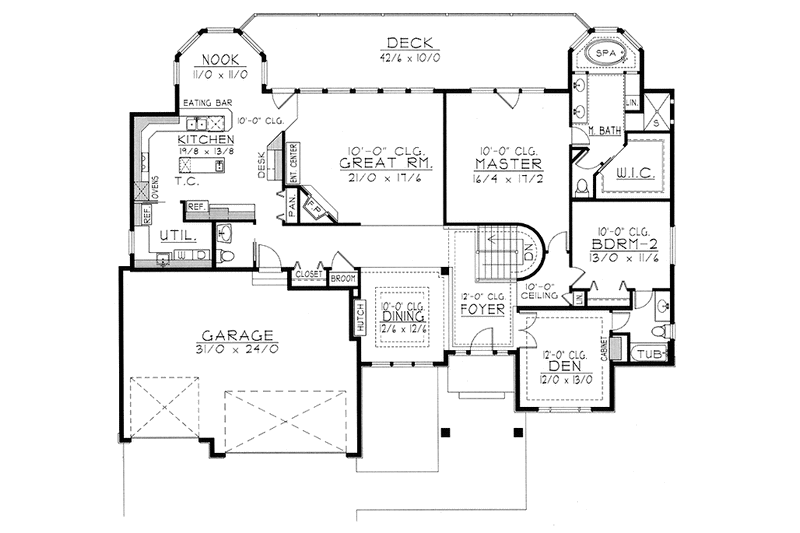

Floor Plan - Main Floor

Reverse

Full Specs & Features

Dimension

Depth : 57'

Height : 22'

Width : 74'

Area

Basement Living: 2048 sq/ft height 8' 10"

Basement Unfinished: 487 sq/ft height 8' 10"

First Floor: 2485 sq/ft height 10'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Roof Framing : Truss

Exterior Wall Framing

Exterior Wall Finish : Siding/Stone

Framing : Wood - 2x6

Bedroom Features

Fireplace

Formal Dining Room

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchen Island

Kitchenette Wet Bar

Additional Room Features

Den Office Study Computer

Exercise Room

Hobby Rec Room Game Room

Main Floor Laundry

Outdoor Spaces

Courtyard

Rooms

Bedroom 2:

149 sq/ft width 13' x depth 11' 6"

Bedroom 3:

308 sq/ft width 14' 4" x depth 21' 6"

Bedroom 4:

240 sq/ft width 12' 4" x depth 19' 6"

Bedroom 5:

187 sq/ft width 17' 10" x depth 10' 6"

Breakfast Nook:

121 sq/ft width 11' x depth 11'

Den:

156 sq/ft width 12' x depth 13'

Dining Room:

156 sq/ft width 12' 6" x depth 12' 6"

Entry:

81 sq/ft width 9' x depth 9'

Exercise Room:

152 sq/ft width 10' 8" x depth 14' 4"

Game Room:

462 sq/ft width 34' 8" x depth 13' 4"

Great Room:

367 sq/ft width 21' x depth 17' 6"

Kitchen:

268 sq/ft width 19' 8" x depth 13' 8"

Master Bathroom:

308 sq/ft width 14' x depth 22'

Master Bedroom:

280 sq/ft width 16' 4" x depth 17' 2"

Storage:

474 sq/ft width 29' 8" x depth 16'

Utility Room:

84 sq/ft width 10' 2" x depth 8' 4"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Questions? Call 1-866-445-9085

Plan Set

5 Copy Set:
$984.00

5 printed plan sets mailed to you.

PDF Set:
$1000.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

8 Copy Set:
$1064.00

8 printed plan sets mailed to you.

CAD Set:
$1808.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Single Set:
$880.00

One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Daylight Basement:
$0.00

Ideal for sloping lot, lower level of home partially underground.

Framing

Wood 2x6:
$0.00

Wood 2x6 Exterior Walls

Additional Options

Right-Reading Reverse:
$160.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets:
$48.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$80.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$31.20

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$160.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets:
$48.00

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
