Plan Description
A neoclassical beauty with a twist: a traditional formal layout is updated with curving stairway dominating the foyer and a family room that is defined by a step instead of walls. Three sets of French doors to the veranda increase the sense of openness. Note the nearby nook containing a wet bar, and the plentiful storage on the first floor. Upstairs, two large family bedrooms share a Jack-and-Jill bath, while a third bedroom with a private bath is perfect for an older child or guests. The spacious master suite features a luxurious bath, a gas fireplace, and a private balcony.
Floor Plans

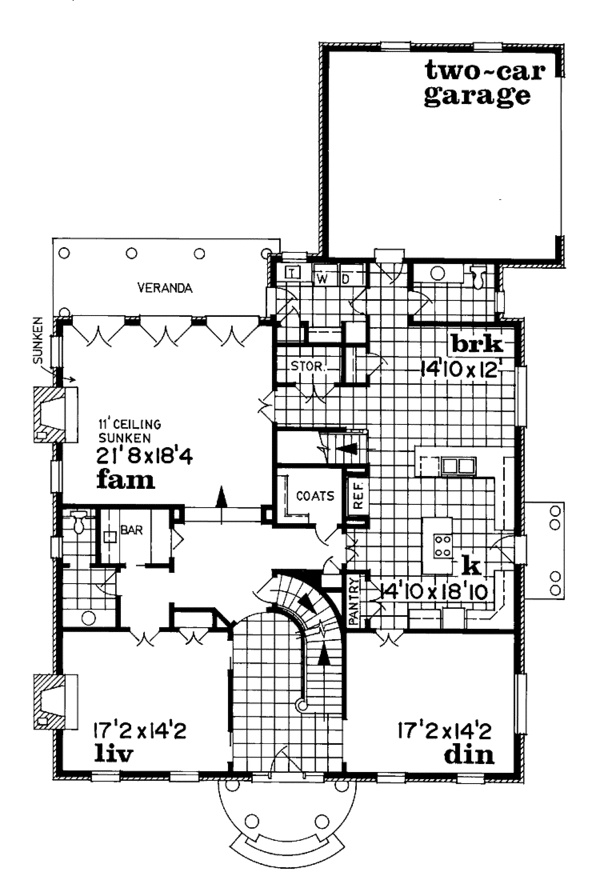

Floor Plan - Main Floor

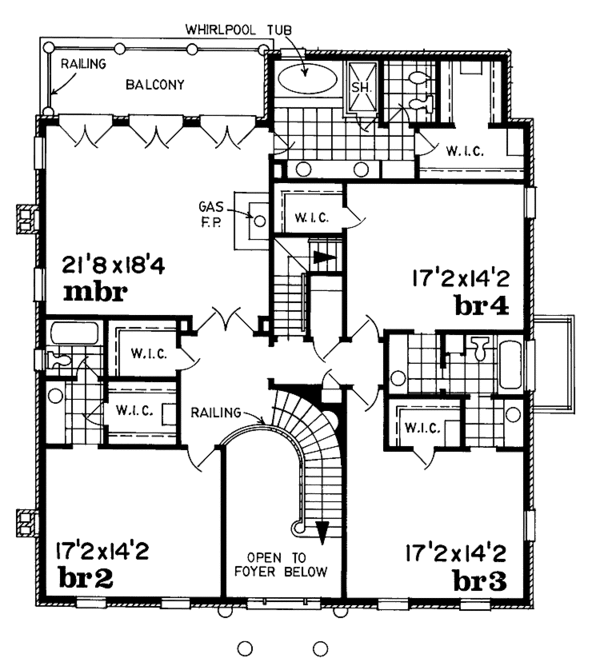

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 79' 8"
Height : 34'
Width : 52' 4"
Area
First Floor: 2345 sq/ft height 10'
Garage: 523 sq/ft
Second Floor: 2201 sq/ft height 8'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Additional Room Features
Family Room Keeping Room
Loft
Outdoor Spaces
Balcony
Rooms
Bedroom 2:
243 sq/ft width 17' 2" x depth 14' 2"
Bedroom 3:
243 sq/ft width 17' 2" x depth 14' 2"
Bedroom 4:
243 sq/ft width 17' 2" x depth 14' 2"
Breakfast:
177 sq/ft width 14' 10" x depth 12'
Family Room:
397 sq/ft width 21' 8" x depth 18' 4"
Garage:
489 sq/ft width 21' x depth 23' 4"
Kitchen:
279 sq/ft width 14' 10" x depth 18' 10"
Living Room:
243 sq/ft width 17' 2" x depth 14' 2"
Master Bedroom:
397 sq/ft width 21' 8" x depth 18' 4"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
