PLAN 1019-1

Photographs may show modified designs.

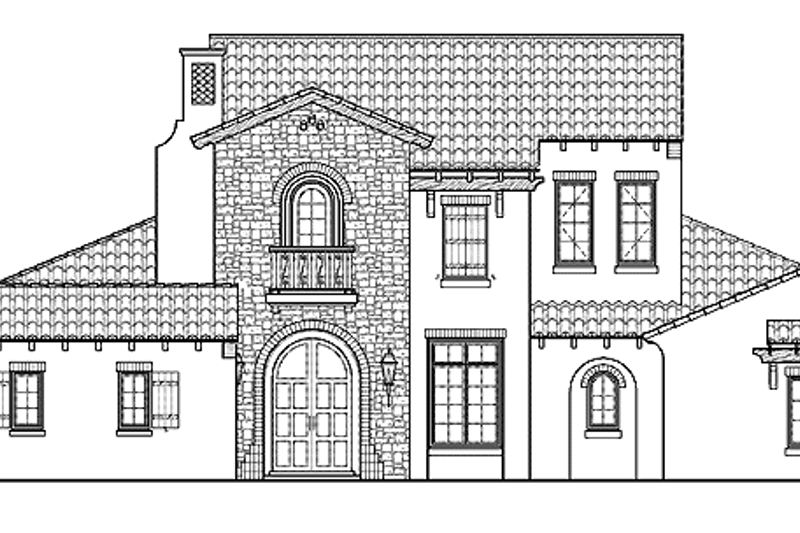

House Blueprint - Mediterranean Exterior - Front Elevation Plan #1019-1

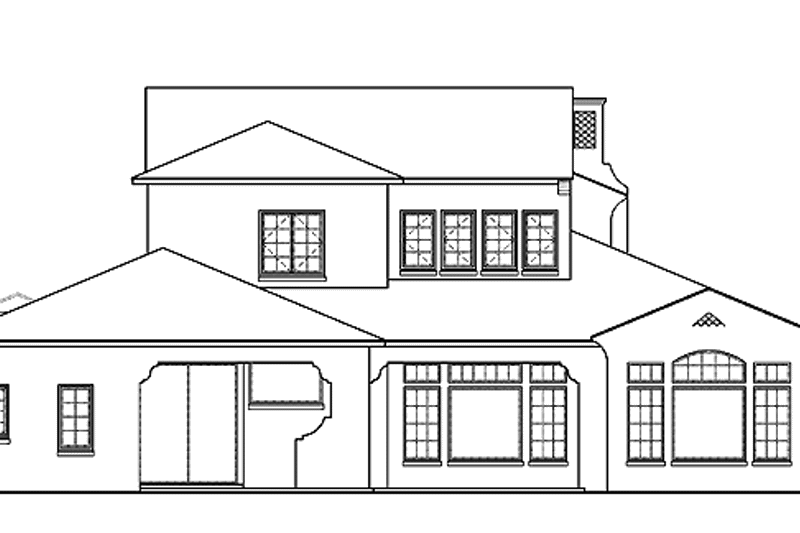

House Blueprint - Mediterranean Exterior - Rear Elevation Plan #1019-1

House Blueprint - Mediterranean Floor Plan - Main Floor Plan #1019-1

House Blueprint - Mediterranean Floor Plan - Upper Floor Plan #1019-1

Jump to:
All (5)
Exterior (3)
Floor plans (2)

Get Personalized Help

Home > Style > Mediterranean House Plans

Key Specs

4818
sq ft

4
Beds

4
Baths

2
Floors

3
Garages

Select Plan Set Options

What's included?

Additional options

Audio Video Design

$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$200.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$750.00

Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

$1300.00

Also order by phone: 1-866-445-9085

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-866-445-9085

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

are Only $4.99
with Code CTB2025 (limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost To Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 1019-1

Home > Style > Mediterranean House Plans

Key Specs

4818
sq ft

4
Beds

4
Baths

2
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.

Modify This Plan

Plan Description

From the cool stone vestibule of this lovely villa a spectacular vista unfolds, of intricately-detailed interior rooms and luxurious outdoor spaces. The home is designed for entertaining both indoors and out. The amazing gourmet kitchen is centrally located to serve both the formal dining room and the casual breakfast nook and family room. A private guest suite is secluded in this wing, while the master suite occupies the opposite side of the house. Upstairs are two additional bedrooms, each with its own bath, and a emdia room with a bar and a balcony.

Floor Plans

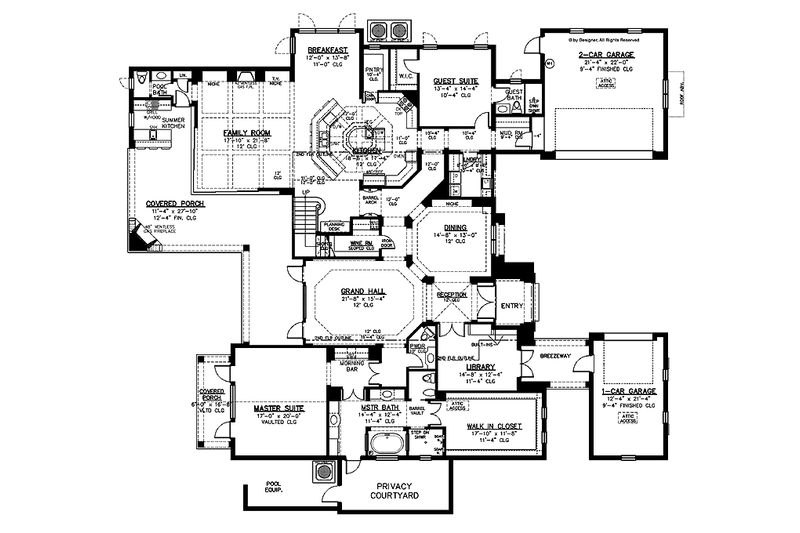

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

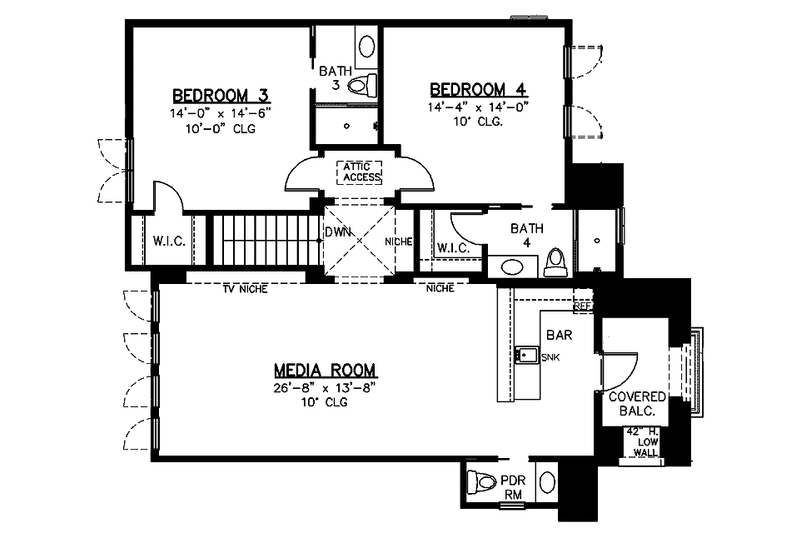

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 99'

Height : 33' 3"

Width : 79' 4"

Area

First Floor: 3610 sq/ft

Garage: 882 sq/ft

Second Floor: 1208 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 5:12

Roof Framing : Truss

Roof Type : Shingle

Secondary Pitch : 4:12

Exterior Wall Framing

Exterior Wall Finish : Stone/Stucco

Framing : Block

Bedroom Features

Formal Dining Room

Guest Suite

Main Floor Master Bedroom

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchen Island

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Main Floor Laundry

Media Room

Mud Room

Storage Area

Outdoor Spaces

Courtyard

Covered Rear Porch

Rooms

Bedroom 3:

205 sq/ft width 14' x depth 14' 8"

Bedroom 4:

200 sq/ft width 14' 4" x depth 14'

Breakfast:

173 sq/ft width 12' 8" x depth 13' 8"

Dining Room:

190 sq/ft width 14' 8" x depth 13'

Family Room:

378 sq/ft width 17' 10" x depth 21' 3"

Garage:

469 sq/ft width 21' 4" x depth 22'

Garage Two:

263 sq/ft width 12' 4" x depth 21' 4"

Grand Salon:

288 sq/ft width 21' 8" x depth 13' 4"

Guest Suite:

191 sq/ft width 13' 4" x depth 14' 4"

Master Bathroom:

176 sq/ft width 14' 4" x depth 12' 4"

Master Suite:

340 sq/ft width 17' x depth 20'

Master Walk-In Closet:

200 sq/ft width 17' 10" x depth 11' 3"

Media Room:

391 sq/ft width 28' 8" x depth 13' 8"

Porch Front:

191 sq/ft

Porch Rear:

815 sq/ft

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Questions? Call 1-866-445-9085

Plan Set

8 Copy Set:
$1300.00

8 printed plan sets mailed to you.

Reproducible Set:
$1750.00

For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set:
$2500.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Single Set:
$1000.00

One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Stem Wall Foundation:
$0.00

Joins the foundation with a house’s vertical walls; often part of stem-wall slab foundation systems, which are constructed like a crawlspace foundation but filled in and compacted, then the slab is poured.

Framing

Block:
$0.00

Concrete Block Exterior Walls (Upper Levels may be wood-framed)

Additional Options

Audio Video Design:
$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$200.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets:
$750.00

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
