PLAN 72-874

Home > Style > Tudor House Plans

Key Specs

4997
sq ft

4
Beds

5
Baths

2
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.

Modify This Plan

Plan Description

In magnificent Tudor style, this home delivers a stunning facade complemented by a most livable floor plan. The living areas include a library, a great hall and a family room (both with fireplaces), and a formal dining room. The island kitchen has a built-in desk and an attached breakfast room with access to a patio. Connecting the main body of the house to the garage is a service area with a full bath and a sizeable laundry/hobby room. Upstairs, there are three family bedrooms, each with a walk-in closet and a private bath. The master suite has a fireplace and His and Hers walk-in closets.

Floor Plans

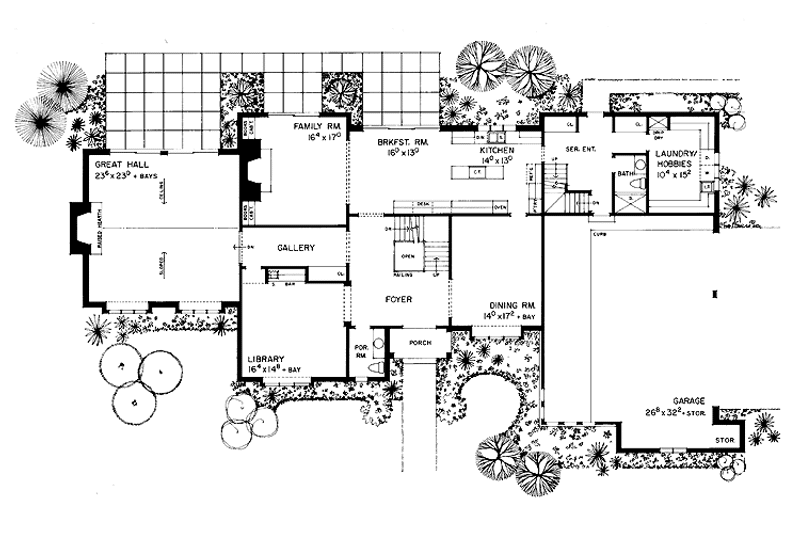

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

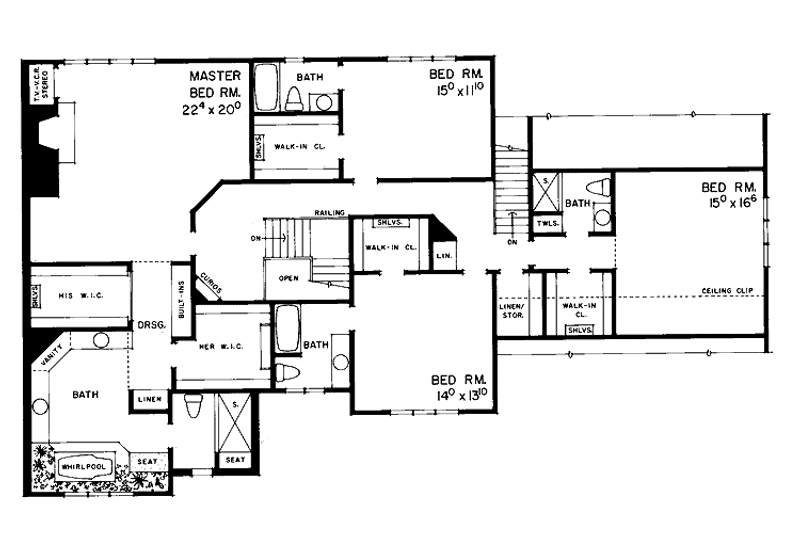

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 53'

Height : 32'

Width : 103'

Area

First Floor: 2740 sq/ft height 8'

Second Floor: 2257 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 9:12

Roof Framing : Truss

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Brick/Stucco

Framing : Wood - 2x6

Bedroom Features

Fireplace

Formal Dining Room

Split Bedrooms

Kitchen Features

Breakfast Nook

Kitchen Island

Kitchenette Wet Bar

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Great Room Living Room

Loft

Main Floor Laundry

Open Floor Plan

Storage Area

Garage Features

Side Entry Garage

Outdoor Spaces

Balcony

Covered Front Porch

Rooms

3rd BR Closet:

39 sq/ft width 5' 4" x depth 7' 6"

Bathroom 2:

63 sq/ft width 7' 6" x depth 8' 6"

Bathroom 3:

41 sq/ft width 4' 10" x depth 8' 6"

Bedroom 2:

177 sq/ft width 15' x depth 11' 10"

Bedroom 2 Closet:

55 sq/ft width 6' 6" x depth 8' 6"

Bedroom 3:

193 sq/ft width 14' x depth 13' 10"

Bedroom 3 Closet:

55 sq/ft width 6' 6" x depth 8' 6"

Bedroom 4:

247 sq/ft width 15' x depth 16' 6"

Bedroom 4 Closet:

41 sq/ft width 6' 6" x depth 6' 4"

Bonus Room - Finished:

540 sq/ft width 23' 6" x depth 23'

Breakfast Room:

208 sq/ft width 16' x depth 13'

Crawlspace Foundation:

592 sq/ft width 24' x depth 24' 8"

Den/Office or Bedroom 1:

239 sq/ft width 16' 4" x depth 14' 8"

Dining Room:

240 sq/ft width 14' x depth 17' 2"

Foyer:

255 sq/ft width 15' x depth 17'

Garage:

857 sq/ft width 26' 8" x depth 32' 2"

Garage Storage:

67 sq/ft width 3' 8" x depth 18' 6"

Gathering Room:

277 sq/ft width 16' 4" x depth 17'

Hall:

124 sq/ft width 3' 8" x depth 34'

Hall Bathroom:

45 sq/ft width 5' x depth 9'

Hall Closet:

29 sq/ft width 4' 8" x depth 6' 4"

Kitchen:

182 sq/ft width 14' x depth 13'

Laundry Room:

156 sq/ft width 10' 4" x depth 15' 2"

Master Bathroom:

358 sq/ft width 22' 2" x depth 16' 2"

Master Bedroom:

446 sq/ft width 22' 4" x depth 20'

Master Closet:

61 sq/ft width 6' 2" x depth 10'

Porch - Front:

45 sq/ft width 4' 8" x depth 9' 8"

Powder Room:

41 sq/ft width 5' 6" x depth 7' 6"

Slab Foundation:

1168 sq/ft width 32' x depth 36' 6"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

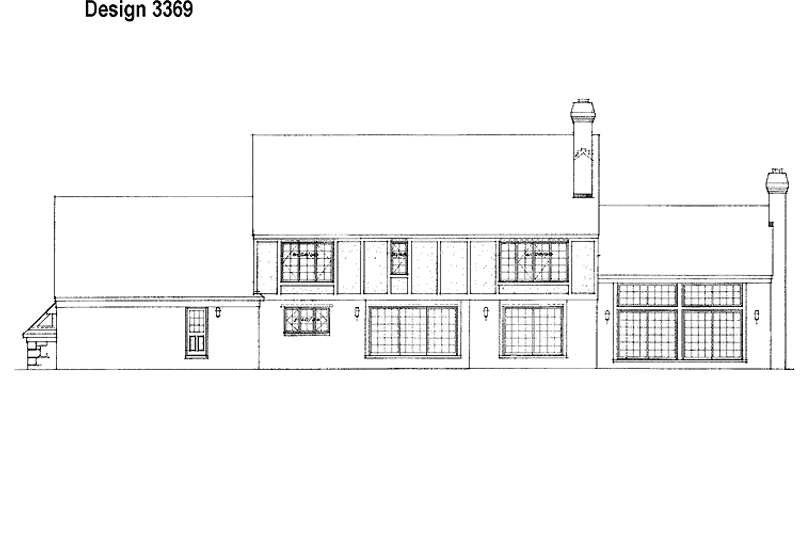

Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Questions? Call 1-866-445-9085

Plan Set

PDF Set:
$1491.60

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set:
$1623.60

5 printed plan sets mailed to you.

8 Copy Set:
$1755.60

8 printed plan sets mailed to you.

Foundation

Basement:
$0.00

Ideal for level lot, lower level of home partially or fully underground.

Crawlspace:
$275.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Daylight Basement:
$275.00

Ideal for sloping lot, lower level of home partially underground.

Slab:
$275.00

Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x6:
$0.00

Wood 2x6 Exterior Walls

Additional Options

Right-Reading Reverse:
$195.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets:
$60.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Additional Use License:
$495.00

Allows you to build one more home for each additional license purchased.

Audio Video Design:
$150.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List:
$395.00

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$150.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Material List:
$85.00

A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.

Mirror Reversed Sets:
$0.00

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

Unlimited Use License:
$995.00

Allows you to build this home as many times as you want.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
