This economical, compact floor plan is perfectly suited for a narrow lot or would minimize the environmental impact of any piece of property. Even though reduced to bare essentials the living area boasts a two story high vaulted ceiling. The living area window wall maximizes all the available views and floods the room with natural light. The sleeping loft shares these same sight lines.
Floor Plans

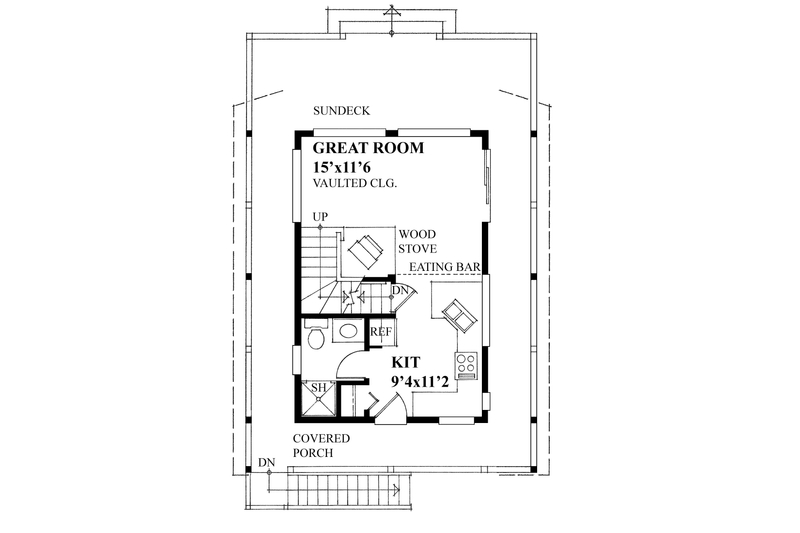

Floor Plan - Main Floor
Floor Plan - Upper Floor
Floor Plan - Other Floor
Full Specs & Features
Dimension
Depth : 36'
Height : 23'
Width : 24'
Area
Main Floor : 384 sq/ft
Upper Floor : 198 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 8'
Roof
Primary Pitch : 12:12
Exterior Wall Framing
Framing : 2"x6"
Additional Room Features
Loft
Outdoor Spaces
Balcony
Covered Front Porch
Covered Rear Porch
Wrap Around Porch
More
Suited For Vacation Home
