PLAN 1073-48
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description
Experience the perfect blend of modern design and Adobe charm with this 660-square-foot ADU. Featuring a stunning 12' tall Great Room, this sleek unit offers an oversized bedroom with a walk-in closet, a spacious ¾ bathroom, and a convenient stacked washer and dryer closet. The 5-piece kitchen, complete with a raised bar and a cozy dining nook, makes it an entertainer's delight. With a dedicated water heater closet, every detail is thoughtfully designed for comfort and efficiency. Ideal for homeowners and real estate investors alike, this elegant ADU is the perfect addition to your backyard, offering a stylish rental income opportunity or a comfortable haven for an elderly parent
Floor Plans

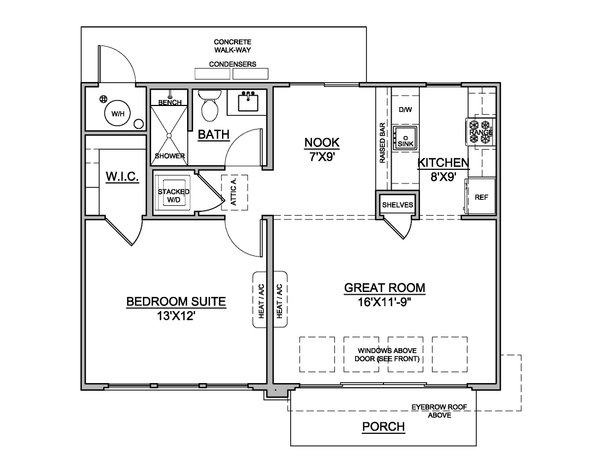

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 22' 6"
Height : 14' 10"
Width : 30'
Area
Main Floor : 660 sq/ft
Porch : 53 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : 12' TALL GREAT ROOM CEILING
Main Ceiling : 8' 1"
Roof
Primary Pitch : 0.25:12
Roof Framing : 2 X 12
Roof Load : 30LL / 15DL
Roof Type : STICK
Exterior Wall Framing
Exterior Wall Finish : STUCCO
Framing : Conventional
Insulation : R-15
Bedroom Features
Walk In Closet
Kitchen Features
Breakfast Nook
Additional Room Features
Main Floor Laundry
Lot Characteristics
Suited For Corner Lot
Suited For Narrow Lot
Suited For View Lot
Zero Lot Lines
Outdoor Spaces
Covered Front Porch
More
Economical To Build
Empty Nester
Suited For Vacation Home
Wheelchair Adaptable
Energy Efficient Features
Energy Efficient Design
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
