PLAN 1066-229
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description
This contemporary design floor plan is 1756 sq ft and has 3 bedrooms and 2 bathrooms.
Floor Plans

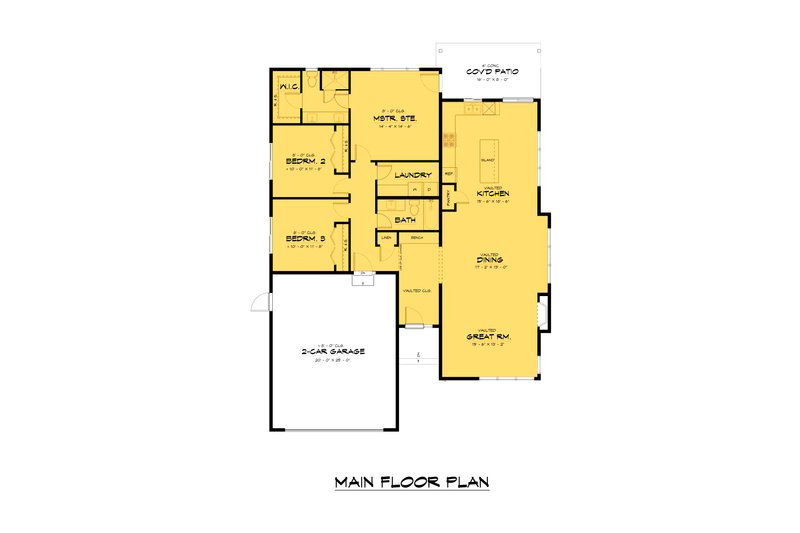

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 59'
Height : 19' 10"
Width : 45' 8"

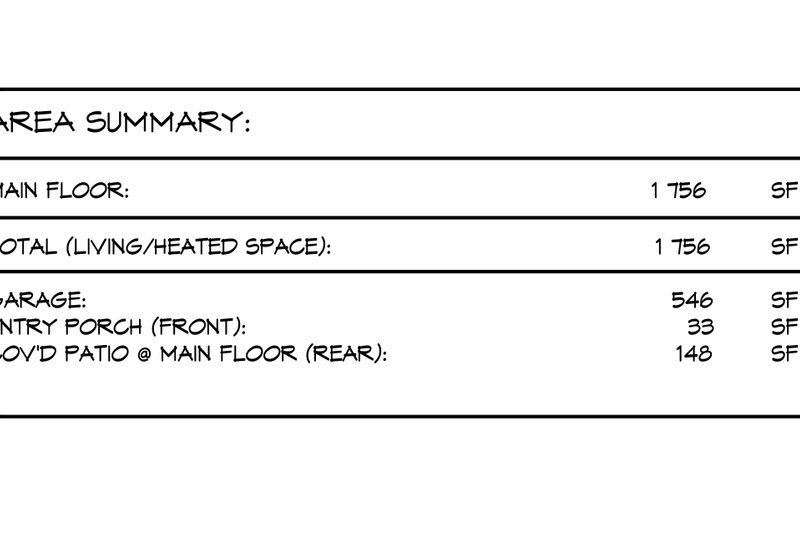

Area
Garage : 546 sq/ft
Main Floor : 1756 sq/ft
Patios : 148 sq/ft
Porch : 33 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 8'
Roof
Primary Pitch : 3/12
Roof Framing : Truss
Secondary Pitch : 5.5/12
Exterior Wall Framing
Framing : 2x6
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Kitchen Island
Additional Room Features
Great Room Living Room
Main Floor Laundry
Garage Features
Front Entry Garage
Lot Characteristics
Suited For Narrow Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
More
Economical To Build
Empty Nester
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
» See important
information before purchasing.
- Cover Sheet: 3D Rendering and Project Information.
- General Foundation notes (Builder and engineer to provide foundation specs based on lot and local code).
- Floor Plans (lower, main, upper, etc.) showing all doors and windows.
- Elevations from all four sides showing material callouts.
- Wall framing and sectional detail sheets.
- Building Cross Sections showing stair and ceiling height details.
- Window and Door schedule.
- Overhead roof plan showing peaks, valleys, and pitch.
- Foundation Plan showing perimeter and footing details.
- Misc. notes and details.
- *Please note that any structural engineering sheets included with this plan set are for reference only.
Questions? Call 1-866-445-9085
Plan Set
PDF Set:
$1000.00
$1000.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy and PDF Set:
$1300.00
$1300.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set:
$1300.00
$1300.00
5 printed plan sets mailed to you.
8 Copy Set:
$1450.00
$1450.00
8 printed plan sets mailed to you.
Eight Copy and PDF Set:
$1450.00
$1450.00
8 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Single Build:
$2000.00
$2000.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Crawlspace:
$0.00
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$300.00
$300.00
Ideal for level lot, single layer concrete poured directly on grade.
Framing
Wood 2x6:
$0.00
$0.00
Wood 2x6 Exterior Walls
Additional Options
Right-Reading Reverse:
$250.00
$250.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Audio Video Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of audio and video components.
Comprehensive Material List:
$295.00
$295.00
A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
Construction Guide:
$39.00
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of lighting fixtures.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
