Key Specs
3010
sq ft
5
Beds
4
Baths
2
Floors
2
Garages
Phone: 1-866-445-9085
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 1066-102
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 40' 6"
Height : 21' 4"
Width : 49' 4"
Area
Garage : 503 sq/ft

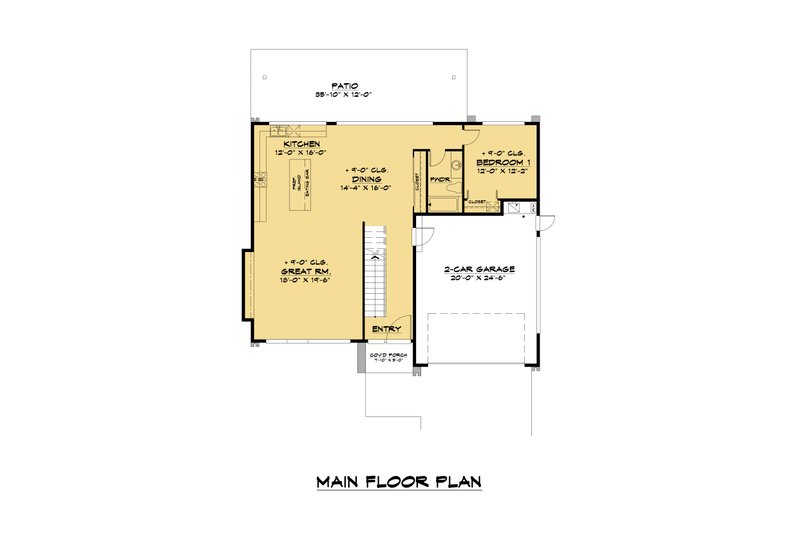

Main Floor : 1302 sq/ft
Patios : 300 sq/ft

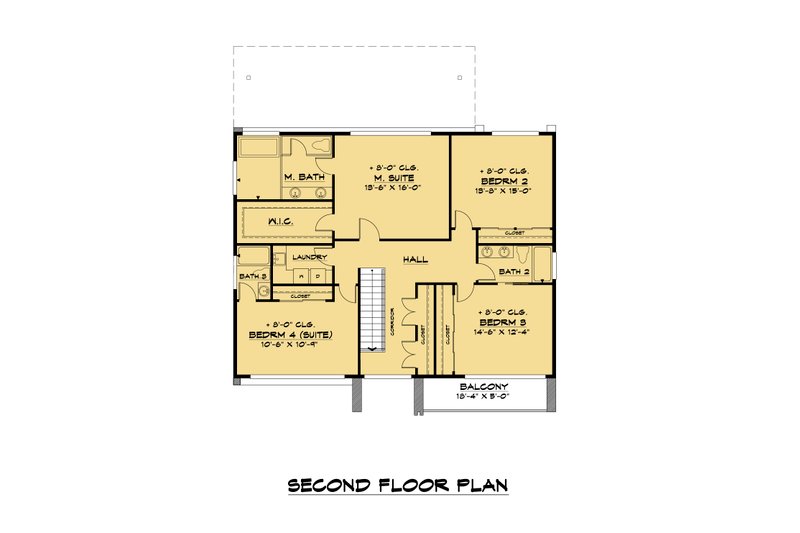

Upper Floor : 1708 sq/ft
Ceiling
Garage Ceiling : 9' 6"
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : .25/12
Roof Framing : Web Trusses
Roof Load : 25 PSF
Roof Type : Waterproof Membrane
Exterior Wall Framing
Exterior Wall Finish : Hardie Panels
Framing : 2X6
Insulation : R21
Bedroom Features
Main Floor Bedrooms
Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Additional Room Features
Great Room Living Room
Upstairs Laundry
Garage Features
Front Entry Garage
Outdoor Spaces
Balcony
Covered Front Porch
What's Included In This Plan Set
- Cover Sheet: 3D Rendering and Project Information.
- General Foundation notes (Builder and engineer to provide foundation specs based on lot and local code).
- Floor Plans (lower, main, upper, etc.) showing all doors and windows.

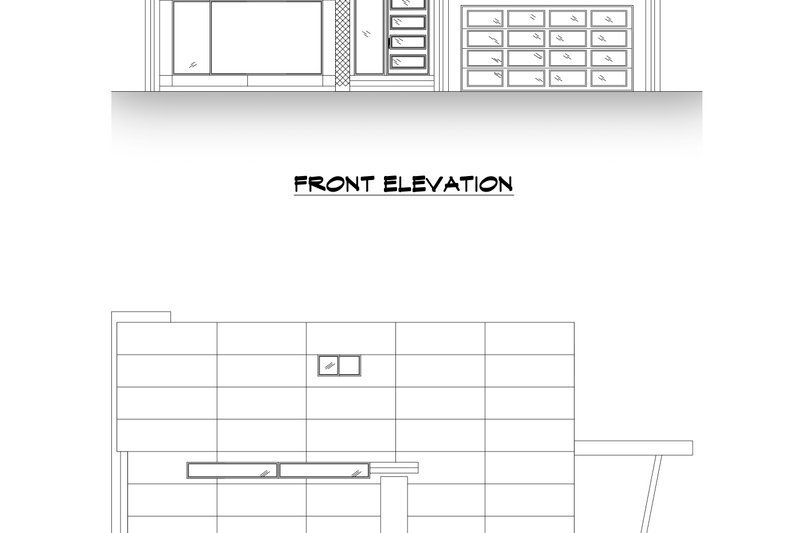

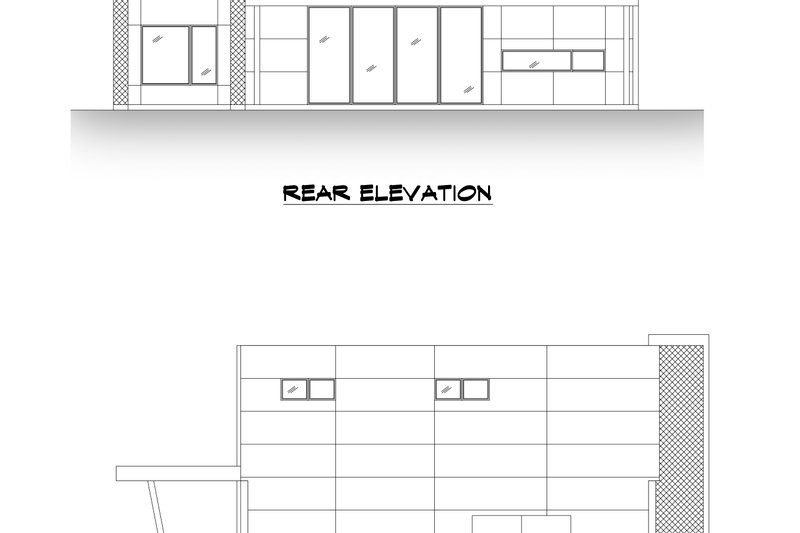

- Elevations from all four sides showing material callouts.
- Wall framing and sectional detail sheets.
- Building Cross Sections showing stair and ceiling height details.
- Window and Door schedule.
- Overhead roof plan showing peaks, valleys, and pitch.
- Foundation Plan showing perimeter and footing details.
- Misc. notes and details.
- *Please note that any structural engineering sheets included with this plan set are for reference only.
Plan Set
$1505.00
$1805.00
$1955.00
$2859.00
Foundation
$0.00
$300.00
Framing
$0.00
Additional Options
$250.00
$165.00
$395.00
$39.00
$165.00
$350.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
