PLAN 47-816

Photographs may show modified designs.

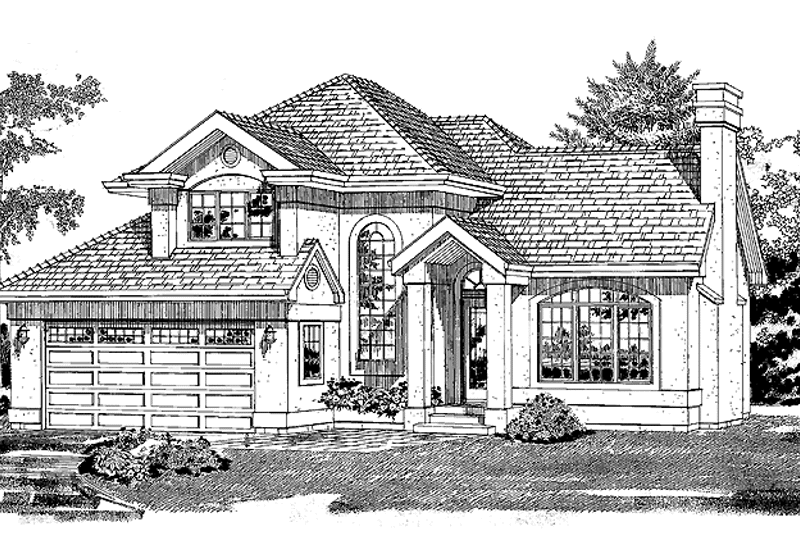

House Blueprint - Mediterranean Exterior - Front Elevation Plan #47-816

House Blueprint - Mediterranean Floor Plan - Main Floor Plan #47-816

House Blueprint - Mediterranean Floor Plan - Upper Floor Plan #47-816

Jump to:
All (5)
Exterior (2)
Floor plans (3)

Get Personalized Help

Home > Style > Mediterranean House Plans

Key Specs

1860
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$195.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$60.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Additional Use License

$495.00

Allows you to build one more home for each additional license purchased.

Audio Video Design

$150.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List

$295.00

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$150.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Material List

$85.00

A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.

Mirror Reversed Sets

$0.00

Printed sets showing plan in reverse, text and dimensions will be backwards.

Unlimited Use License

$995.00

Allows you to build this home as many times as you want.

Subtotal

$1056.00

Also order by phone: 1-866-445-9085

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-866-445-9085

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

are Only $4.99
with Code CTB2025 (limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost To Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 47-816

Home > Style > Mediterranean House Plans

Key Specs

1860
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.

Modify This Plan

Plan Description

Plans for this design include both a contemporary stucco exterior and a traditional brick-and-siding version. The peninsula kitchen blends into a bayed breakfast room and the open family room, which features a fireplace and sliding glass doors to the patio. The second floor includes three bedrooms. The master suite features a private bath with arched access, a whirlpool tub, separate shower, and double vanity. Family bedrooms share a full bath.

Floor Plans

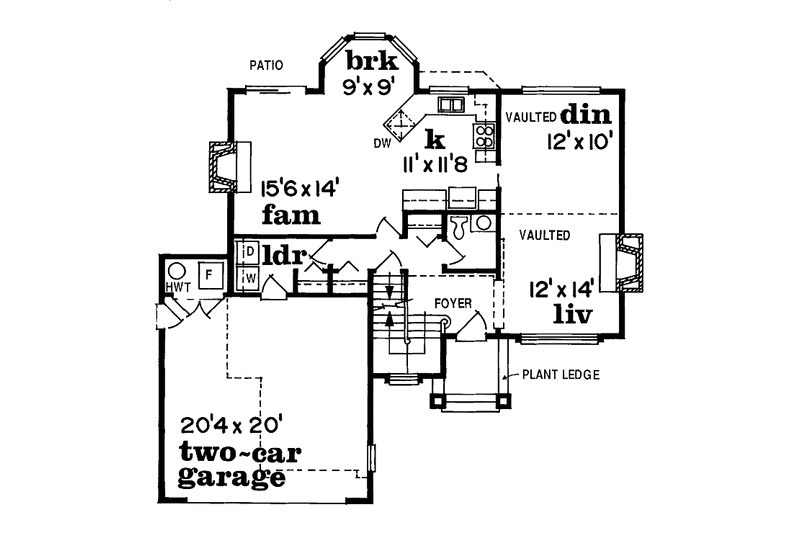

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

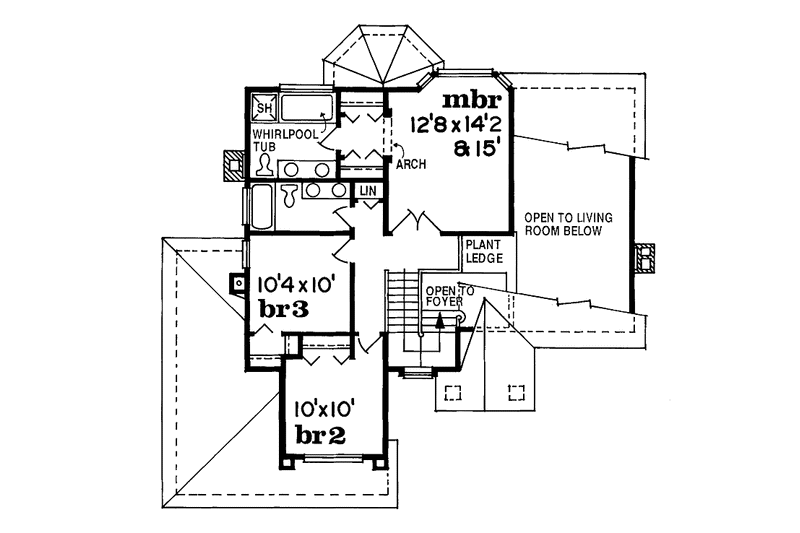

Floor Plan - Upper Floor

Reverse

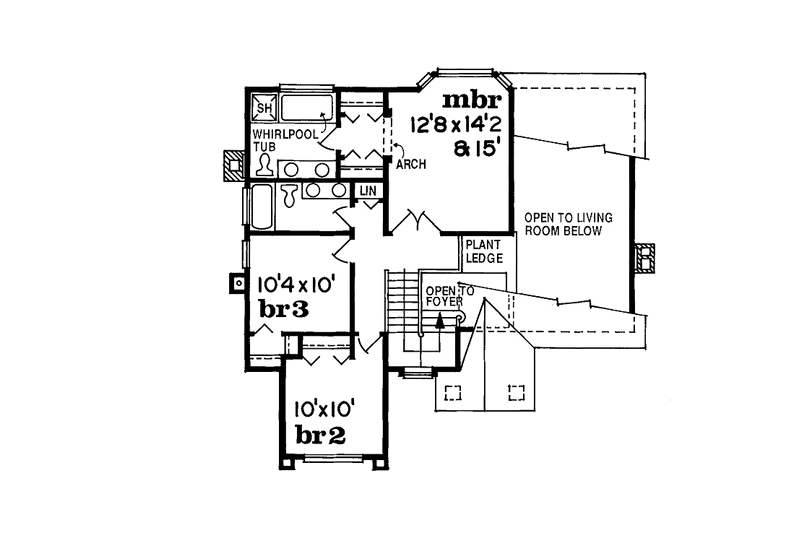

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 47'

Height : 26'

Width : 47'

Area

First Floor: 1023 sq/ft height 8'

Second Floor: 837 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 8:12

Roof Framing : Truss

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : Wood - 2x6

Bedroom Features

Fireplace

Formal Dining Room

Additional Room Features

Family Room Keeping Room

Rooms

3rd BR Closet:

10 sq/ft width 5' x depth 2'

Basement Foundation:

1000 sq/ft width 40' x depth 25'

Bedroom 2:

100 sq/ft width 10' x depth 10'

Bedroom 2 Closet:

10 sq/ft width 5' x depth 2'

Bedroom 3:

103 sq/ft width 10' x depth 10' 4"

Bedroom 3 Closet:

10 sq/ft width 5' x depth 2'

Breakfast Room:

81 sq/ft width 9' x depth 9'

Crawlspace Foundation:

1000 sq/ft width 40' x depth 25'

Dining Room:

120 sq/ft width 12' x depth 10'

Foyer:

54 sq/ft width 9' x depth 6'

Garage:

406 sq/ft width 20' 4" x depth 20'

Gathering Room:

217 sq/ft width 15' 6" x depth 14'

Hall Bathroom:

50 sq/ft width 10' x depth 5'

Hall Closet:

6 sq/ft width 3' 4" x depth 2'

Kitchen:

128 sq/ft width 11' x depth 11' 8"

Living Room:

168 sq/ft width 12' x depth 14'

Master Bathroom:

75 sq/ft width 8' 8" x depth 8' 9"

Master Bedroom:

190 sq/ft width 12' 8" x depth 15'

Master Closet:

9 sq/ft width 4' 6" x depth 2'

Porch - Front:

45 sq/ft width 6' 6" x depth 7'

Powder Room:

30 sq/ft width 5' 6" x depth 5' 7"

Utility Room:

52 sq/ft width 9' 4" x depth 5' 8"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Questions? Call 1-866-445-9085

Plan Set

PDF Set:
$1056.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set:
$1188.00

5 printed plan sets mailed to you.

8 Copy Set:
$1320.00

8 printed plan sets mailed to you.

Reproducible Set:
$1320.00

For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set:
$2112.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Basement:
$0.00

Ideal for level lot, lower level of home partially or fully underground.

Crawlspace:
$0.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Daylight Basement:
$275.00

Ideal for sloping lot, lower level of home partially underground.

Slab:
$275.00

Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x6:
$0.00

Wood 2x6 Exterior Walls

Additional Options

Right-Reading Reverse:
$195.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets:
$60.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Additional Use License:
$495.00

Allows you to build one more home for each additional license purchased.

Audio Video Design:
$150.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List:
$295.00

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$150.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Material List:
$85.00

A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.

Mirror Reversed Sets:
$0.00

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

Unlimited Use License:
$995.00

Allows you to build this home as many times as you want.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
