Key Specs
1991
sq ft
3
Beds
3
Baths
1
Floors
2
Garages
Phone: 1-866-445-9085
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 20-1819
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description

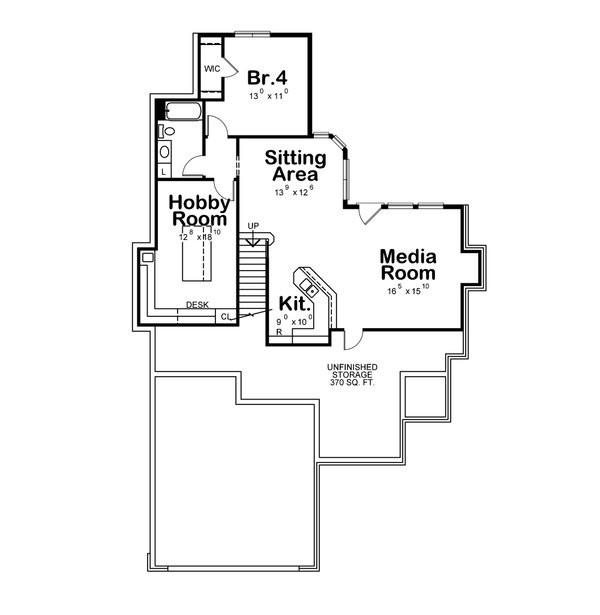

Floor Plans
Full Specs & Features
Dimension
Depth : 70' 8"
Height : 29'
Width : 46' 8"
Area

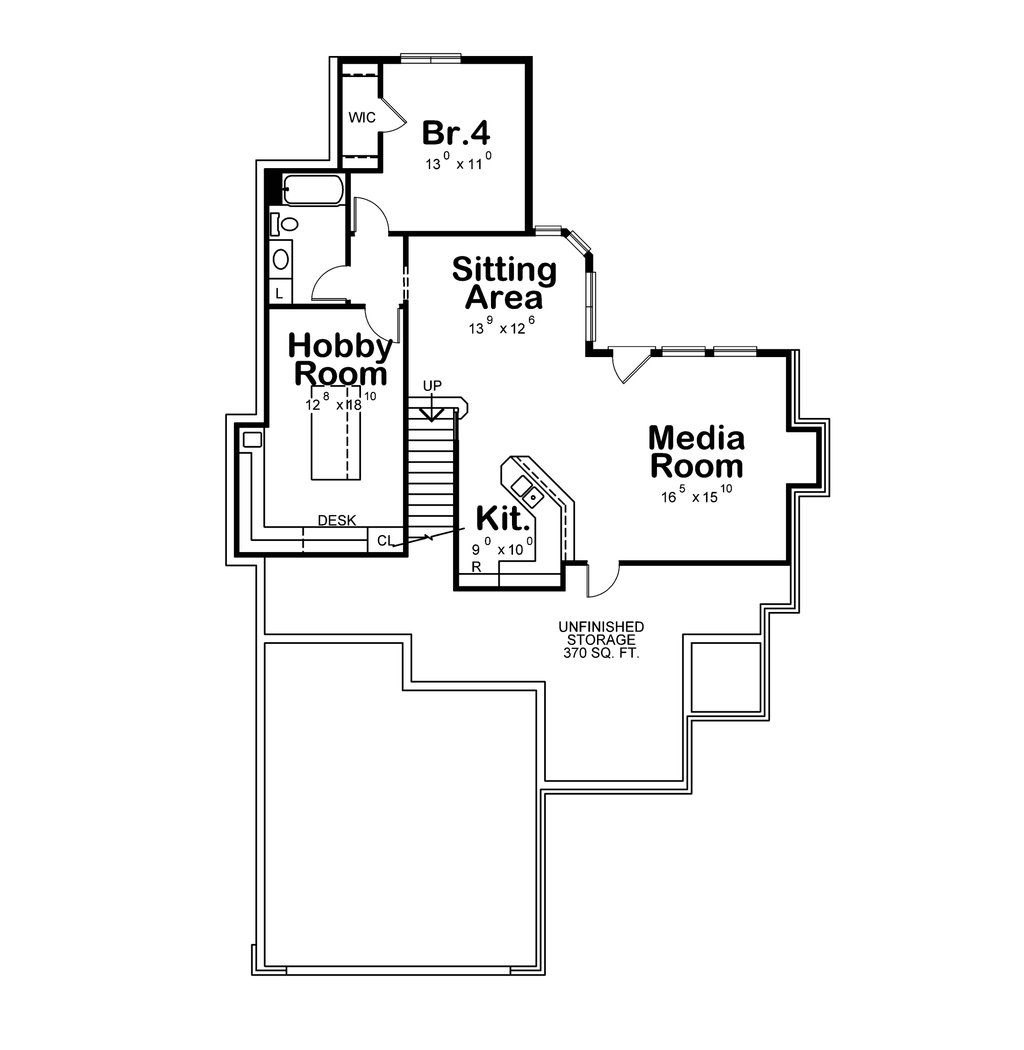

Basement Unfinished: 708 sq/ft
Bonus: 82 sq/ft

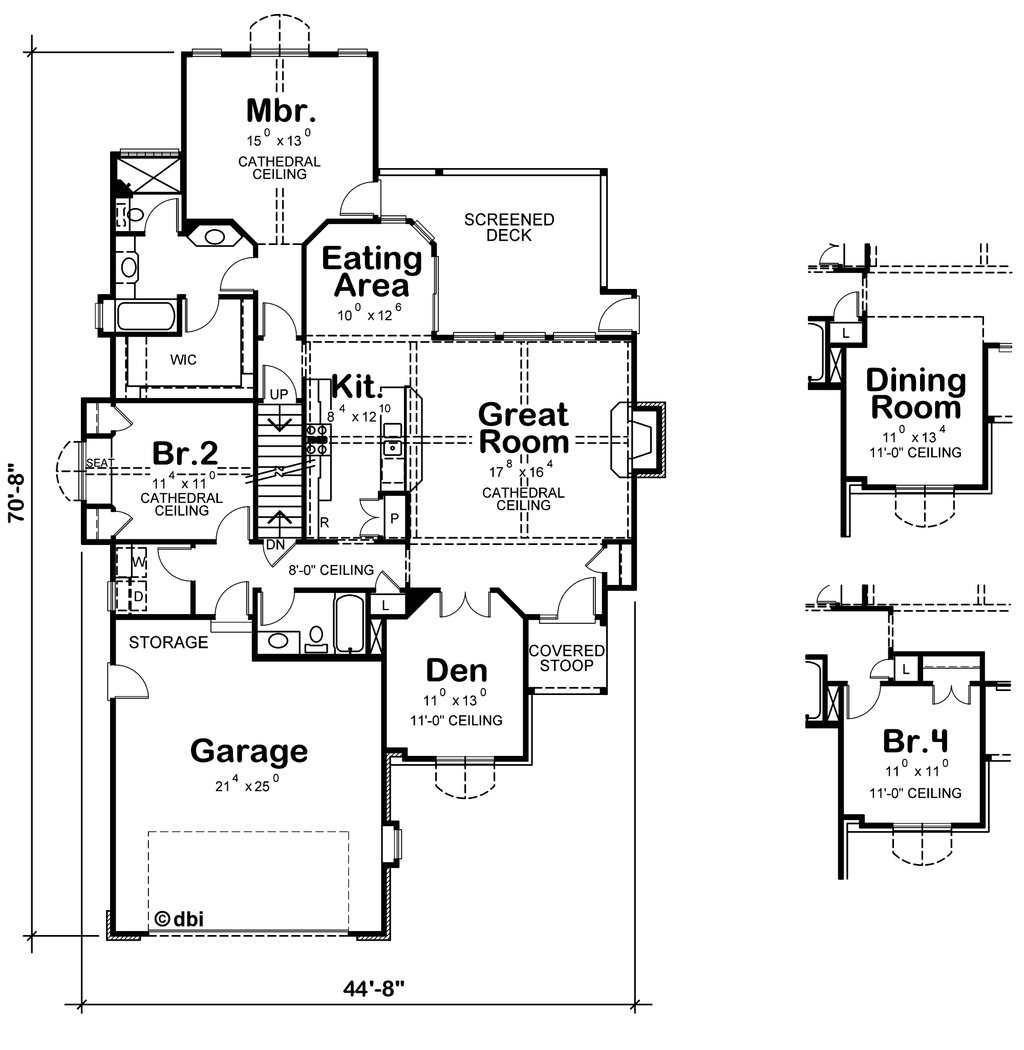

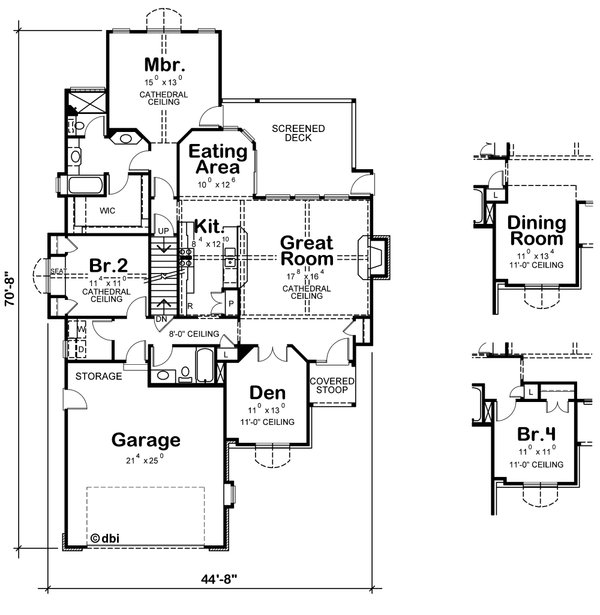

First Floor: 1619 sq/ft height 9'
Garage: 519 sq/ft

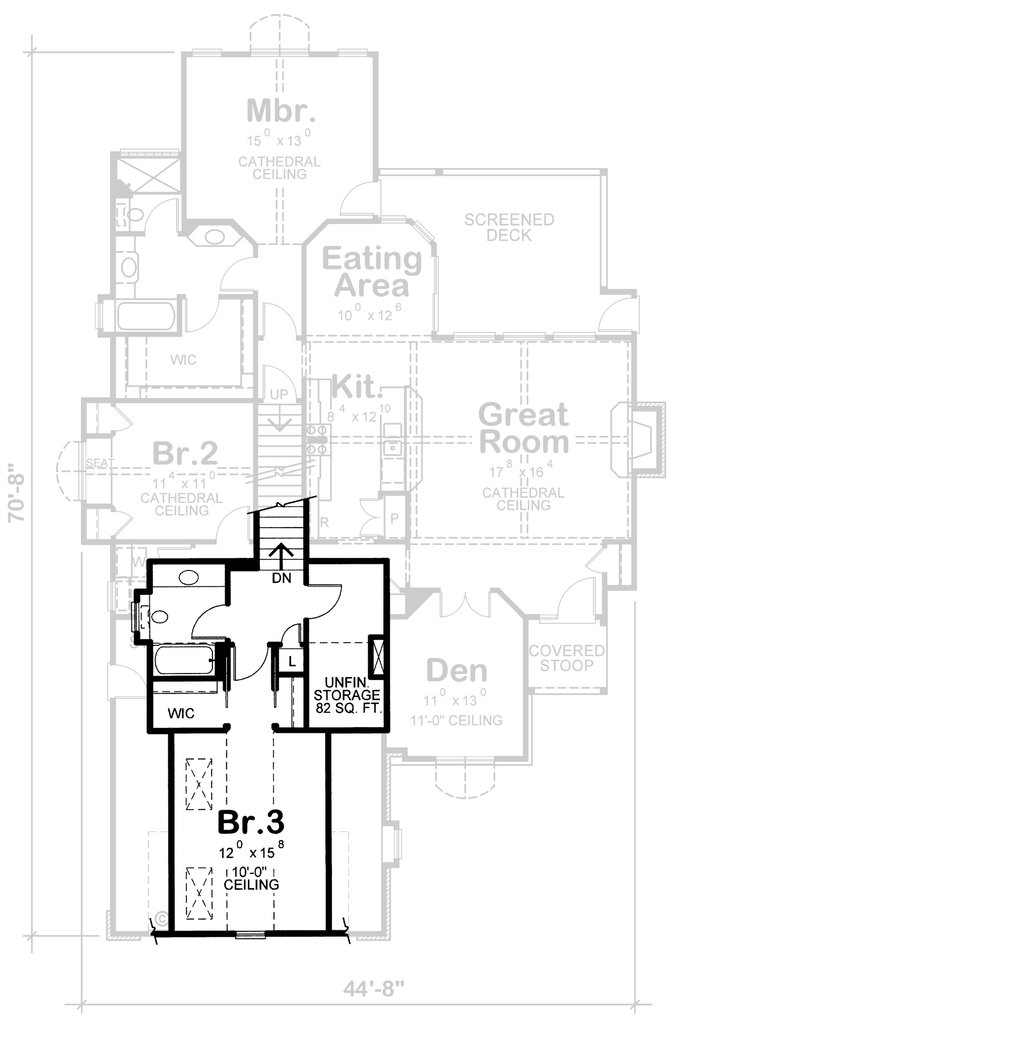

Second Floor: 372 sq/ft height 9'
Ceiling
Main Ceiling : 9'
Upper Ceiling Ft : 9'
Roof
Primary Pitch : 8:12
Roof Framing : Conventional
Roof Type : Shingle
Secondary Pitch : 12:12
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : 2"x6"
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Additional Room Features
Den Office Study Computer
Great Room Living Room
Storage Area
Sunroom
Lot Characteristics
Suited For Narrow Lot
Suited For View Lot
Outdoor Spaces
Screened Porch
Rooms
Bedroom 2:
124 sq/ft width 11' 4" x depth 11'
Bedroom 3:
188 sq/ft width 12' x depth 15' 8"
Bedroom 4:
121 sq/ft width 11' x depth 11'
Breakfast Room:
125 sq/ft width 10' x depth 12' 6"
Den/Office or Bedroom 1:
143 sq/ft width 11' x depth 13'
Dining Room:
146 sq/ft width 11' x depth 13' 4"
Game Room:
259 sq/ft width 16' 5" x depth 15' 10"
Garage:
533 sq/ft width 21' 4" x depth 25'
Gathering Room:
174 sq/ft width 10' 8" x depth 16' 4"
Kitchen:
106 sq/ft width 8' 4" x depth 12' 10"
Master Bedroom:
195 sq/ft width 15' x depth 13'
What's Included In This Plan Set
- Cover Page: Front elevation and informative reference sections including: general notes and design criteria
- Elevations: Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are noted and an aerial view of the roof is provided, showing all hips, valleys and ridges.
- Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. Shows the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above. Alternate foundations are available for a fee.
- Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.
- Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.
- Elevations: Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations. Not included with all plans, please call for details.
- Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall and stair sections are provided to further explain construction of these areas.
Plan Set
$1105.00
$1605.00
$1790.00
$2290.00
Foundation
$0.00
$295.00
$295.00
$390.00
Framing
$0.00
$295.00
Additional Options
$295.00
$250.00
$165.00
$39.00
$165.00
$195.00
$500.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
