PLAN 20-1773
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 46'
Height : 26' 7"
Width : 70'
Area
Bonus: 381 sq/ft height 8'
First Floor: 1904 sq/ft height 9'
Garage: 768 sq/ft height 9'
Porch: 102 sq/ft
Second Floor: 747 sq/ft height 8'
Ceiling
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : 2"x4"
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Loft
Mud Room
Storage Area
Garage Features
Oversized Garage
Outdoor Spaces
Balcony
Covered Front Porch
Rooms
Bedroom 2:
143 sq/ft width 11' x depth 13'
Bedroom 3:
140 sq/ft width 11' 8" x depth 12'
Bedroom 4:
140 sq/ft width 11' 8" x depth 12'
Den:
159 sq/ft width 12' x depth 13' 4"
Dining Room:
172 sq/ft width 11' 6" x depth 15'
Family Room:
300 sq/ft width 20' x depth 15'
Garage:
741 sq/ft width 31' 4" x depth 23' 8"
Kitchen:
171 sq/ft width 11' 5" x depth 15'
Master Bedroom:
208 sq/ft width 13' x depth 16'
What's Included In This Plan Set
- Cover Page: Front elevation and informative reference sections including: general notes and design criteria

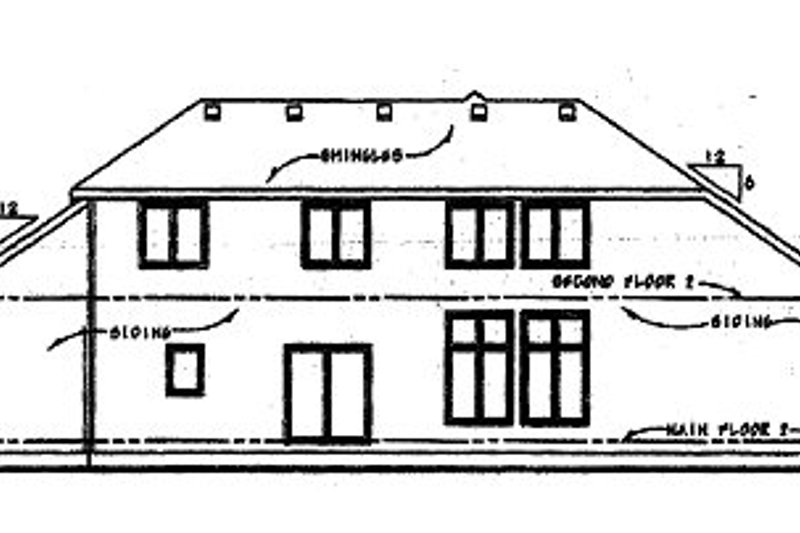

- Elevations: Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are noted and an aerial view of the roof is provided, showing all hips, valleys and ridges.
- Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. Shows the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above. Alternate foundations are available for a fee.

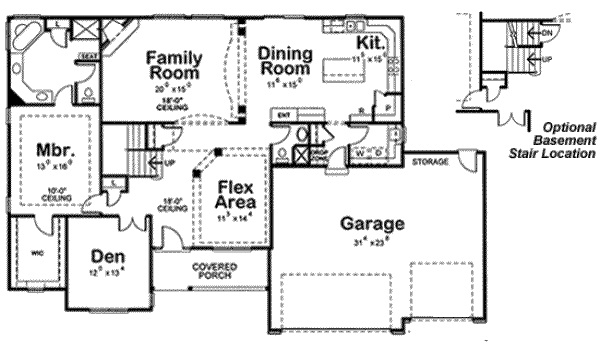

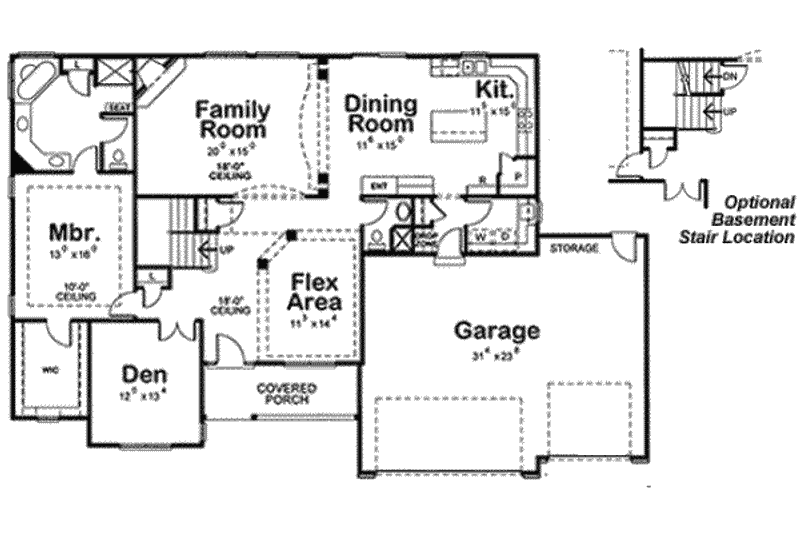

- Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.

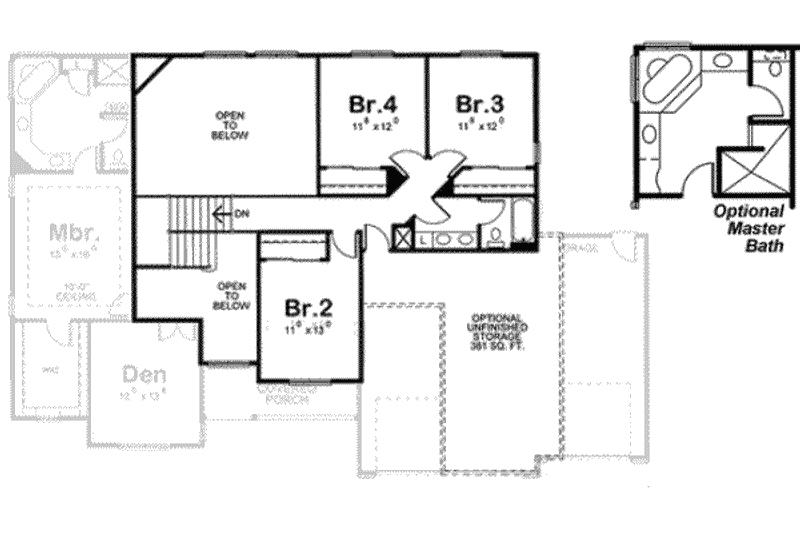

- Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.
- Elevations: Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations. Not included with all plans, please call for details.
- Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall and stair sections are provided to further explain construction of these areas.
Plan Set
$1024.25
$1449.25
$1674.50
$2099.50
Foundation
$0.00
$250.75
$250.75
$331.50
Framing
$0.00
$250.75
Additional Options
$250.75
$212.50
$140.25
$33.15
$140.25
$165.75
$425.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
