Plan Description

This mediterranean design floor plan is 4100 sq ft and has 3 bedrooms and 4 bathrooms.

Floor Plans

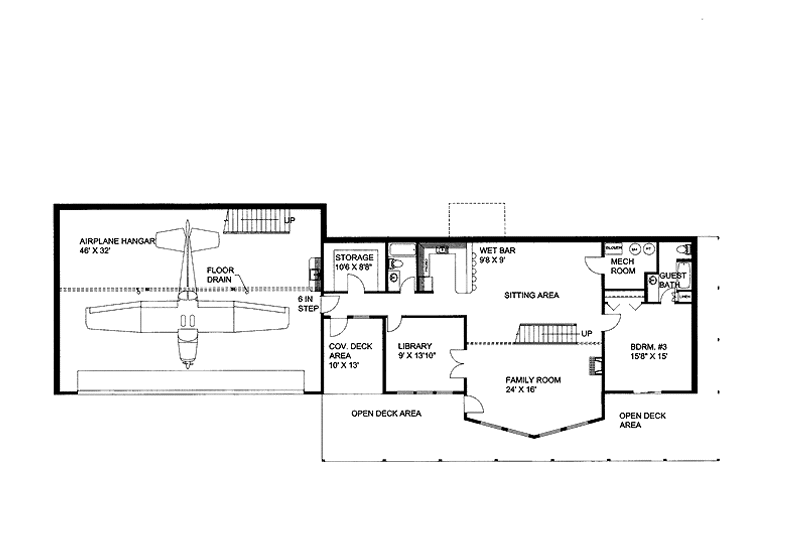

Floor Plan - Lower Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

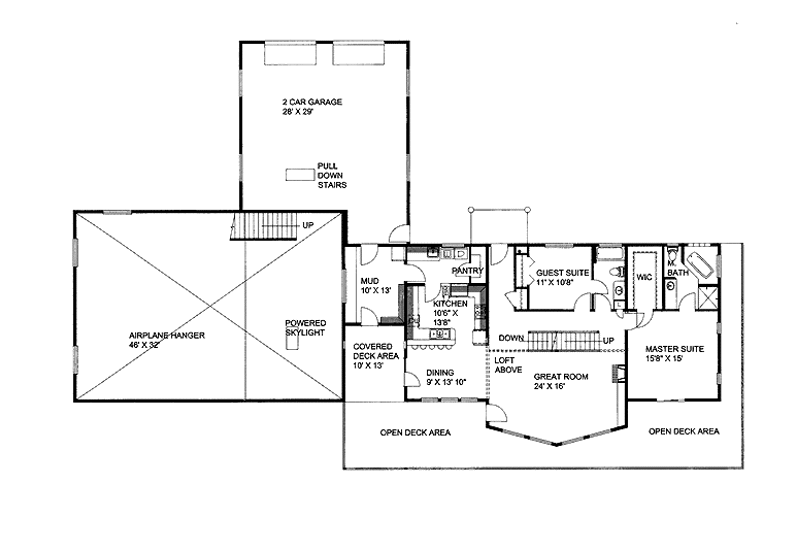

Floor Plan - Main Floor

Reverse

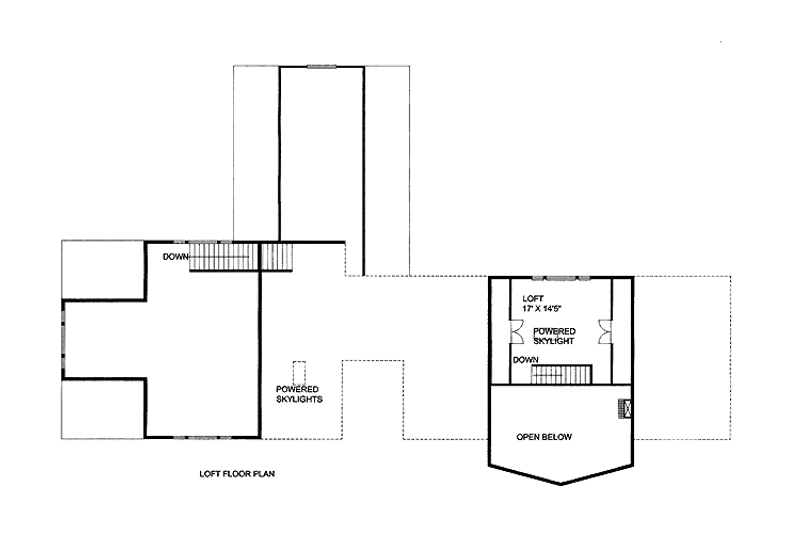

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 72'

Height : 35' 5"

Width : 114'

Area

Basement Living: 1885 sq/ft

First Floor: 1885 sq/ft

Second Floor: 330 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 10:12

Roof Framing : Truss

Exterior Wall Framing

Exterior Wall Finish : Siding

Framing : Wood - 2x6

Bedroom Features

Formal Dining Room

Guest Suite

Main Floor Master Bedroom

Walk In Closet

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Great Room Living Room

Loft

Outdoor Spaces

Balcony

Rooms

Bedroom 3:

235 sq/ft width 15' 8" x depth 15'

Dining Room:

124 sq/ft width 9' x depth 13' 10"

Family Room:

384 sq/ft width 24' x depth 16'

Garage:

812 sq/ft width 28' x depth 29'

Great Room:

384 sq/ft width 24' x depth 16'

Guest Suite:

117 sq/ft width 11' x depth 10' 8"

Kitchen:

143 sq/ft width 10' 6" x depth 13' 8"

Library:

124 sq/ft width 9' x depth 13' 10"

Master Suite:

235 sq/ft width 15' 8" x depth 15'

Mud Room:

130 sq/ft width 10' x depth 13'

Storage:

91 sq/ft width 10' 6" x depth 8' 8"

Wet Bar:

87 sq/ft width 9' 8" x depth 9'
