PLAN 1017-103

Photographs may show modified designs.

House Blueprint - Mediterranean Exterior - Front Elevation Plan #1017-103

House Blueprint - Mediterranean Floor Plan - Main Floor Plan #1017-103

House Blueprint - Mediterranean Floor Plan - Upper Floor Plan #1017-103

Jump to:
All (4)
Exterior (2)
Floor plans (2)

Get Personalized Help

Home > Style > Mediterranean House Plans

Key Specs

4483
sq ft

4
Beds

4.5
Baths

2
Floors

3
Garages

Select Plan Set Options

What's included?

Additional options

Additional Construction Sets

$90.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Subtotal

$1800.00

Also order by phone: 1-866-445-9085

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-866-445-9085

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

are Only $4.99
with Code CTB2025 (limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost To Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 1017-103

Home > Style > Mediterranean House Plans

Key Specs

4483
sq ft

4
Beds

4.5
Baths

2
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.

Modify This Plan

Plan Description

This plan is an eye-cathcing Mediterranean style home plan designed for a rear-view oriented homesite with pocketed doors and mitered glass allowing the home to be flooded with light. Upon entry from the foyer, you will find a spacious dining room and a very large living room with a stone fireplace and a wall of glass allowing unobstructed views across the pool and out onto sunset bay views. These are just a few highlights that make this house plan a perfect design for waterfront homesites.

Floor Plans

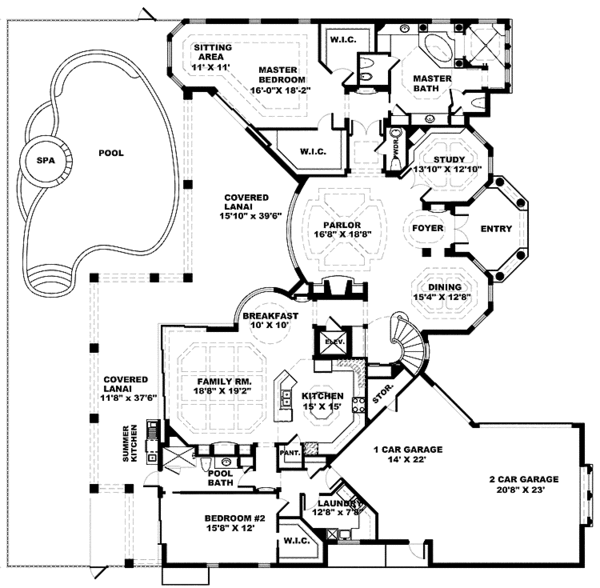

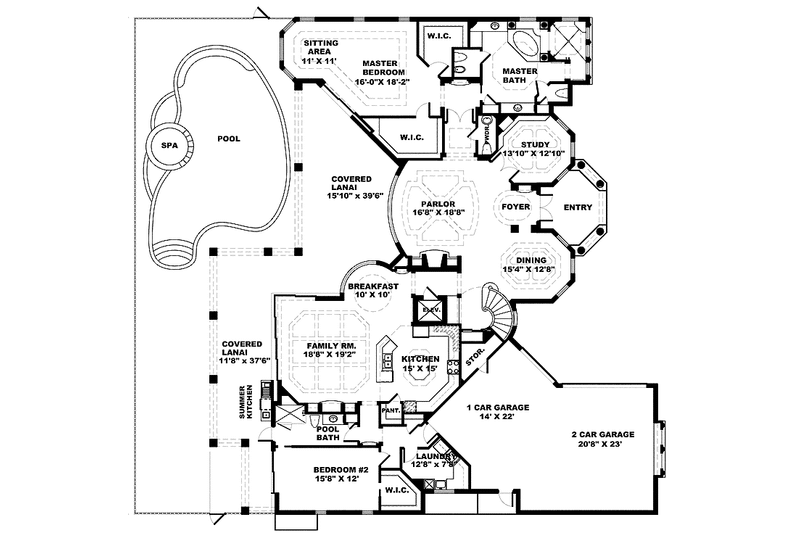

Floor Plan - Main Floor

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

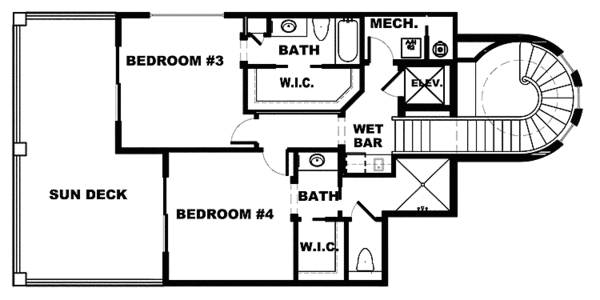

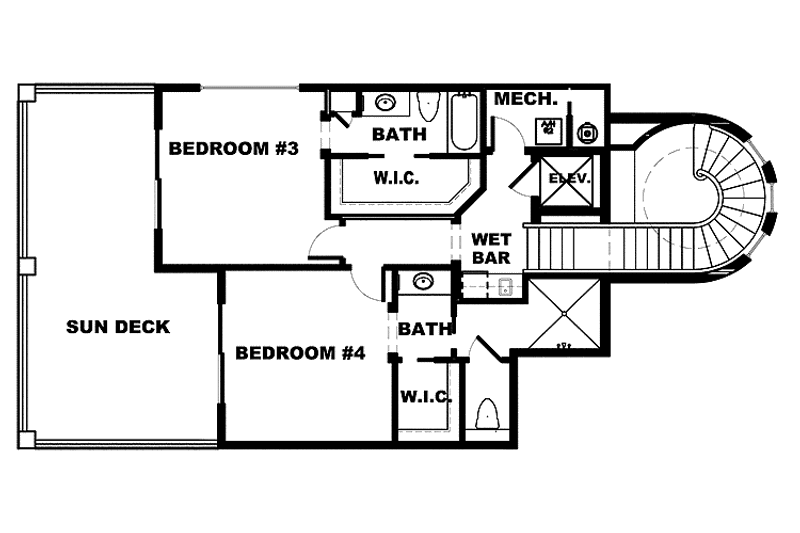

Floor Plan - Upper Floor

Full Specs & Features

Dimension

Depth : 86'

Height : 34' 10"

Width : 94'

Area

First Floor: 3667 sq/ft

Garage: 1022 sq/ft

Second Floor: 816 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 5:12

Roof Framing : Truss

Roof Type : Clay Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : Block

Bedroom Features

Formal Dining Room

Formal Living Room / Parlor

Main Floor Master Bedroom

Walk In Closet

Kitchen Features

Kitchenette Wet Bar

Additional Room Features

Den Office Study Computer

Master Sitting Area

Outdoor Spaces

Courtyard

Covered Front Porch

Deck

Wheelchair Adaptable

Rooms

Bedroom 2:

188 sq/ft width 15' 8" x depth 12'

Breakfast:

100 sq/ft width 10' x depth 10'

Dining Room:

194 sq/ft width 15' 4" x depth 12' 8"

Family Room:

357 sq/ft width 18' 8" x depth 19' 2"

Garage:

475 sq/ft width 20' 8" x depth 23'

Kitchen:

225 sq/ft width 15' x depth 15'

Master Suite:

272 sq/ft width 15' x depth 18' 2"

Parlor:

311 sq/ft width 16' 8" x depth 18' 8"

Study:

177 sq/ft width 13' 10" x depth 12' 10"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Questions? Call 1-866-445-9085

Plan Set

CAD Set:
$1800.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

PDF Set:
$1800.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set:
$1800.00

For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

Foundation

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Framing

Block:
$0.00

Concrete Block Exterior Walls (Upper Levels may be wood-framed)

Additional Options

Additional Construction Sets:
$90.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
