PLAN 1017-1

Photographs may show modified designs.

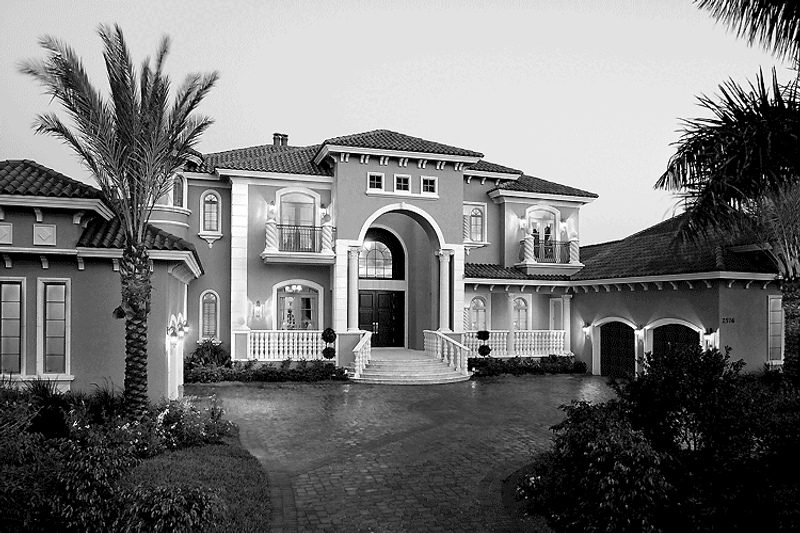

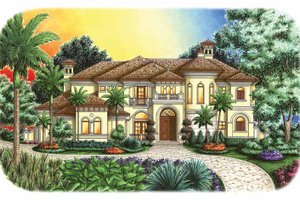

House Blueprint - Mediterranean Exterior - Front Elevation Plan #1017-1

House Blueprint - Mediterranean Exterior - Rear Elevation Plan #1017-1

House Blueprint - Mediterranean Interior - Bathroom Plan #1017-1

House Blueprint - Mediterranean Interior - Other Plan #1017-1

House Blueprint - Mediterranean Interior - Dining Room Plan #1017-1

House Blueprint - Mediterranean Interior - Family Room Plan #1017-1

House Blueprint - Mediterranean Interior - Kitchen Plan #1017-1

House Blueprint - Mediterranean Interior - Master Bedroom Plan #1017-1

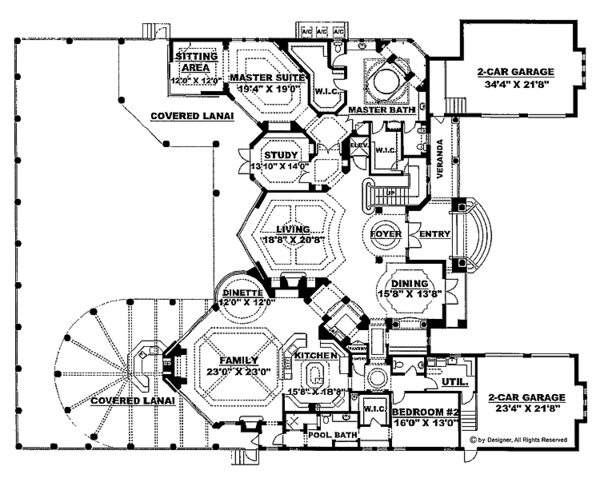

House Blueprint - Mediterranean Floor Plan - Main Floor Plan #1017-1

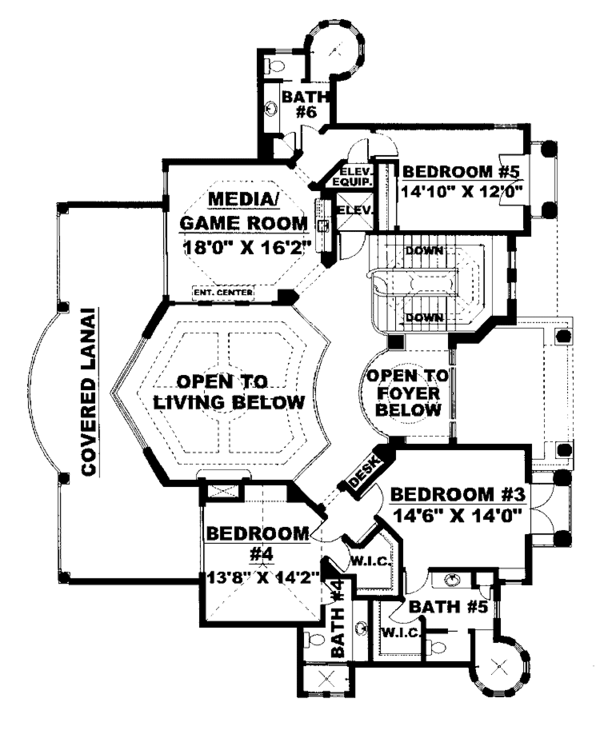

House Blueprint - Mediterranean Floor Plan - Upper Floor Plan #1017-1
