PLAN 45-616
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description
COMBAT THE HIGH COST OF BUILDING A HOME With the cost of building soaring to new highs, this delightful cottage is a solution to hold down those cost. The very simple footprint and roof pitch are both inexpensive and easy to construct with a minimum of materials. However, the detail of cleat shutters, fish scale gable shingles, window transoms and column brackets provide lots of charm and elegance. The large rocking chair size front and rear porches offer plenty of outdoor living options. Inside, the efficient use of floor space coverts every inch into useful living space by virtually eliminating hallways and other wasted space. The open design combination of the living, dining and kitchen provides an enormous open area to make this tiny home rival much larger homes. The kitchen includes the much sought after window over the sink plus an island with a raised eating bar. As a bonus, a full size pantry is located within the kitchen area. The utility is conveniently located with open access to the kitchen. Even the doors and windows have been restricted to a minimum in order to decrease cost. Despite the small footprint, both bed rooms are liberally sized and both have a large walk-in closet.
Floor Plans

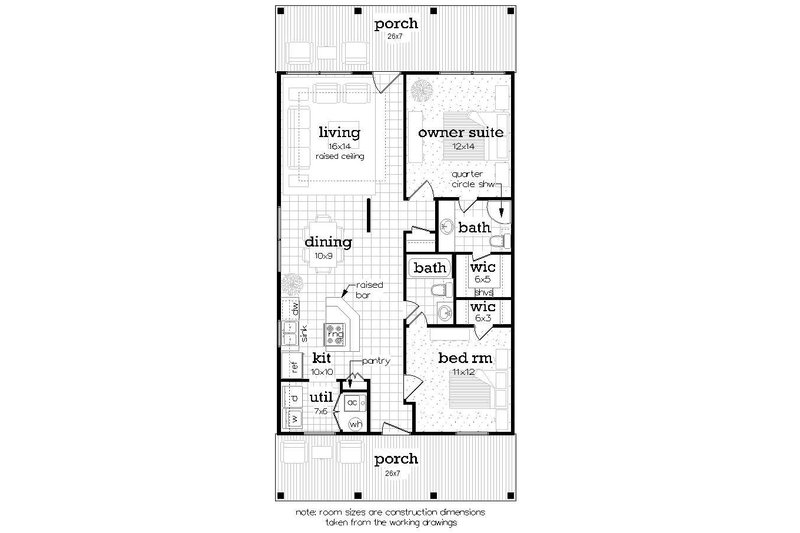

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 54'
Height : 19'
Width : 26'
Area
Main Floor : 1404 sq/ft
Porch : 364 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : Living room features a 10' - 6" high raised ceiling
Main Ceiling : 9'
Roof
Primary Pitch : 8:12
Roof Framing : STICK
Exterior Wall Framing
Exterior Wall Finish : board and batt pattern vinyl siding
Framing : 2X4
Insulation : R11
Bedroom Features
Lower Level Bedrooms
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Additional Room Features
Great Room Living Room
Main Floor Laundry
Lot Characteristics
Suited For Corner Lot
Suited For Narrow Lot
Suited For View Lot
Zero Lot Lines
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
More
Economical To Build
Empty Nester
Suited For Vacation Home
Energy Efficient Features
Energy Efficient Design
What's Included In This Plan Set
