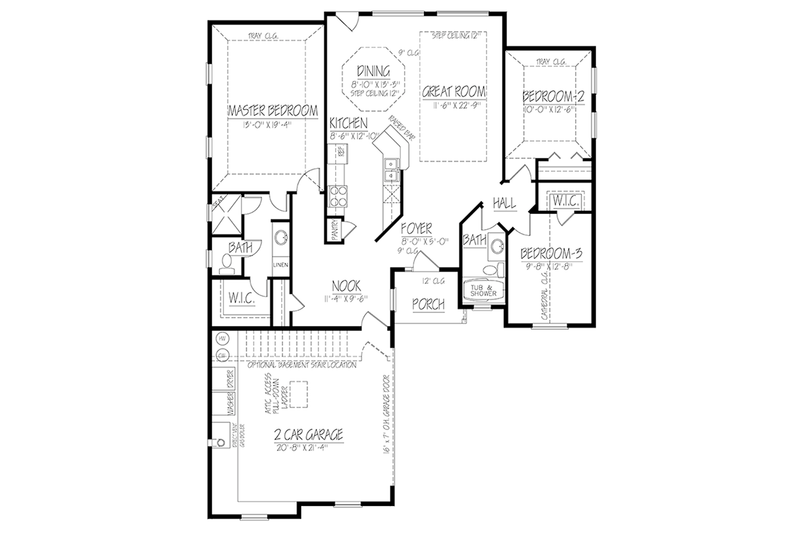

House Blueprint - Adobe / Southwestern Floor Plan - Main Floor Plan #1061-19

Jump to:
All (6)
Exterior (5)
Floor plans (1)

Get Personalized Help

Home > Style > Adobe / Southwestern House Plans

Key Specs

1540
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$300.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$100.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Additional Use License

$400.00

Allows you to build one more home for each additional license purchased.

Audio Video Design

$150.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$100.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Unlimited Use License

$800.00

Allows you to build this home as many times as you want.

Subtotal

$1175.00

Also order by phone: 1-866-445-9085

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-866-445-9085

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

are Only $4.99
with Code CTB2025 (limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost To Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 1061-19

Home > Style > Adobe / Southwestern House Plans

Key Specs

1540
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.

Modify This Plan

Plan Description

This adobe / southwestern design floor plan is 1540 sq ft and has 3 bedrooms and 2 bathrooms.

Floor Plans

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 58' 10"

Height : 18' 3"

Width : 45'

Area

First Floor: 1540 sq/ft

Garage: 457 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 7:12

Roof Framing : Conventional

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : Wood - 2x6

Bedroom Features

Formal Dining Room

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchenette Wet Bar

Additional Room Features

Great Room Living Room

Open Floor Plan

Storage Area

Vaulted / Cathedral Ceilings

Outdoor Spaces

Courtyard

Covered Front Porch

Rooms

Bedroom 2:

125 sq/ft width 10' x depth 12' 6"

Bedroom 3:

122 sq/ft width 9' 8" x depth 12' 8"

Covered Front Porch:

46 sq/ft

Dining Room:

117 sq/ft width 8' 10" x depth 13' 3"

Foyer:

40 sq/ft width 8' x depth 5'

Garage:

457 sq/ft width 20' 8" x depth 21' 4"

Great Room:

262 sq/ft width 11' 6" x depth 22' 9"

Kitchen:

109 sq/ft width 8' 6" x depth 12' 10"

Master Bedroom:

251 sq/ft width 13' x depth 19' 4"

Nook:

108 sq/ft width 11' 4" x depth 9' 6"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
