Key Specs
1606
sq ft
3
Beds
2
Baths
1
Floors
2
Garages
Phone: 1-866-445-9085
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 1061-15
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description

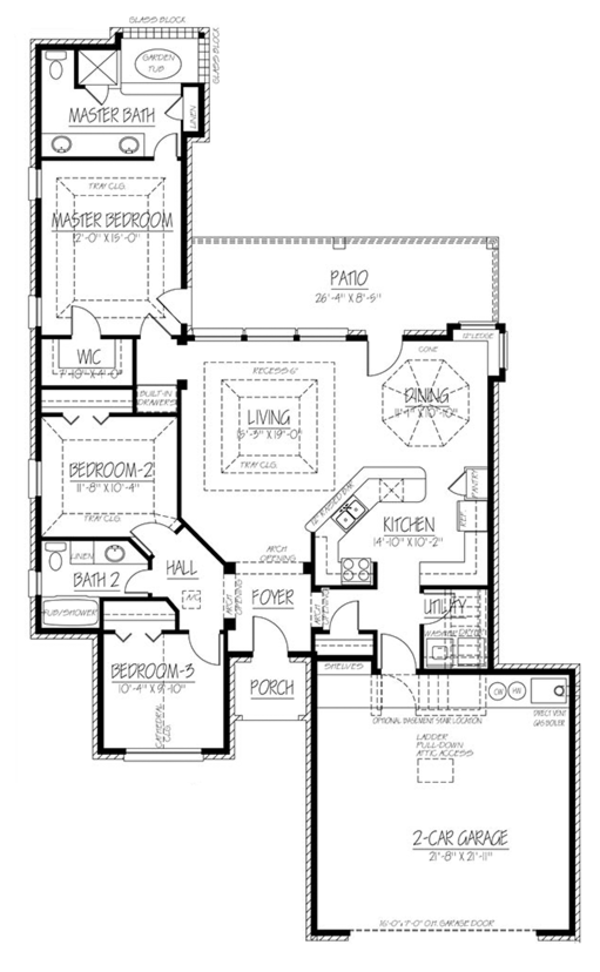

Floor Plans
Full Specs & Features
Dimension
Depth : 78' 5"
Height : 18' 5"
Width : 47' 2"
Area
First Floor: 1606 sq/ft
Garage: 558 sq/ft
Roof
Primary Pitch : 7:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x6
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Kitchenette Wet Bar
Additional Room Features
Great Room Living Room
Main Floor Laundry
Open Floor Plan
Vaulted / Cathedral Ceilings
Garage Features
Front Entry Garage
Outdoor Spaces
Courtyard
Covered Front Porch
Covered Rear Porch
Rooms
Bedroom 2:
121 sq/ft width 11' 8" x depth 10' 4"
Bedroom 3:
102 sq/ft width 10' 4" x depth 9' 10"
Covered Front Porch:
30 sq/ft
Covered Rear Porch:
211 sq/ft width 26' 4" x depth 8' 5"
Dining Room:
120 sq/ft width 11' 1" x depth 10' 10"
Garage:
558 sq/ft width 21' 8" x depth 21' 11"
Kitchen:
151 sq/ft width 14' 10" x depth 10' 2"
Living Room:
290 sq/ft width 15' 3" x depth 19'
Master Bedroom:
180 sq/ft width 12' x depth 15'
Master Closet:
31 sq/ft width 7' 10" x depth 4'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$1175.00
$1250.00
$2075.00
Foundation
$0.00
$350.00
$350.00
$350.00
Framing
$0.00
Additional Options
$300.00
$100.00
$400.00
$150.00
$39.00
$100.00
$800.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
