PLAN 1061-17

Home > Style > Ranch House Plans

Key Specs

1865
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.

Modify This Plan

Plan Description

A huge arched window and eye-catching quoins add classic curb appeal to this 1,865-square-foot home. Decorative ceiling treatments draw eyes up in the interior, with walk-in closets and built-ins as additional upscale touches. A large shower, corner tub, two sinks, and a walk-in closet create an oasis in the master suite, with a cushioned seat providing a cozy nook in the sitting room/study. The kitchen's snack bar overlooks the living room and breakfast nook for an open feeling. Two spacious secondary bedrooms share a hall bath that includes linen storage.

Floor Plans

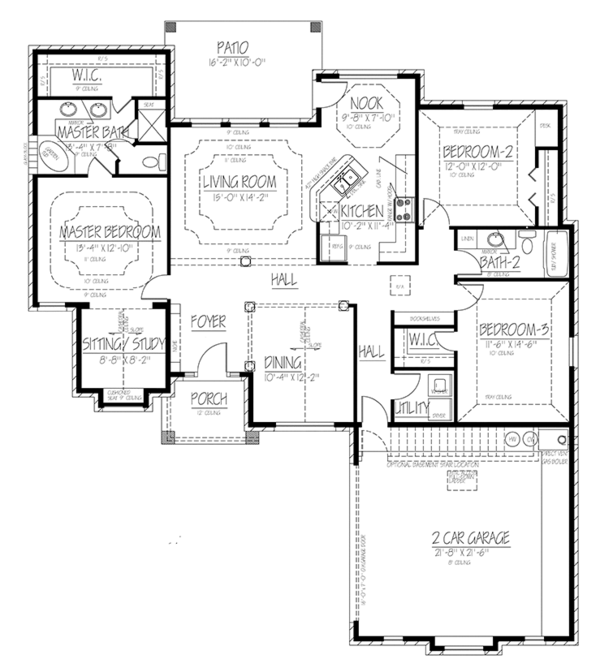

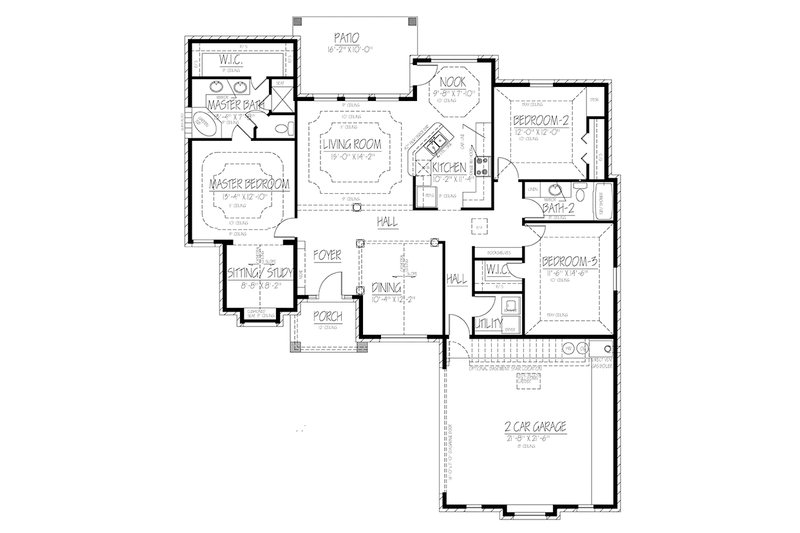

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 61' 8"

Height : 20' 2"

Width : 56' 6"

Area

First Floor: 1865 sq/ft

Garage: 542 sq/ft

Patio: 149 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 8:12

Roof Framing : Conventional

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Brick

Framing : Wood - 2x6

Bedroom Features

Formal Dining Room

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchenette Wet Bar

Additional Room Features

Great Room Living Room

Main Floor Laundry

Master Sitting Area

Open Floor Plan

Storage Area

Vaulted / Cathedral Ceilings

Outdoor Spaces

Courtyard

Covered Front Porch

Covered Rear Porch

Rooms

Bedroom 2:

144 sq/ft width 12' x depth 12'

Bedroom 3:

167 sq/ft width 11' 6" x depth 14' 6"

Covered Front Porch:

55 sq/ft

Covered Rear Patio:

149 sq/ft width 16' 2" x depth 10'

Dining:

126 sq/ft width 10' 4" x depth 12' 2"

Garage:

542 sq/ft width 21' 8" x depth 21' 6"

Kitchen:

115 sq/ft width 10' 2" x depth 11' 4"

Living Room:

213 sq/ft width 15' x depth 14' 2"

Master Bath:

102 sq/ft width 13' 4" x depth 7' 8"

Master Bedroom:

171 sq/ft width 13' 4" x depth 12' 10"

Master Sitting Area:

71 sq/ft width 8' 8" x depth 8' 2"

Nook:

76 sq/ft width 9' 8" x depth 7' 10"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Questions? Call 1-866-445-9085

Plan Set

5 Copy Set:
$1225.00

5 printed plan sets mailed to you.

PDF Set:
$1300.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set:
$2175.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Basement:
$350.00

Ideal for level lot, lower level of home partially or fully underground.

Crawlspace:
$350.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Daylight Basement:
$350.00

Ideal for sloping lot, lower level of home partially underground.

Framing

Wood 2x6:
$0.00

Wood 2x6 Exterior Walls

Additional Options

Right-Reading Reverse:
$300.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets:
$100.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Additional Use License:
$400.00

Allows you to build one more home for each additional license purchased.

Audio Video Design:
$150.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$100.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Unlimited Use License:
$800.00

Allows you to build this home as many times as you want.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
