Key Specs
2581
sq ft
4
Beds
3
Baths
1
Floors
2
Garages
Phone: 1-866-445-9085
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 1017-4
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description

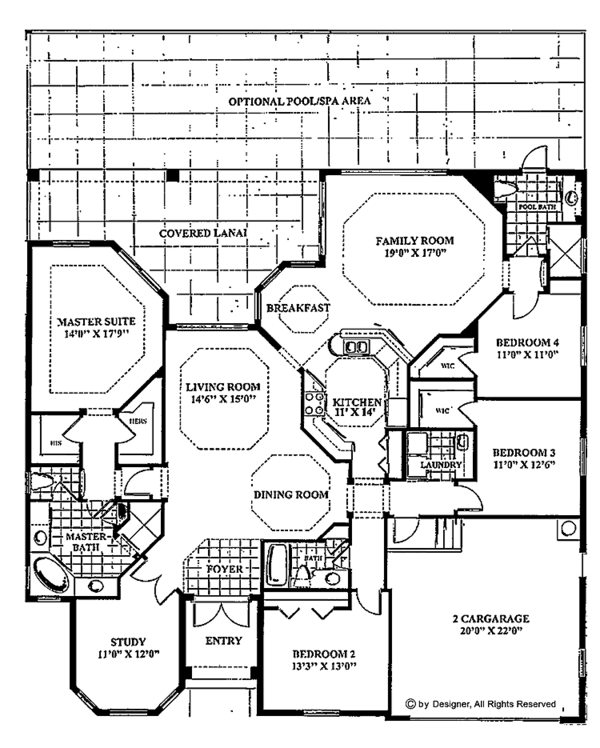

Floor Plans
Full Specs & Features
Dimension
Depth : 60'
Height : 25'
Width : 60'
Area
First Floor: 2581 sq/ft
Roof
Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : Tile
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Block
Bedroom Features
Formal Dining Room
Kitchen Features
Breakfast Nook
Additional Room Features
Family Room Keeping Room
Main Floor Laundry
Open Floor Plan
Outdoor Spaces
Courtyard
Rooms
3rd BR Closet:
35 sq/ft width 5' x depth 7'
Bathroom 2:
94 sq/ft width 9' 5" x depth 10'
Bathroom 3:
99 sq/ft width 9' x depth 11'
Bedroom 2:
144 sq/ft width 13' 4" x depth 10' 10"
Bedroom 2 Closet:
18 sq/ft width 2' x depth 9'
Bedroom 3:
137 sq/ft width 11' x depth 12' 6"
Bedroom 3 Closet:
18 sq/ft width 2' x depth 9'
Bedroom 4:
122 sq/ft width 11' x depth 11' 2"
Bedroom 4 Closet:
35 sq/ft width 5' x depth 7'
Breakfast Room:
74 sq/ft width 9' 4" x depth 8'
Dining Room:
129 sq/ft width 12' 4" x depth 10' 6"
Garage:
430 sq/ft width 20' x depth 21' 6"
Gathering Room:
319 sq/ft width 19' x depth 16' 10"
Kitchen:
122 sq/ft width 11' 2" x depth 11'
Laundry Room:
32 sq/ft width 6' 4" x depth 5' 2"
Living Room:
239 sq/ft width 14' 6" x depth 16' 6"
Master Bedroom:
248 sq/ft width 14' x depth 17' 9"
Master Closet:
71 sq/ft width 13' x depth 5' 6"
Study:
132 sq/ft width 12' x depth 11'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$1075.00
$1075.00
$1075.00
Foundation
$0.00
Framing
$0.00
Additional Options
$90.00
$100.00
$39.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
